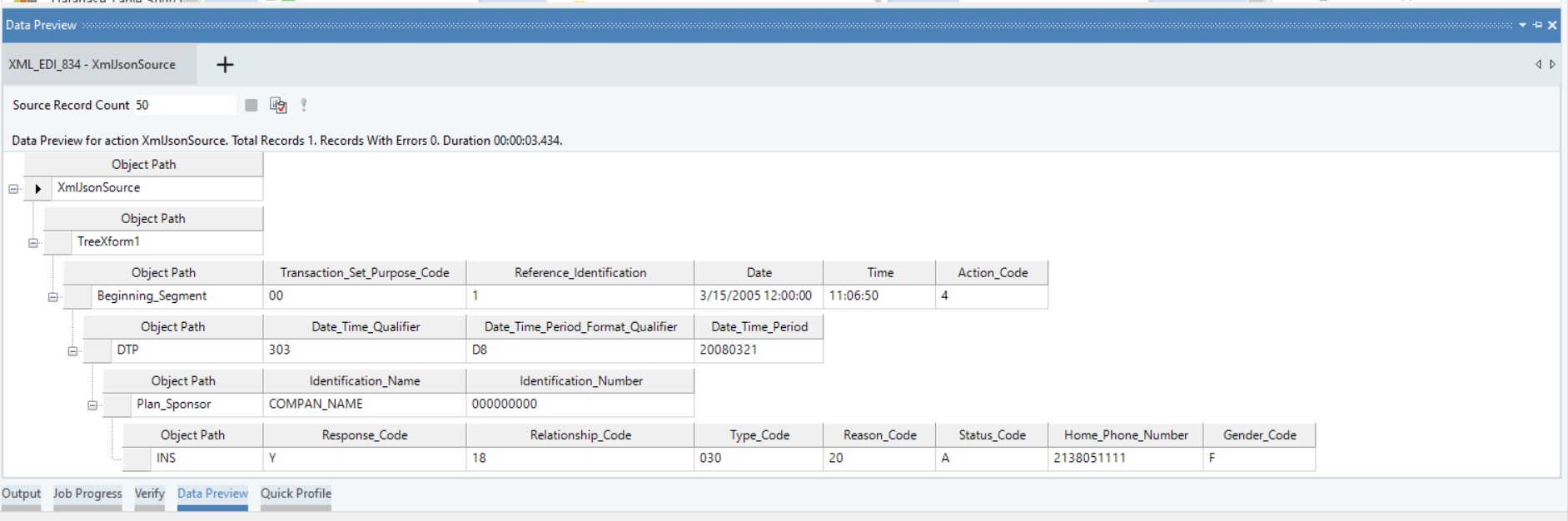

# EDI Message Serializer ### Overview An *EDI Message Serializer* is used to build an EDI Message in the required EDI partner profile before the message is written to a destination. The serializer helps ensure that the message follows the required format specified by the partner. In this document, we will learn how to use an *EDI Message Serializer* in Astera. ### Video {% embed url="" %} ### Use Case In this case, we will be building an EDI message using data available in an [*XML/JSON File Source*](https://documentation.astera.com/dataflows/sources/xml-json-file-source). ![](https://3083465318-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsR50Wa7EwZGlmPSAMkkf%2Fuploads%2Fb4KW0g1RpVVzLCds60tr%2F0.png?alt=media) This XML source represents the beginning segment of an X12 834 transaction set, providing information about a change in enrollment or benefits for an individual sponsored by a company.
We want to convert the hierarchical information, contained in multiple segments, into a single text stream. To perform this task, we will use the *EDI Message Serializer* object in Astera. ### Using EDI Message Serializer 1. To get the *EDI Message Serializer* object, go to *Toolbox > EDI > EDI Message Serializer* and drag-and-drop the object onto the designer. ![](https://3083465318-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsR50Wa7EwZGlmPSAMkkf%2Fuploads%2FjK2pZpIsIYQRedXgPfl4%2F2.gif?alt=media) 2. Right-click on the *EDI Message Serializer* object’s header and select *Properties* from the context menu. ![](https://3083465318-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsR50Wa7EwZGlmPSAMkkf%2Fuploads%2FqXa6yKEo0WLK382rdRag%2F3.png?alt=media) A configuration window will open, as shown below. ![](https://3083465318-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsR50Wa7EwZGlmPSAMkkf%2Fuploads%2F2adixEUWUPaTXr3nEtf2%2F4.png?alt=media) Let’s look at the properties on this window. * *Partner Profile ­*– Fetches all outbound maps based on the partner profile provided. * *Version\** – Allows users to specify the version they want to use to build their message. * *Message\** – Allows users to specify the type of message they want to send. * *Show Error Collection* – If selected, an error collection node will be added to the object, containing details of any errors in the message. * *Pretty Print* – If selected, when the output is previewed, it displays the text of the message in a more readable format for users. * *Include Envelope* – If selected, the object will include input and output nodes of metadata and control information for the message. * *Test Indicator* – Allows user to specify any testing/debugging/validation indicator that may be used in the header or control segment of the message. \* Options shown in this dropdown menu are limited to those defined in the partner profile. {% hint style="info" %} **Note:** You can create your trade partner profile by navigating to *New > File > EDI Trade Partner Profile* {% endhint %} Now, let’s configure the properties based on our use case. ![](https://3083465318-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsR50Wa7EwZGlmPSAMkkf%2Fuploads%2FWId79PbTgnm0o5eAUtd6%2F5.png?alt=media) Click *Next*. The *Layout Modifications* screen will open; here, users can choose to show, flatten, hide, sort, or add formulas to each node of the message.

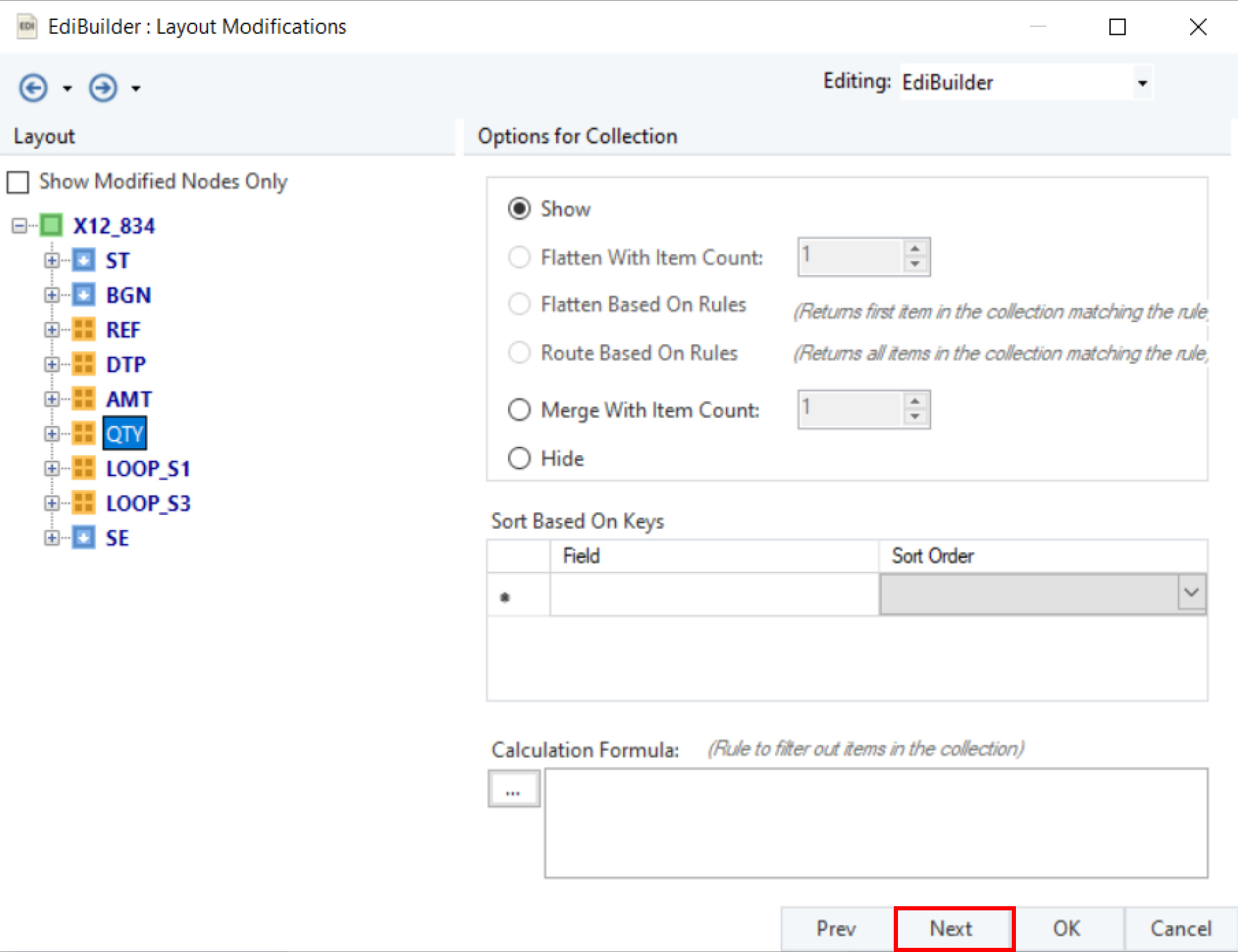

Let’s keep the default layout and click *Next*. The *Config Parameters* screen will open; here, we can configure and define a parameter for the *Trade Partner Profile* file. Use of Parameters eliminates the process of inserting hardcoded values and provides simplification in the deployment of flows. If the parameters are left empty, the default values defined at the *Properties* window are assigned for use. ![](https://3083465318-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsR50Wa7EwZGlmPSAMkkf%2Fuploads%2FHiqTywi9vYJeBd19WIgp%2F7.png?alt=media) Now, click *OK,* to proceed further. 3. Map the fields of the *XML/JSON File Source* object onto the *EDI Message Serializer* object’s fields. ![](https://3083465318-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsR50Wa7EwZGlmPSAMkkf%2Fuploads%2FRc3RxhMFb46cN14PG7m5%2F8.png?alt=media) 4. Right-click on the object’s header and select *Preview Output*. ![](https://3083465318-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsR50Wa7EwZGlmPSAMkkf%2Fuploads%2FJT4O607064ueoAZY1CGR%2F9.png?alt=media) You can view the data through the *Data Preview* window. ![](https://3083465318-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsR50Wa7EwZGlmPSAMkkf%2Fuploads%2F7DthTc69au7XXYpzGeD8%2F10.png?alt=media) Hover over the *Text* field and you will see the serialized EDI message. To validate and store the serialized output*,* we must write it to an EDI Destination File. 5. Let’s drag-and-drop an *EDI Destination File* object from the Toolbox and auto-map the metadata fields along with the *Text* field onto it. ![](https://3083465318-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsR50Wa7EwZGlmPSAMkkf%2Fuploads%2F8QP8jq16IYcdV6RXXxS6%2F11.gif?alt=media) Let’s configure the *Properties* of the destination object and click *OK.* ![](https://3083465318-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsR50Wa7EwZGlmPSAMkkf%2Fuploads%2F0KxRkliFcCNtYEGupn7a%2F12.png?alt=media) The Dataflow is now ready. By running this Dataflow, you can now create an EDI destination file containing the serialized EDI message. ![](https://3083465318-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsR50Wa7EwZGlmPSAMkkf%2Fuploads%2Fcmorj5MMmADATFXkib8J%2F13.png?alt=media) This is how an *EDI Message Serializer* object can be used to build an EDI message in Astera.
