Astera Data Stack
Version 9
Version 9
  • Welcome to Astera Data Stack Documentation
  • Release Notes
    • Astera 9.0 - Release Notes
  • Setting Up
    • System Requirements
    • Product Architecture
    • Installing Client and Server Applications
    • Connecting to a Astera Server using Lean Client
    • How to Connect to a Different Astera Server from the Lean Client
    • How to Set up a Server Certificate (.pfx) File in a New Environment
    • How to Build a Cluster Database and Create a Repository
    • How to Login from Lean Client
    • Licensing Model in Astera 9
    • User Roles and Access Control
    • Offline Activation of Astera Data Stack
  • Dataflows
    • Sources
      • Data Providers and File Formats Supported in Astera Data Stack
      • Setting Up Sources
      • Excel Workbook Source
      • COBOL File Source
      • Database Table Source
      • Delimited File Source
      • File System Items Source
      • Fixed Length File Source
      • Email Source
      • Report Source
      • SQL Query Source
      • XML/JSON File Source
      • PDF Form Source
    • Transformations
      • Introducing Transformations
      • Aggregate Transformation
      • Constant Value Transformation
      • Denormalize Transformation
      • Distinct Transformation
      • Expression Transformation
      • Filter Transformation
      • Join Transformation
      • List Lookup Transformation
      • Merge Transformation
      • Normalize Transformation
      • Passthru Transformation
      • Reconcile Transformation
      • Route Transformation
      • Sequence Generator
      • Sort Transformation
      • Sources as Transformations
      • Subflow Transformation
      • Switch Transformation
      • Tree Join Transformation
      • Tree Transform
      • Union Transformation
      • Data Cleanse Transformation
      • File Lookup Transformation
      • SQL Statement Lookup
      • Database Lookup
    • Destinations
      • Setting Up Destinations
      • Database Table Destination
      • Delimited File Destination
      • Excel Workbook Destination
      • Fixed Length File Destination
      • SQL Statement Destination
      • XML File Destination
    • Data Logging and Profiling
      • Creating Data Profile
      • Creating Field Profile
      • Data Quality Mode
      • Using Data Quality Rules in Astera
      • Record Level Log
    • Database Write Strategies
      • Data Driven
      • Source Diff Processor
      • Database Diff Processor
      • Dimension Loader - Database Write
    • Text Processors
      • Delimited Parser
      • Delimited Serializer
      • Language Parser
      • Fixed Length Parser
      • Fixed Length Serializer
      • XML/JSON Parser
      • XML JSON Serializer
    • Visualizations
      • Basic Plots
      • Distribution Plots
  • Workflows
    • What are Workflows?
    • Creating Workflows in Astera
    • Decision Task
    • EDI Acknowledgment Task
    • File System Task
    • File Transfer Task
    • OR Task
    • Run Dataflow Task
    • Run Program Task
    • Run SQL File Task
    • Run SQL Script Task
    • Run Workflow Task
    • Send Mail Task
    • Workflows with a Dynamic Destination Path
    • Customizing Workflows With Parameters
    • GPG-Integrated File Decryption in Astera
  • Subflows
    • Using Subflows in Astera
  • DATA MODEL
    • Creating a Data Warehousing Project
    • Data Models
      • Introducing Data Models
      • Opening a New Data Model
      • Data Modeler - UI Walkthrough
      • Reverse Engineering an Existing Database
      • Creating a Data Model from Scratch
      • General Entity Properties
      • Creating and Editing Relationships
      • Forward Engineering
      • Verifying a Data Model
    • Dimensional Modelling
      • Introducing Dimensional Models
      • Converting a Data Model to a Dimensional Model
      • Fact Entities
      • Dimension Entities
      • Date and Time Dimension
      • Verifying a Dimensional Model
    • Documentation
      • Generating Technical and Business Documentation for Data Models
      • Lineage and Impact Analysis
    • Deployment and Usage
      • Deploying a Data Model
      • Validate Metadata and Data Integrity
      • Using Astera Data Models in ETL Pipelines
      • Connecting an Astera Data Model to a Third Party Visualization Tool
  • Functions
    • Introducing Function Transformations
    • Custom Functions
    • Logical
      • Coalesce (Any value1, Any value2)
      • IsNotNull (AnyValue)
      • IsRealNumber (AnyValue)
      • IsValidSqlDate (Date)
      • IsDate (AnyValue)
      • If (Boolean)
      • If (DateTime)
      • If (Double)
      • Exists
      • If (Int64)
      • If (String)
      • IsDate (str, strformat)
      • IsInteger (AnyValue)
      • IsNullOrWhitespace (StringValue)
      • IsNullorEmpty (StringValue)
      • IsNull (AnyValue)
      • IsNumeric (AnyValue)
    • Conversion
      • GetDateComponents (DateWithOffset)
      • ParseDate (Formats, Str)
      • GetDateComponents (Date)
      • HexToInteger (Any Value)
      • ToInteger (Any value)
      • ToDecimal (Any value)
      • ToReal (Any value)
      • ToDate (String dateStr)
      • TryParseDate (String, UnknownDate)
      • ToString (Any value)
      • ToString (DateValue)
      • ToString (Any data, String format)
    • Math
      • Abs (Double)
      • Abs (Decimal)
      • Ceiling (Real)
      • Ceiling(Decimal)
      • Floor (Decimal)
      • Floor (Real)
      • Max (Decimal)
      • Max (Date)
      • Min (Decimal)
      • Min (Date)
      • Max (Real)
      • Max (Integer)
      • Min (Real)
      • Pow (BaseExponent)
      • Min (Integer)
      • RandomReal (Int)
      • Round (Real)
      • Round (Real Integer)
      • Round (Decimal Integer)
      • Round (Decimal)
    • Financial
      • DDB
      • FV
      • IPmt
      • IPmt (FV)
      • Pmt
      • Pmt (FV)
      • PPmt
      • PPmt (FV)
      • PV (FV)
      • Rate
      • Rate (FV)
      • SLN
      • SYD
    • String
      • Center (String)
      • Chr (IntAscii)
      • Asc (String)
      • AddCDATAEnvelope
      • Concatenate (String)
      • ContainsAnyChar (String)
      • Contains (String)
      • Compact (String)
      • Find (Int64)
      • EndsWith (String)
      • FindIntStart (Int32)
      • Extract (String)
      • GetFindCount (Int64)
      • FindLast (Int64)
      • GetDigits (String)
      • GetLineFeed
      • Insert (String)
      • IsAlpha
      • GetToken
      • IndexOf
      • IsBlank
      • IsLower
      • IsUpper
      • IsSubstringOf
      • Length (String)
      • LeftOf (String)
      • Left (String)
      • IsValidName
      • Mid (String)
      • PadLeft
      • Mid (String Chars)
      • LSplit (String)
      • PadRight
      • ReplaceAllSpecialCharsWithSpace
      • RemoveChars (String str, StringCharsToRemove)
      • ReplaceLast
      • RightAlign
      • Reverse
      • Right (String)
      • RSplit (String)
      • SplitStringMultipleRecords
      • SplitStringMultipleRecords (2 Separators)
      • SplitString (3 separators)
      • SplitString
      • SplitStringMultipleRecords (3 Separators)
      • Trim
      • SubString (NoOfChars)
      • StripHtml
      • Trim (Start)
      • TrimExtraMiddleSpace
      • TrimEnd
      • PascalCaseWithSpace (String str)
      • Trim (String str)
      • ToLower(String str)
      • ToProper(String str)
      • ToUpper (String str)
      • Substring (String str, Integer startAt)
      • StartsWith (String str, String value)
      • RemoveAt (String str, Integer startAt, Integer noofChars)
      • Proper (String str)
      • Repeat (String str, Integer count)
      • ReplaceAll (String str, String lookFor, String replaceWith)
      • ReplaceFirst (String str, String lookFor, String replaceWith)
      • RightOf (String str, String lookFor)
      • RemoveChars (String str, String charsToRemove)
      • SplitString (String str, String separator1, String separator2)
    • Date Time
      • AddMinutes (DateTime)
      • AddDays (DateTimeOffset)
      • AddDays (DateTime)
      • AddHours (DateTime)
      • AddSeconds (DateTime)
      • AddMonths (DateTime)
      • AddMonths (DateTimeOffset)
      • AddMinutes (DateTimeOffset)
      • AddSeconds (DateTimeOffset)
      • AddYears (DateTimeOffset)
      • AddYears (DateTime)
      • Age (DateTime)
      • Age (DateTimeOffset)
      • CharToSeconds (Str)
      • DateDifferenceDays (DateTimeOffset)
      • DateDifferenceDays (DateTime)
      • DateDifferenceHours (DateTimeOffset)
      • DateDifferenceHours (DateTime)
      • DateDifferenceMonths (DateTimeOffset)
      • DateDifferenceMonths (DateTime)
      • DatePart (DateTimeOffset)
      • DatePart (DateTime)
      • DateDifferenceYears (DateTimeOffset)
      • DateDifferenceYears (DateTime)
      • Month (DateTime)
      • Month (DateTimeOffset)
      • Now
      • Quarter (DateTime)
      • Quarter (DateTimeOffset)
      • Second (DateTime)
      • Second (DateTimeOffset)
      • SecondsToChar (String)
      • TimeToInteger (DateTime)
      • TimeToInteger (DateTimeOffset)
      • ToDate Date (DateTime)
      • ToDate DateTime (DateTime)
      • ToDateString (DateTime)
      • ToDateTimeOffset-Date (DateTimeOffset)
      • ToDate DateTime (DateTimeOffset)
      • ToDateString (DateTimeOffset)
      • Today
      • ToLocal (DateTime)
      • ToJulianDate (DateTime)
      • ToJulianDayNumber (DateTime)
      • ToTicks (Date dateTime)
      • ToTicks (DateTimeWithOffset dateTime)
      • ToUnixEpoc (Date dateTime)
      • ToUtc (Date dateTime)
      • UnixTimeStampToDateTime (Real unixTimeStamp)
      • UtcNow ()
      • Week (Date dateTime)
      • Week (DateTimeWithOffset dateTime)
      • Year (Date dateTime)
      • Year (DateTimeWithOffset dateTime)
      • DateToJulian (Date dateTime, Integer length)
      • DateTimeOffsetUtcNow ()
      • DateTimeOffsetNow ()
      • Day (DateTimeWithOffset dateTime)
      • Day (Date dateTime)
      • DayOfWeekStr (DateTimeWithOffset dateTime)
      • DayOfWeek (DateTimeWithOffset dateTime)
      • DayOfWeek (Date dateTime)
      • DateToJulian (DateTimeWithOffset dateTime, Integer length)
      • DayOfWeekStr (Date dateTime)
      • FromJulianDate (Real julianDate)
      • DayOfYear (Date dateTime)
      • DaysInMonth(Integer year, Integer month)
      • DayOfYear (DateTimeWithOffset dateTime)
      • FromUnixEpoc
      • FromJulianDayNumber (Integer julianDayNumber)
      • FromTicksUtc(Integer ticks)
      • FromTicksLocal(Integer ticks)
      • Hour (Date dateTime)
      • Hour (DateTimeWithOffset dateTime)
      • Minute (Date dateTime)
      • JulianToDate (String julianDate)
      • Minute (DateTimeWithOffset dateTime)
      • DateToIntegerYYYYMMDD (DateTimeWithOffset dateTime)
      • DateToIntegerYYYYMMDD (Date dateTime)
    • Files
      • AppendTextToFile (String filePath, String text)
      • CopyFile (String sourceFilePath, String destFilePath, Boolean overWrite)
      • CreateDateTime (String filePath)
      • DeleteFile (String filePath)
      • DirectoryExists (String filePath)
      • FileExists (String filePath)
      • FileLength (String filePath)
      • FileLineCount (String filePath)
      • GetDirectory (String filePath)
      • GetEDIFileMetaData (String filePath)
      • GetExcelWorksheets (String excelFilePath)
      • GetFileExtension (String filePath)
      • GetFileInfo (String filePath)
      • GetFileName (String filePath)
      • GetFileNameWithoutExtension (String filePath)
      • LastUpdateDateTime (String filePath)
      • MoveFile (String filePath, String newDirectory)
      • ReadFileBytes (String filePath)
      • ReadFileFirstLine (String filePath)
      • ReadFileText (String filePath)
      • ReadFileText (String filePath, String codePage)
      • WriteBytesToFile (String filePath, ByteArray bytes)
      • WriteTextToFile (String filePath, String text)
    • Date Time With Offset
      • ToDateTimeOffsetFromDateTime (dateTime String)
      • ToUtc (DateTimeWithOffset)
      • ToDateTimeOffsetFromDateTime
      • ToDateTimeOffset (String dateTimeOffsetStr)
      • ToDateTimeFromDateTimeOffset
    • GUID
      • NewGuid
    • Encoding
      • ToBytes
      • FromBytes
      • UrlEncode
      • UrlDecode
    • Regular Expressions
      • ReplaceRegEx
      • ReplaceRegEx (Integer StartAt)
    • TimeSpan
      • Minutes
      • Hours
      • Days
      • Milliseconds
    • Matching
      • Soundex
      • DoubleMetaphone
      • RefinedSoundex
  • Report Model
    • User Guide
      • Report Model Tutorial
    • Report Model Interface
      • Report Options
      • Report Browser
      • Data Regions in Report Models
      • Region Properties Panel
      • Pattern Properties
      • Field Properties Panel
    • Use Cases
      • Applying Pattern to Line
      • Auto Creating Data Regions and Fields
      • Auto Parsing
      • Connecting to Cloud Storage
      • Creating Multi Column Data Regions
      • Defining Region End Type as Specific Text and Regular Expression
      • Defining the Start Position of Data Fields
      • Floating Patterns and Floating Fields
      • How To Work With PDF Scaling Factor in a Report Model
      • Line Count
      • Pattern Count
      • Pattern is a Regular Expression
      • Using Comma Separated Values to Define Start Position
    • Auto Generate Layout (Beta)
      • Setting Up AGL in Astera
      • UI Walkthrough Auto Generation of Layout, Fields and Table
      • Using Auto Generation Layout, Auto Create Fields, and Auto Create Table (Beta)
    • Exporting Options
      • Exporting a Report Model
      • Exporting Report Model to A Dataflow
    • Miscellaneous
      • Importing Monarch Models
      • Microsoft Word and Rich Text Format Support
      • Working With Problematic PDF Files
  • API Flows
    • API Consumption
      • Consume
        • REST Connection
        • Making API Calls with the REST Client Object in Astera
        • REST API Browser
        • Method Operations
        • Pagination
      • Authorize
        • Open APIs - Configuration Details
        • Authorizing Facebook APIs in Astera
        • Authorizing Astera's Server APIs
        • Authorizing Avaza APIs in Astera
        • Authorizing Square API in Astera
        • Authorizing ActiveCampaign API in Astera
        • Authorizing QuickBooks’ API in Astera
        • Accessing Astera's Server APIs Through a Third Party Tool
        • Astera's Server API Documentation
  • Project Management
    • Project Management
      • Deployment
      • Server Monitoring and Job Management
      • Connecting to Source Control
      • Astera Project and Project Explorer
    • Job Scheduling
      • Scheduling Jobs on the Server
      • Job Monitor
  • Use Cases
    • End-to-End Use Cases
      • Data Integration
        • Using Astera Data Stack to Create and Orchestrate an ETL Process for Partner Onboarding
      • Data Warehousing
        • Building a Data Warehouse - A Step By Step Approach
      • Data Extraction
        • Reusing The Extraction Template for Similar Layout Files
  • Connectors
    • Setting Up IBM DB2/iSeries Connectivity in Astera
    • Connecting to SAP HANA Database
    • Connecting to MariaDB Database
    • Connecting to Salesforce Database
    • Connecting to Salesforce - Legacy Database
    • Connecting to Vertica Database
    • Connecting to Snowflake Database
    • Connecting to Amazon Redshift Database
    • Connecting to Amazon Aurora Database
    • Connecting to Google Cloud SQL in Astera
    • Connecting to MySQL Database
    • Connecting to PostgreSQL in Astera
    • Connecting to Netezza Database
    • Connecting to Oracle Database
    • Connecting to Microsoft Azure Databases
    • Connecting to Amazon RDS Databases
  • Miscellaneous
    • Using Dynamic Layout Template Mapping in Astera
    • Synonym Dictionary File
    • SmartMatch Feature
    • Role Based Access Control in Astera
    • Updating Your License in Astera
    • Using Output Variables in Astera
    • Connection Vault
    • Safe Mode
    • Using the Data Source Browser in Astera
    • Pushdown Mode
    • Cloud Deployment
      • Deploying Astera on Microsoft Azure Cloud
      • Deploying Astera on Oracle Cloud
      • Deploying Astera on Amazon Web Services
    • Context Information
  • Best Practices
    • Overview of Cardinality in Data Modeling
    • Cardinality Errors FAQs
    • Astera Best Practices - Dataflows
Powered by GitBook
On this page
  • Video
  • Dataflows
  • How to Use Astera Data Models in Dataflows
  • Fact Loader & Dimension Loader
  1. DATA MODEL
  2. Deployment and Usage

Using Astera Data Models in ETL Pipelines

PreviousValidate Metadata and Data IntegrityNextConnecting an Astera Data Model to a Third Party Visualization Tool

Last updated 1 year ago

© Copyright 2025, Astera Software

A deployed data model is available as a virtual database that can be used in ETL pipelines. In Astera Data Stack, you can use the tables in these virtual databases as sources or destinations in dataflows, which represent the ETL or ELT functionality of the product.

Video

Dataflows

The dataflow toolbox contains an extensive variety of objects that can be used as part of an ETL pipeline via the drag and drop interface of the dataflow designer. These include sources, destinations, transformations, and numerous other object types.

You’ll notice a section titled Data Warehouse in the toolbox. This contains the Fact Loader and Dimension Loader objects, which can be used to load data into fact and dimension tables, respectively. We will discuss these objects in further detail at a later stage in the article.

Here is an example of a simple ETL pipeline designed in a dataflow:

In this dataflow, we’ve done the following:

  • Extracted data from a database table using the Database Table Source object.

  • Transformed the incoming dataset by filtering out certain records using the Filter Transformation object.

  • Loaded the transformed dataset into an Excel worksheet using the Excel Workbook Destination object.

How to Use Astera Data Models in Dataflows

Multiple objects in the dataflow toolbox can be used to access data models that have been deployed on the server. These include:

  • Database Table Source

  • Data Model Query Source

  • SQL Query Source

  • Fact Loader

  • Dimension Loader

Of these, the first three can be used as source objects and the other two can be used as destination objects. However, the Database Connection screen in the Properties configuration window is common in all of these objects. Let’s take a look at this Database Table Source object as an example.

To access the properties of an object, right-click on the object header and select Properties from the context menu.

A configuration window will appear on your screen.

The Database Connection screen on this window can be used to access the virtual databases representing the deployed data models.

The Data Provider dropdown menu features a comprehensive list of data providers available from within Astera. Among these, you’ll notice an option by the name of Astera Data Model.

On selecting the Astera Data Model option, a list of required credentials will appear on the screen.

  • User: Here, you must provide your Astera username. The default username is admin.

  • Password: Here, you must provide your Astera password. The default password is Admin123.

  • Server: Here, you must provide the server connection in the given format. This is the server where you’ve deployed your data models.

Once you’ve filled in the required credentials, the Database dropdown menu will provide a list of deployments that are running on the server.

Choose the deployment that you wish to access. In this case, we’ll select Demo_Source. You can test the connection by clicking on the Test icon.

A pop-up window will show you the test results.

This Database Table Source object now has access to the tables present in Demo_Source. Similarly, you can connect to a deployed data model from the Database Connection screen in the Data Model Query Source, SQL Query Source, Fact Loader, and Dimension Loader objects.

Click Next to move to the Pick Source Table and Reading Option screen.

This screen is specific to the Database Table Source object and will vary according to the object you’re using.

Here, you can pick a table from the virtual database representing the data model.

For reference, here is a look at the Demo_Source data model.

In this case, we’ll select the Customers table from the dropdown menu.

Click OK to close the configuration window. You’ll notice that the layout of the Customers table is now visible in the Database Table Source object.

You’ve successfully accessed an Astera Data Model table in a dataflow and can use it as part of an ETL pipeline.

Fact Loader & Dimension Loader

As mentioned earlier, the Fact Loader and Dimension Loader objects can be used as destination objects to load data into fact and dimension tables, respectively. These tables are represented by fact and dimension entities in a dimensional model, which denotes the schema of a data warehouse. Collectively, the Fact Loader and Dimension Loader objects are used to populate a data warehouse.

You can use the Database Connection screen in the properties of both objects to access the virtual databases representing deployed data models, in the same way as we saw earlier in the Database Table Source object. Once you’ve done so, click next to move to the Pick Table screen, where you can pick a table from the virtual database.

Let’s assume that we’ve deployed the following dimensional model:

The Sale entity represents the fact table, and the rest of the entities represent dimension tables.

Fact Loader – Pick Table

On expanding the Pick Table dropdown menu, you’ll notice that it only shows tables that are marked as facts in the dimensional model. In this case, the only table which fits that criterion is the Sale table.

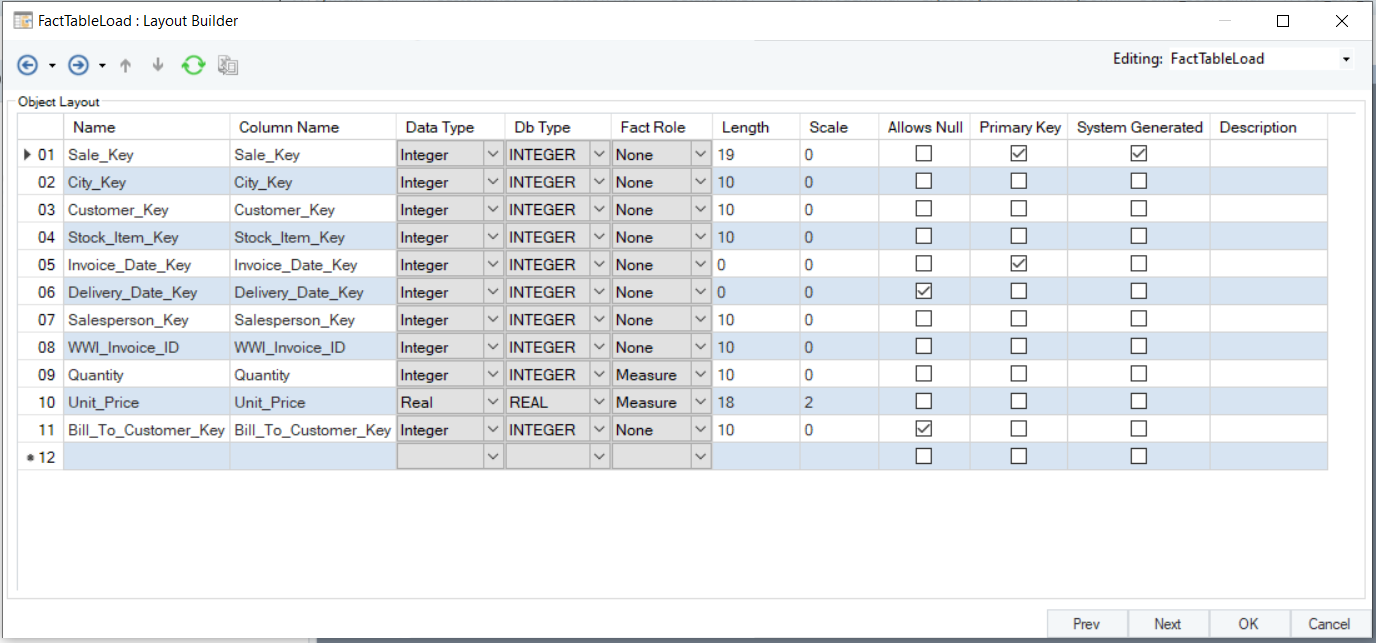

Click Next to move to the Layout Builder screen. Here, you can view the layout of the fact table.

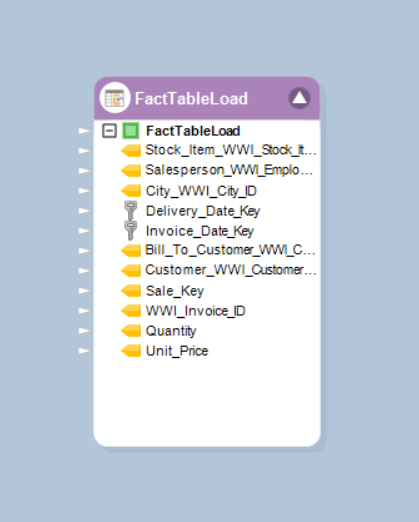

Click OK to the close the configuration window. The layout will now be visible in the Fact Loader object.

You can now make the required mappings from a relevant source object and run the dataflow in pushdown mode to populate the fact table.

Dimension Loader – Pick Table

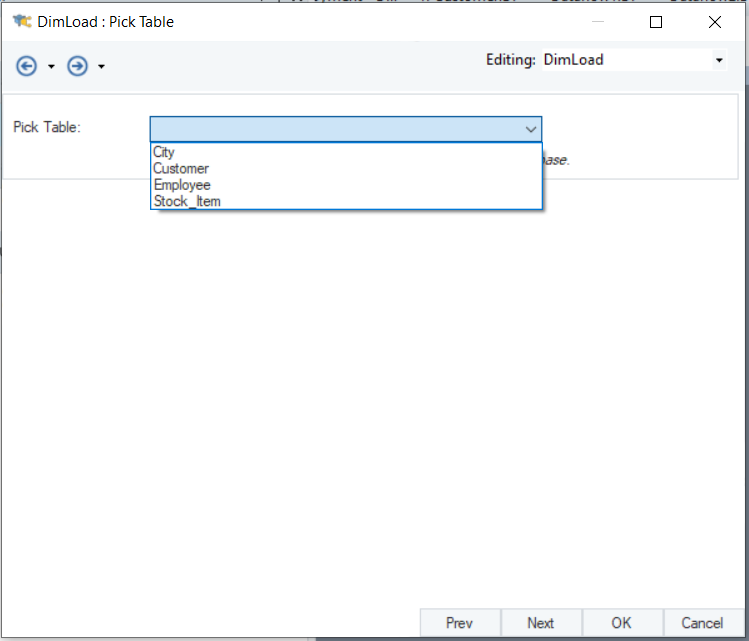

The Pick Table dropdown menu in the Dimension Loader object only shows tables that are marked as dimensions in the dimensional model.

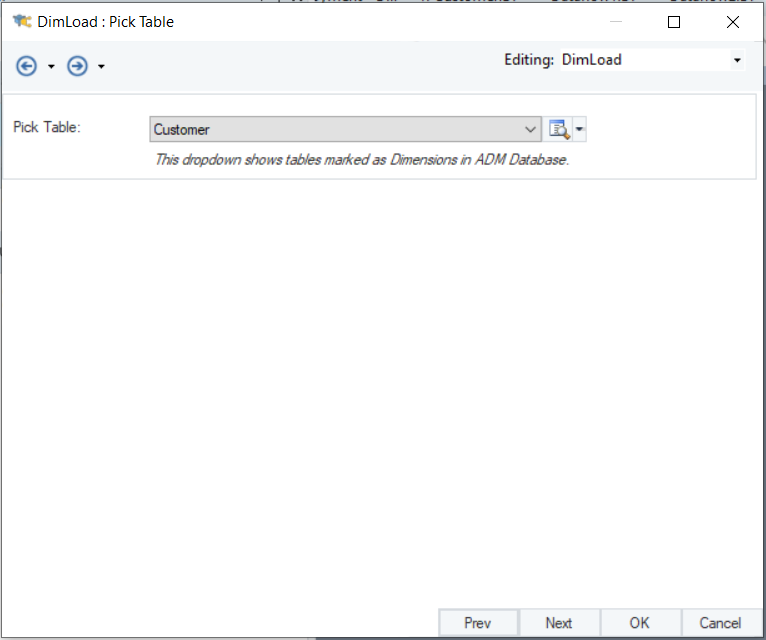

In this case, we’ll select the Customer table.

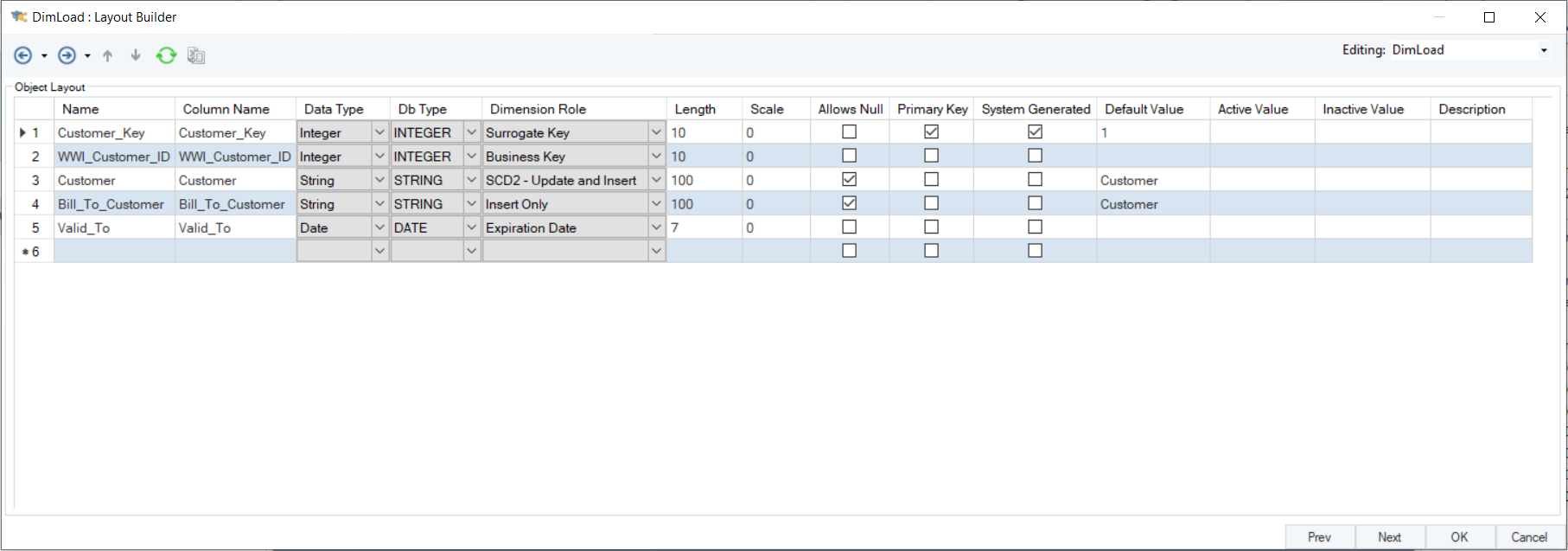

Click Next to move to the Layout Builder screen.

Here, you can view the layout of the dimension table.

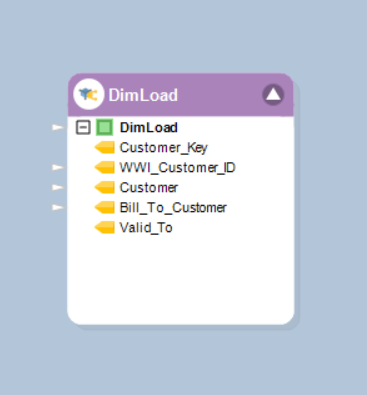

Click OK to close the configuration window. The layout will now be visible in the Dimension Loader object.

You can now make the required mappings from a relevant source object and run the dataflow to load data into the dimensional table.

This concludes our discussion on using Astera Data Models in ETL pipelines.
