# Query Vector DB
The *Query Vector DB* object queries vector-enabled databases. It supports semantic similarity search on dense embeddings, keyword search with `tsvector`, sparse vectors, and other supported vector types.
The *Query Vector DB* object also supports re-ranking and hybrid search methods to refine results after the initial search, ensuring more relevant and context-aware retrievals.
## Prerequisites
* A shared connection configured to a vector database.
* A shared connection to an embedding provider, if your search generates dense embeddings from a query.
## Use Case
A software company stores articles in a PostgreSQL knowledge base. The database includes dense embeddings for semantic search and `tsvector` fields for keyword search. They use the *Query Vector DB* object to search either field or combine both in a hybrid search.
## How to Work with the Query Vector DB Object
1. From the *Source* section in the *Toolbox*, drag-and drop a *Variables* object to the dataflow designer and add a user query variable in it.
2. From the sources section in the *Toolbox*, drag-and-drop a *Query Vector Database* object to the dataflow designer.

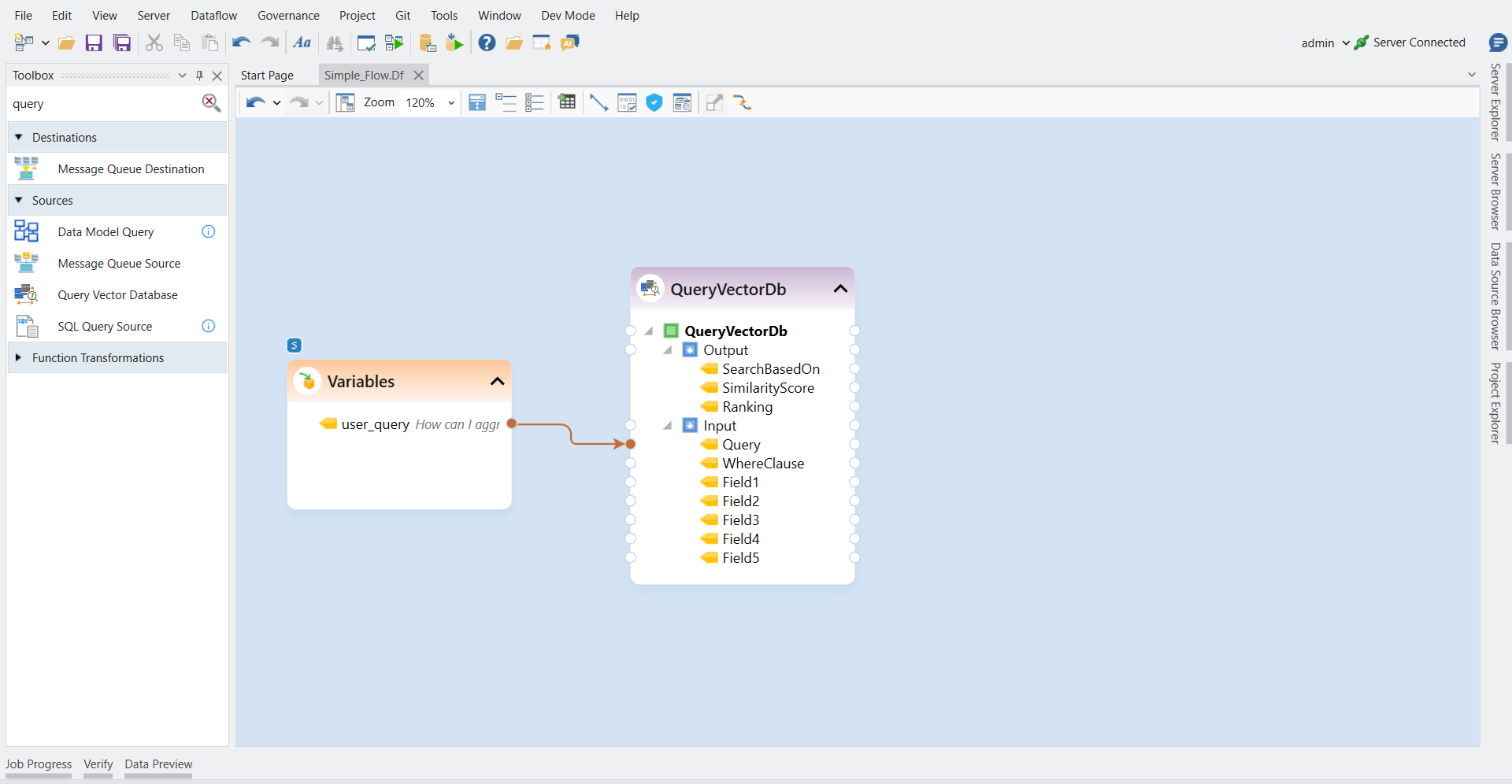

3. Map the **user\_query** variable to the **Query** Input in *Query Vector Db* object.
The source object includes three output fields by default: *Search Based On*, *Similarity Score*, and *Ranking*. These fields show how each result was retrieved and ranked.
### Configuring the Query Vector DB Object

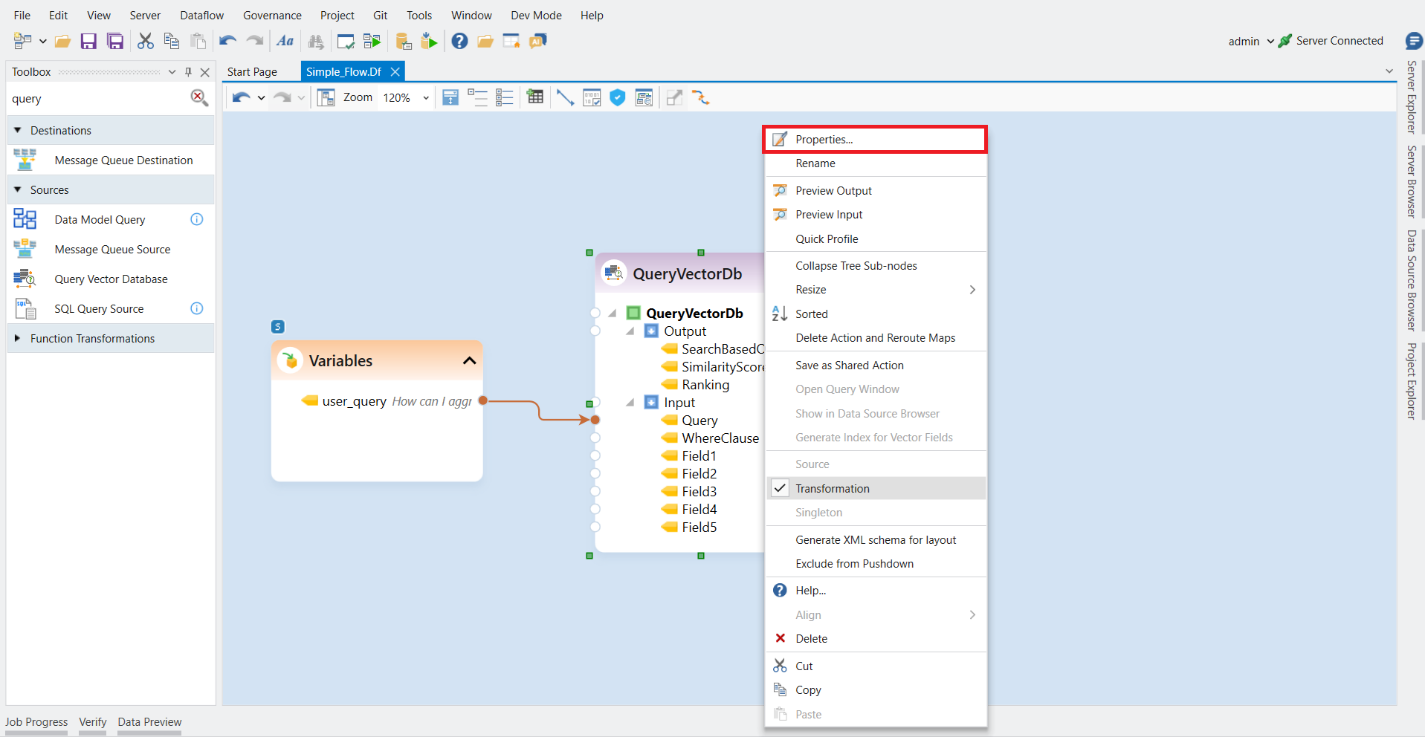

1. To configure *Query Vector Db* object, right-click on its header and select *Properties* from the context menu.

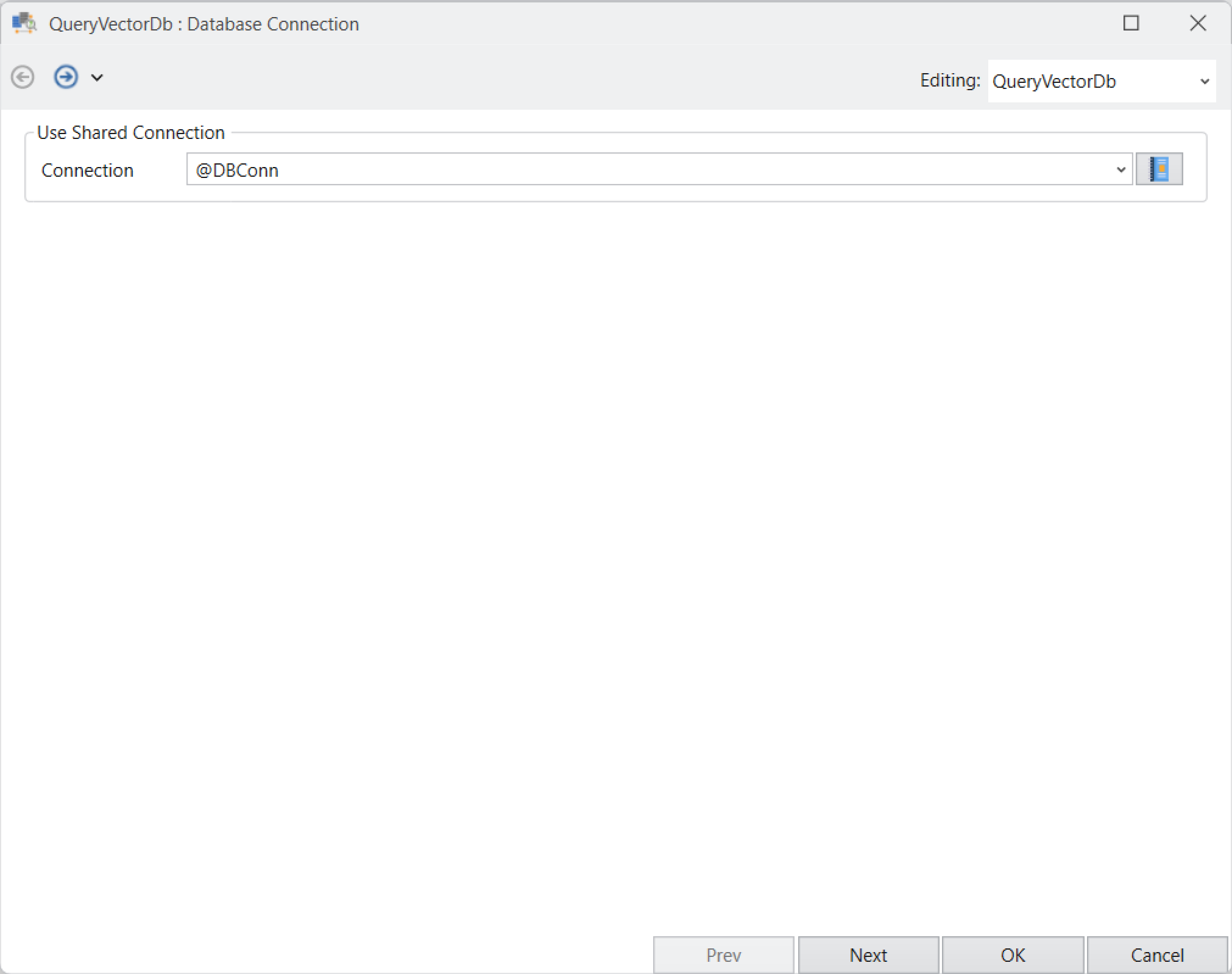

The *Database Connection* window will now open.
2. Here select the shared connection configured to your vector database.
{% hint style="info" %}
**Note:** The object currently supports PostgreSQL vector databases.
{% endhint %}

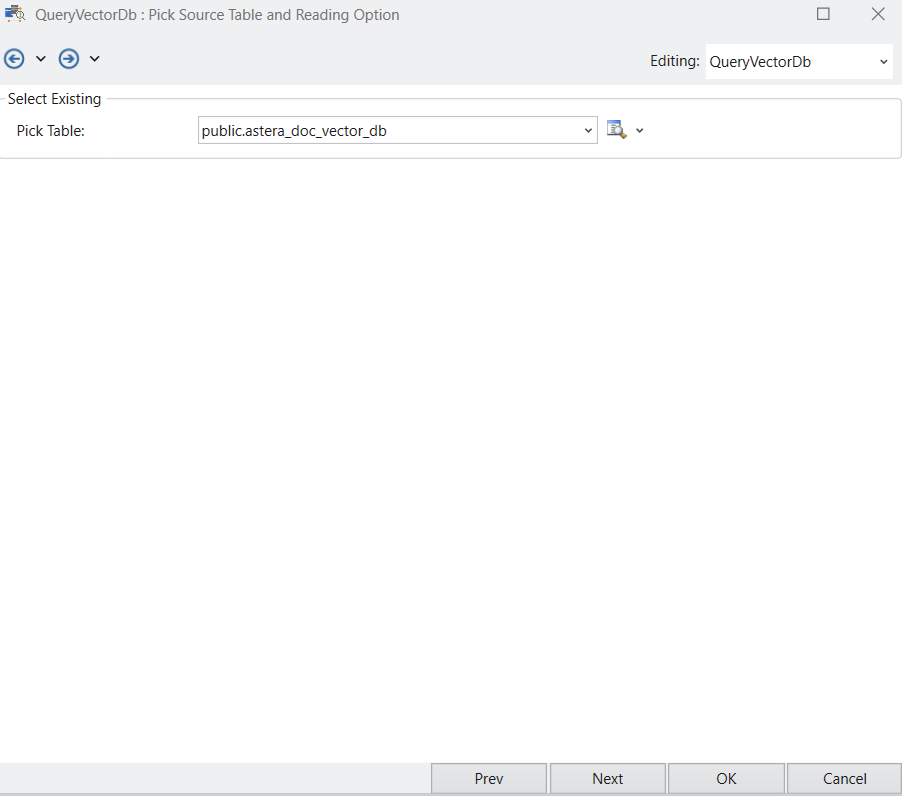

3. Next, you will see a *Pick Source Table and Reading Options* window. On this window, you will select the table from the database that you previously connected.

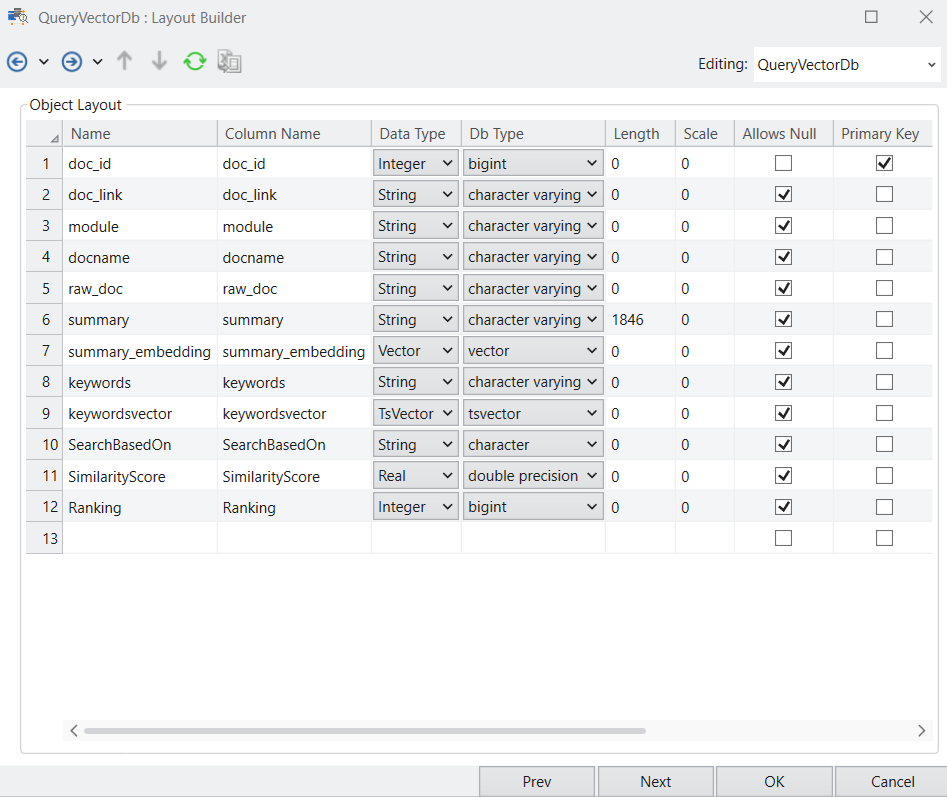

4. The next window is the *Layout Builder*. In this window you can modify the layout of your database table.

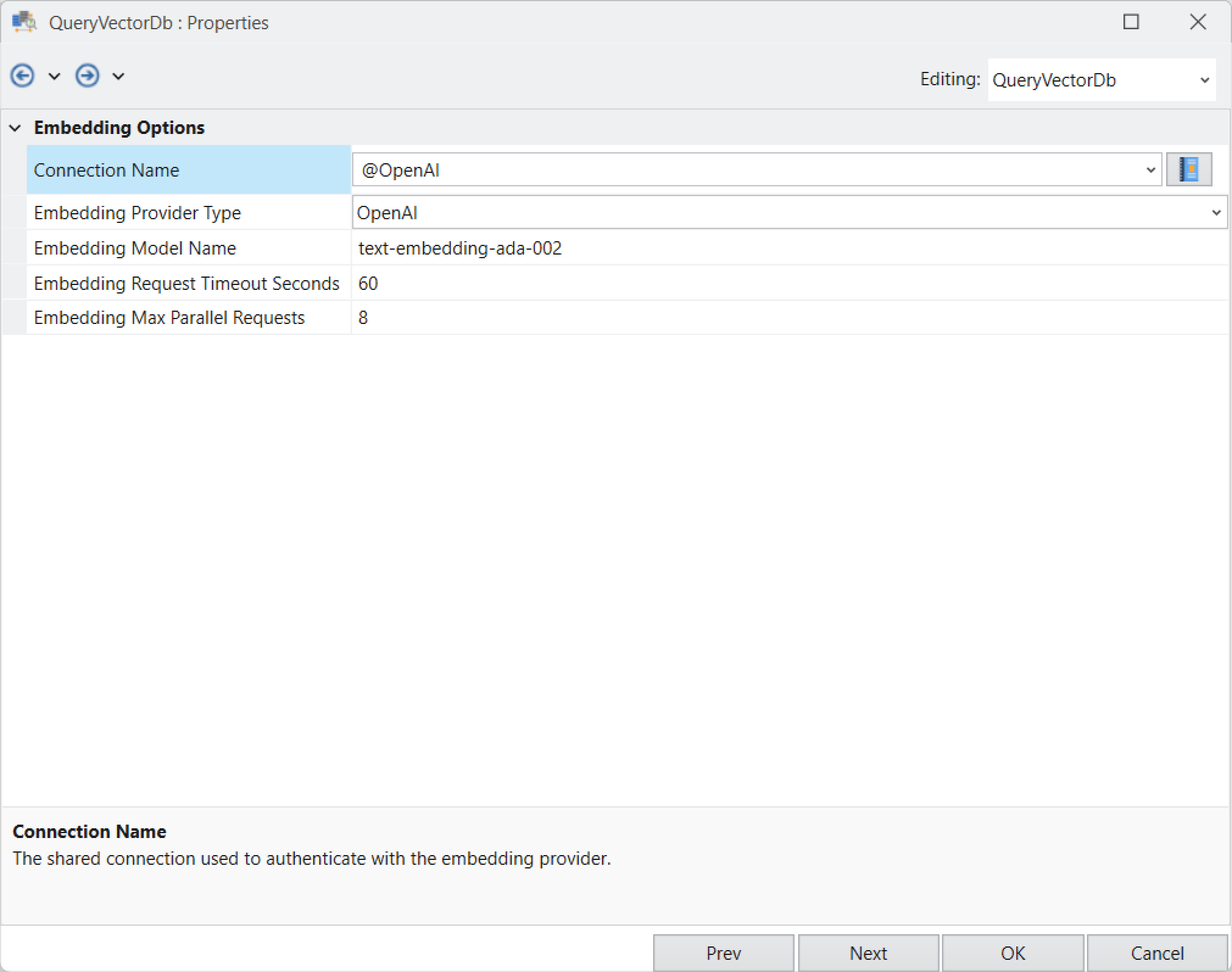

5. Once customized, click *Next*. The *Query Vector DB Properties* window opens. Configure an embedding model when searching dense embeddings.
Embedding Options:
These options apply when the object generates a dense embedding for the query.
* *Connection Name:* Select the shared connection to the embedding provider (e.g., OpenAI).
* *Embedding Provider Type:* Defines the embedding service being used, such as OpenAI or another provider.
* *Embedding Model Name:* Identifies the specific model used for generating vector embeddings (e.g., text-embedding-ada-002).
{% hint style="info" %}
**Note:** Use the same embedding model that was used to create the knowledge base.
{% endhint %}
* *Embedding Request Timeout Seconds:* Maximum time to wait for a single embedding API request before it times out.
* *Embedding Max Parallel Requests:* Maximum number of embedding API Requests which can be sent concurrently.
6. Once configured, click *Next.* In the *Search Properties* window you can set up the search properties of you vector database.
Search Options:
* *Max Retrieve Count:* Defines the maximum number of results to retrieve.
* *Search Field:* Specifies the database field to search. This can store dense embeddings, sparse vectors, `tsvector` keyword vectors, or another supported vector type.
* *Search Method:* Determines how the object compares or matches values. Available methods depend on the selected vector type.
The available methods update for the selected field:
* *Match Threshold:* Sets a match threshold to filter out less relevant results. For example, *0.7* returns results above *70%* similarity where the selected method uses similarity scoring.
* *Re-Rank Result:* Enables ranking of retrieved results based on secondary ranking criteria. This option is particularly useful for hybrid searches, ensuring more accurate and relevant results.
* *Re-Ranking Methods:* Defines the technique used for re-ranking results.
Currently, two methods are available:
* Reciprocal Rank Fusion
* Weighted Average
{% hint style="info" %}
**Note:** This option can only be enabled when you have more than one search field selected.
{% endhint %}
Additionally, when *Weighted Average* re-ranking method is chosen, an extra field, *Re-Rank Weight*, is added to allow you to define the priority for each search field. The weights should always add up to *1*.
* *Filter Vectors:* Enables additional filtering conditions for refining search results by adding a filter column.
To apply one filter across search fields, map a `WHERE` clause to the *Where* input field.
7. Click *OK*.
You have successfully configured your *Query Vector Database* object. The fields from the source object can now be mapped to other objects in a dataflow.
## Preview Output
1. Right-click on the *Query Vector DB* object’s header and select *Preview Output* to view the results.
2. The preview output displays:
* The most relevant document returned at the top. For example, if the query was *"How to aggregate my data?"*, the first result would be the *Aggregate Transformation* document.
* The second most relevant document, followed by others ranked in descending order of relevance.
* A *Search Based On* column, which indicates the search field used to retrieve the record.
* A *Similarity Score* column, which quantifies how closely the result matches the query.
* A *Ranking* column, where *Rank 1* indicates the most relevant record.
---
