# Reusing The Extraction Template for Similar Layout Files

Astera gives users the functionality of reusing a report model i.e., the extraction template for files of a similar layout. In this article, we will learn how to orchestrate the whole process.

A report model template contains the extraction logic to mine data from unstructured documents. The extraction process can be customized by the users via the properties and options available in Astera. To learn more about a report model, refer to [this](https://documentation.astera.com/report-model/user-guide/report-model-tutorial) article.

## Sample Use-Case

In Astera, there are various reusability methods of the report model. The reusability methods enable the users to obtain meaningful data from several unstructured documents of a similar layout using the same report model i.e., the extraction template. In this article, we will look at the techniques we can apply to achieve this goal.

* By using a workflow with *File System Item Source* object in *Loop* mode: As part of this technique, we will cover the creation of a workflow using a *File System Item Source* object in *Loop* mode as the source.
* By using the *Context Information* and the Job Scheduler: As part of this technique, we will cover the creation of a workflow using the *Context Info* object as the source. Moreover, we will also apply scheduling on the workflow.

In the following sections, let’s go over the whole process of how the above-mentioned techniques can be implemented.

## Reusing the Report Model for Similar Layout Files

It is standard practice to create a report model containing all the extraction logic and settings so that it can be applied onto multiple files of a similar layout.

We are using an example extraction template. To learn more about how to extract data from an unstructured document, click [here](https://documentation.astera.com/report-model/user-guide/report-model-tutorial#creating-a-report-model) .

The example template we are using contains extraction logic to obtain details related to Accounts, the number of Orders placed by each account, and description of each Order. This is what the extraction template looks like:

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/CsbNiTzir9dpqx2aCANx/RET_01.PNG)

To ensure better accessibility and manageability of the files, let’s create a project and add all the relevant documents to it.

### Creating a Project

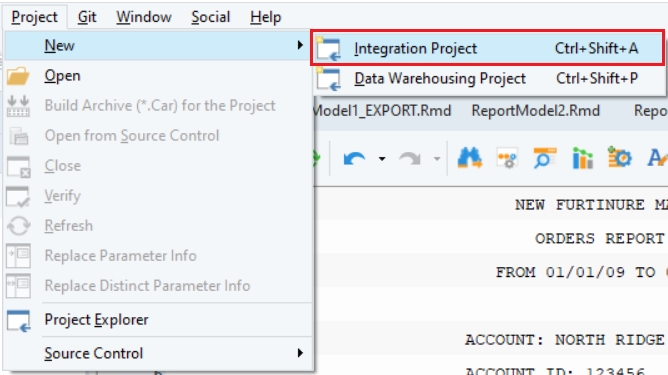

1. To create a project, go to *Project > New > Integration Project.*

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/hggubPknZiGrsJnF5oIG/RET_02.png)

2. The file explorer will open. Navigate to the path where you want to save the project and write the name of the project.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/x2a30O0HGGMv8X9WxCPN/03-Projectname.PNG)

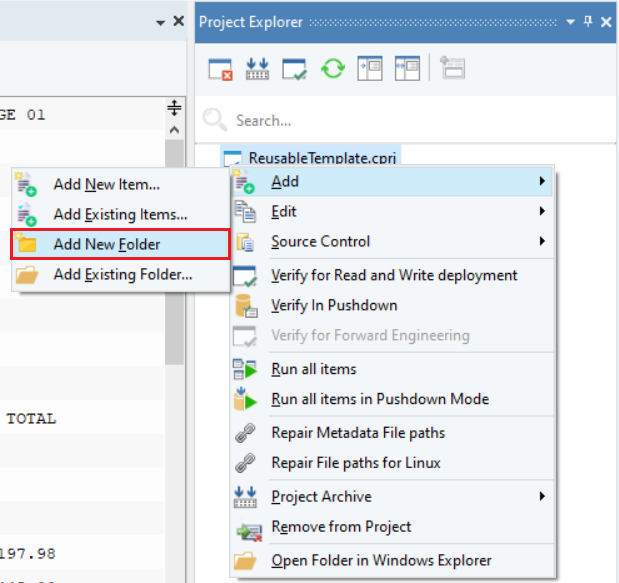

3. Right-click on the project in the Project Explorer panel and select the *Add New Folder* option.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/WdUfmhHyXVG69pMxmaGL/RET_03.png)

Here, we have created a folder named *Files* to store the flows, a folder named *Source* to store the unstructured source documents, and a folder named *Output* to store the output files.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/DEFi0jYOLtbWWEotAojy/RET_04.PNG)

4. Right-click on the *Files* folder and select *Add New Item* option from the context menu. Add a dataflow and a workflow to the *Files* folder.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/vs9zTs5cNRD9NbAnSrHi/RET_05.PNG)

Similarly, use *Add Existing Items* to add unstructured source files in the *Source* folder and ‘SampleOrders.Rmd’ in the *Files* folder. ‘SampleOrders.Rmd’ is the extraction template.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/kXvMczckyKJgDYzhX8mV/RET_06.PNG)

We have successfully created a project. Now, let’s head towards designing the dataflow.

### Creating a Dataflow

1. Double-click on the dataflow to open the empty designer.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/tYCait4xyCASn7O3q2dm/RET_07.PNG)

2. Drag-and-drop the [*Report Source*](https://documentation.astera.com/dataflows/sources/report-source) object onto the dataflow designer from *Toolbox > Sources > Report Source.* Right-click on the object’s header and select *Properties* from the context menu.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/ocxyZ2X26OOpnKrsNA7Y/RET_08.png)

The Report Model Properties window will open. Here, you have to provide file paths for the *Report Location* and *Report model* *Location*.

* *Report Location:* File path of the unstructured document.
* *Report Model Location:* File path of the extraction template.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/CWmgIAACWf3xPFrfzKce/10-report-model-properties.PNG)

Click *OK* to proceed.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/ti41ucHVYc06KciPZENj/RET_09.PNG)

3. To store the extracted data, drag and drop a destination object onto the dataflow designer. Here, we are using a [*Delimited Destination*](https://documentation.astera.com/dataflows/destinations/delimited-file-destination) object. Right-click on the destination object’s header and select *Properties* from the context menu.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/MaQcCwyUMlQ0EwXT91yu/12-destination-property.PNG)

This is the Configuration window.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/1Mzw3ZypOD6HuozDpNTQ/13-destination-property-window.PNG)

Here, specify the destination *File Path* and utilize the relevant configuration options available according to your needs.

Now, click *OK*.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/hgj8Snm6T7lBeqc4Krwb/RET_10.PNG)

4. Map the data fields from the *Report Source* object to the *Delimited Destination* object.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/7JpJ5xjwb8VvmFYqoliH/15-map-fields.PNG)

Now, for the dataflow to use multiple source files, you have to parametrize the source file path. Similarly, to provide destination path for each source file, parametrize the destination file path. Parameterization will allow the source files and their respective destination files to be replaced at runtime.

In the following section, let’s see how we can achieve this.

### Parameterizing the Dataflow

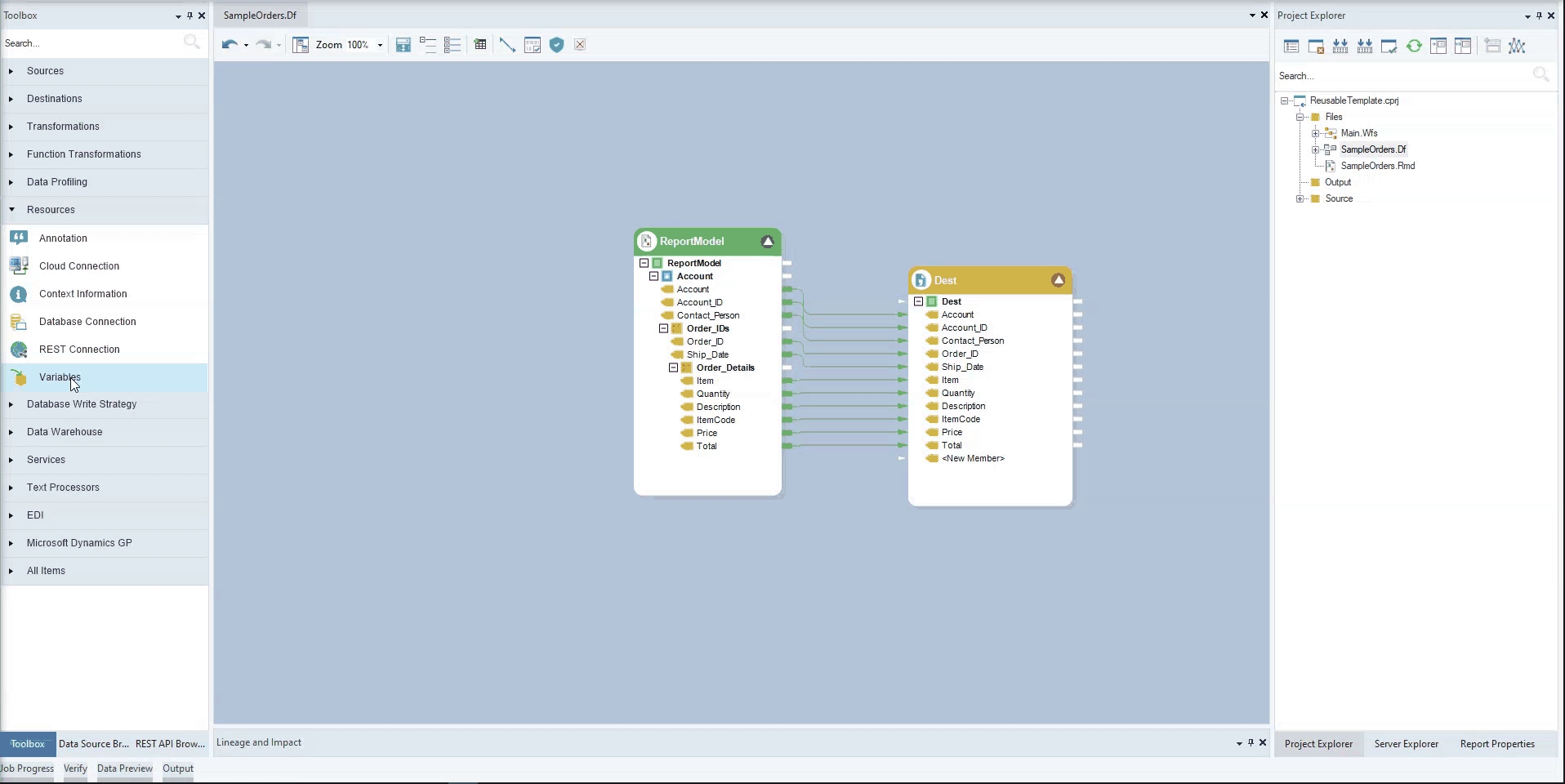

1. Drag-and-drop the *Variables* object from *Toolbox >* *Resources > Variables* onto the dataflow designer.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/OFpu44wCZoE9y2eiTC0U/16-variable.gif)

2. Right-click on the *Variables* object’s header and select *Properties* from the context menu.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/3mrN8zYflWuL5hPIYzkA/17-variable-properties.PNG)

The Properties window will open.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/WDxvtaWzG5ZU2ga8549F/18-variables-properties-window.PNG)

You have to create two fields. One field is for the source file path, while other is for the destination file path. Set the *Variable Type* of both as *Input* and provide their file paths in the *Default* *Value* column.

{% hint style="info" %}
**Note**: *Default Value* is optionally added to verify if the dataflow is accurately configured. At runtime, parameters passed as blank are replaced by the *Default Value* entry. In other words, the *Default Value* entry will only take effect when no other value is available.
{% endhint %}

Now, click *OK.*

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/hOtlgQ99E9SMdVMCFJpG/19-variables-pathCapture.PNG)

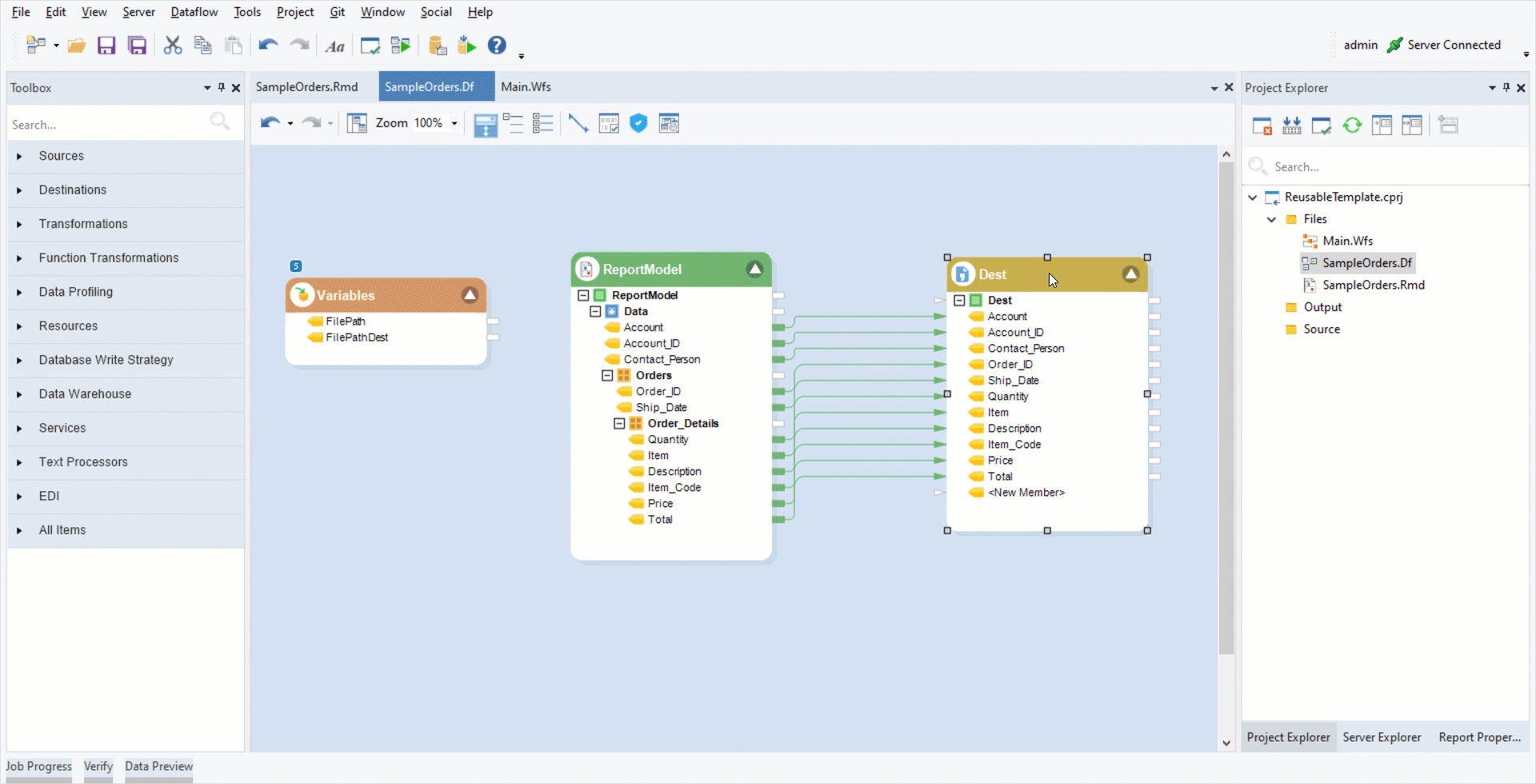

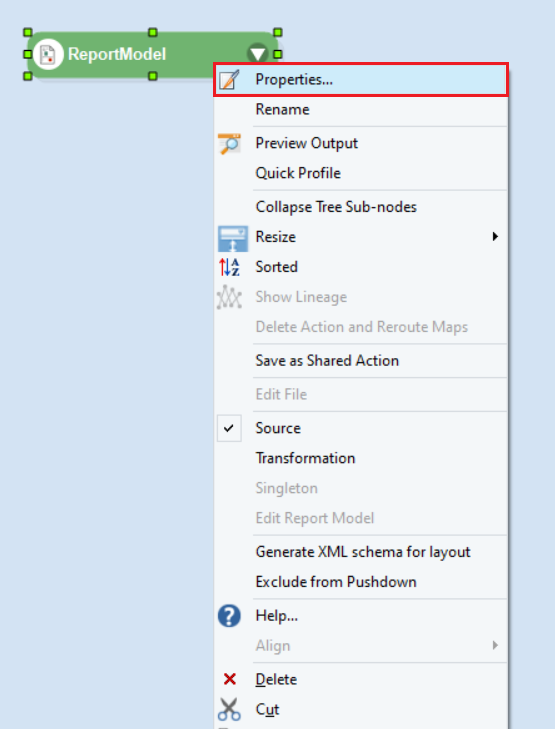

3. Double-click on the *Report* *Source* object’s header. Click *Next*. This is the *Config Parameters* window. Set the *FilePath* variable as the *Value* of *FilePath* field.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/OmEchVMZtKOrYPblQtVa/RET_11.gif)

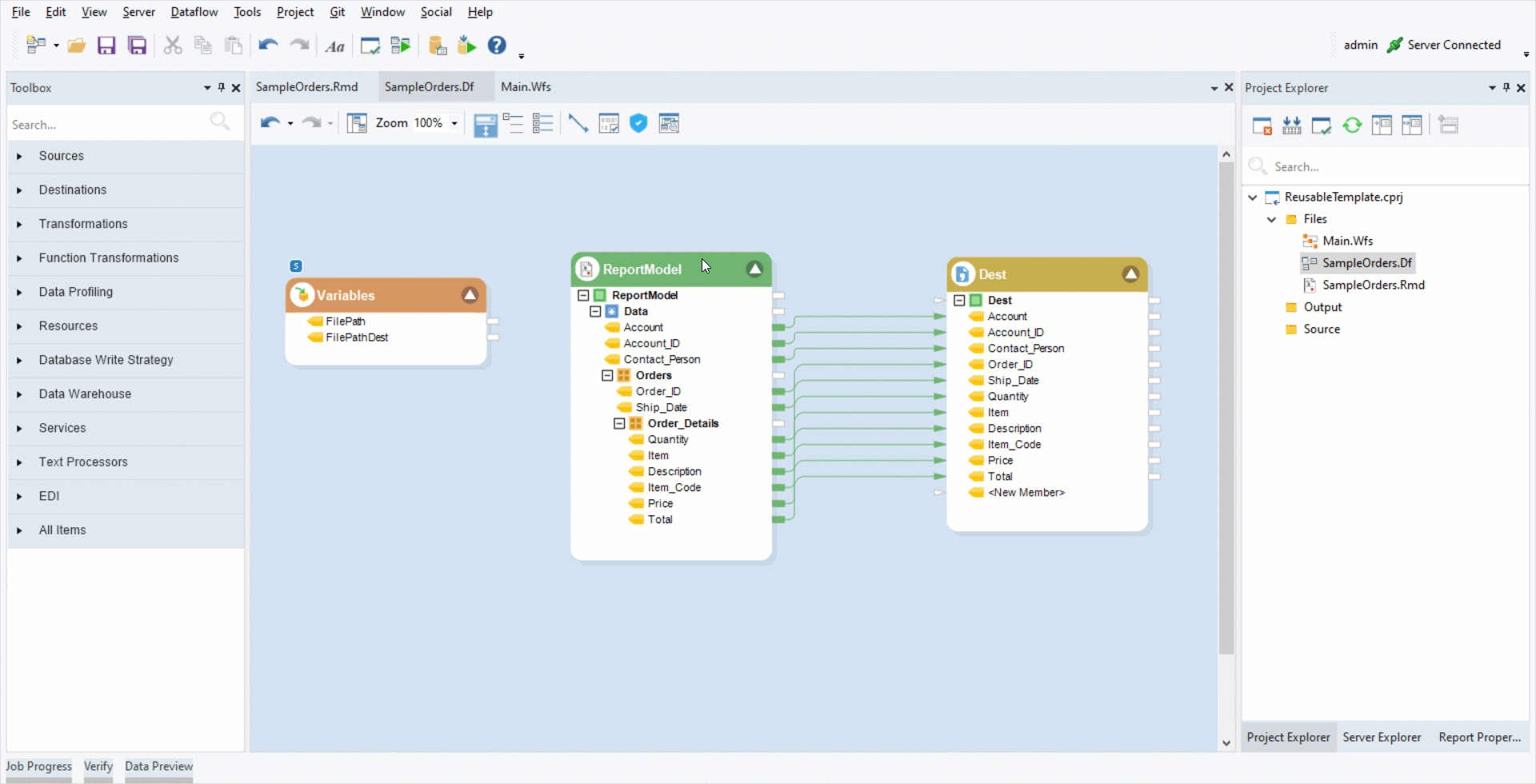

4. Double-click on the destination object’s header and click *Next* till you reach the *Config Parameters* window. Set the *FilePathDest* variable as the *Value* of the *DestinationFile* field. Click *OK*.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/u7zGphOAfQSaNXcnjrSl/RET_12.gif)

We have now created a final dataflow. Let’s proceed towards designing the workflow.

### Designing a Workflow

1. Drag-and-drop the *Run Dataflow* object from *Toolbox > Workflow Tasks > Run Dataflow* onto the workflow designer.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/CiwpaidRwQCaxpxl2XQr/RET_13.PNG)

2. Double-click on the *Run Dataflow* object’s header to open the *Start Dataflow Job Properties* window.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/kpxc5G2UvqHnFcu6BeIe/RET_14.PNG)

Specify the path to the dataflow that you want to execute in the *Job-Info.* To learn more about *Run Dataflow* object, click [here](https://documentation.astera.com/workflows/run-dataflow).

Now, Click *OK.*

3. Drag-and-drop the *File System Items Source* object from *Toolbox > Sources > File System* onto the workflow designer.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/n8XL7lF6uC7LS8w6OMkz/24-file-system-items-source.PNG)

4. Double-click on the object’s header. The *File System Items Source Properties* window will open.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/tHz4R9a9jASPpO4tBG8h/RET_15.PNG)

Here, specify the path to the directory where the source files reside. You can add an entry to the *Filter* textbox if you want to read files in a specified format only. Additionally, you may choose to include all items of the subdirectories and/or include all items inclusive of entries for subdirectories by checking the options at the bottom. To learn more about the *File System Items Source* object, click [here](https://documentation.astera.com/dataflows/sources/file-system-items-source).

Click *OK* to proceed.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/tEqP8puNEpMx5NpWLMfq/RET_16.PNG)

{% hint style="info" %}
**Note**: Here, the unstructured files in the *Output* folder were of “.txt” extension. Hence, only “.txt” files are being processed.
{% endhint %}

5. Map the *FilePath* data field of the *File System Items Source* object to the *FilePath* data field of the *Run Dataflow* object.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/nFVoJxWsg3TrPGtVb0K4/RET_17.PNG)

Now, let’s proceed towards the construction of the dynamic destination path.

6. Drag-and-drop the [*Constant Value* ](https://documentation.astera.com/dataflows/transformations/constant-value-transformation)transformation object from *Toolbox > Transformation > Constant Value* onto the workflow designer.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/QQVDAb1JeCfnE9kE9ci0/28-constant.PNG)

7. Double-click on the *Constant Value* object’s header. The *Constant Value Map Properties* window will open. Provide the path to the directory or folder where you want to store the output files. Click *OK*.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/Eh6hDudDCk4DHp1tsT1s/RET_18.PNG)

8. Go to *Toolbox > Transformation > Expression*, drag-and-drop the *Expression* transformation object onto the workflow designer.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/Lx9v5wsrwlAvLt8MB4XM/30.PNG)

9. Right-click on the *Expression* object’s header and select *Properties* from the context menu.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/gw4s8a0fcT6nrTXrEZWJ/31-expression-properties.PNG)

This will open the Layout Builder window. Here, you must create three data fields.

* *FileDirectory,* set as *Input*.
* *FileName,* set as *Input*.
* *FilePathDest,* set as *Output*.

Click *OK*.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/ASBi45CplXZFm4SxSDEh/RET_19.PNG)

**Note**: Write the expression of *FilePathDest* field as FileDirectory + FileName + “.csv”. At runtime, this expression will create the destination file path for each source file.

To learn more about how to utilize the *Expression* transformation object, click [here](https://documentation.astera.com/dataflows/transformations/expression-transformation).

10. To construct the dynamic destination path, it is necessary to make appropriate mappings for the fields of the objects. The directory that has been specified in the *Constant Value* object needs to be combined with the file name provided by the *File System Items Source* object. After the application of the defined expression on the fields, the resultant file path should be mapped to the *Run Dataflow* object. To achieve this, define the field mappings of the objects as follows:

* Map the *Value* field of the *Constant Value* object to the *FileDirectory* field of the *Expression* transformation object.
* Map the *FileNameWithoutExtension* field of the *File System Items Source* object to the *FileName* field of the *Expression* transformation object.
* Map the *FilePathDest* field of the *Expression* transformation object to the *FilePathDest* field of the *Run Dataflow* object.

After mapping of the objects, this is what the final workflow looks like:

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/aBJoL6cbRF1Pi6piM5r7/RET_20.PNG)

We have now created the final workflow. In the next section, let’s discuss the reusability techniques of the extraction template.

### Reusing Methods

Let’s summarize what we have done so far. We have created a dataflow by using a *Report Source* object, *Variable*s object, and a *Delimited Destination* object. The purpose of this dataflow is to apply the extraction logic on the unstructured document, parameterize the file paths using variables, and write the extracted data to a destination file.

We have also created a workflow and included objects such as *File System Items Source*, *Constant Value*, *Expression* transformation, and *Run Dataflow*. The purpose of this workflow is to execute the previously made dataflow and construct a dynamic destination path to store each source file at runtime.

Now, we will see how we can use the workflow and apply the extraction process on multiple unstructured files of similar format.

**Applying Looping on File System Items Source Object**

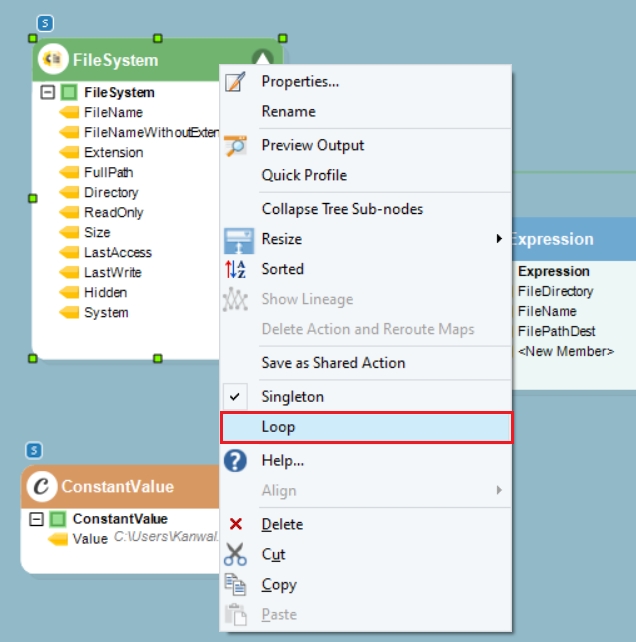

1. Right-click on the *File System Items Source* object’s header and select *Loop* from the context menu.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/BPv3cgt0SGSFEpZt9imO/RET_21.png)

{% hint style="info" %}
**Note**: By selecting the *Loop* option, we are ensuring that the *File System Items Source* object iterates through the entire folder. This will enable us to provide multiple source files to the *Run Dataflow* object. By default, the selected *Singleton* option only picks the first file in the folder.
{% endhint %}

2. Link the *File System Items Source* object to the *Run Dataflow* object.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/hIxKhkIJDpMQEAJXSNBT/RET_22.PNG)

{% hint style="info" %}
**Note**: You can use *Job Schedules* on this workflow by following the steps defined under the [Scheduling](#scheduling) heading.
{% endhint %}

### **Using Context Info and Applying Scheduling**

1. Instead of a *File System Items Source* object, you can use the [*Context Info*](https://docs.astera.com/projects/centerprise/en/9/resources/context-information.html) object from *Toolbox > Resources > Context Info* to process a file whenever it is dropped at the path mentioned in the scheduled task.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/66SXWsMWIVdcSGZB57GH/38-context-info.PNG)

2. Map the *DroppedFilePath* data field from *Context Info* object to the *FilePath* data field in the *Run Dataflow* object.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/rL92RbnHCTxPj7je9lW6/RET_23.PNG)

#### **Scheduling**

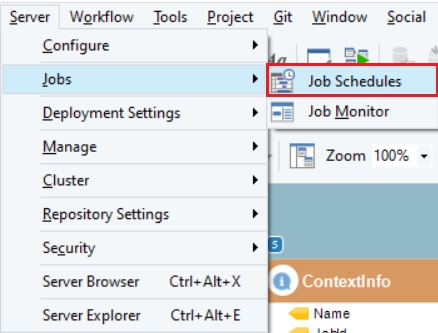

3. Go to *Server > Job Schedules.*

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/7wXEfmWCrBLWrvbCYdkH/RET_24.png)

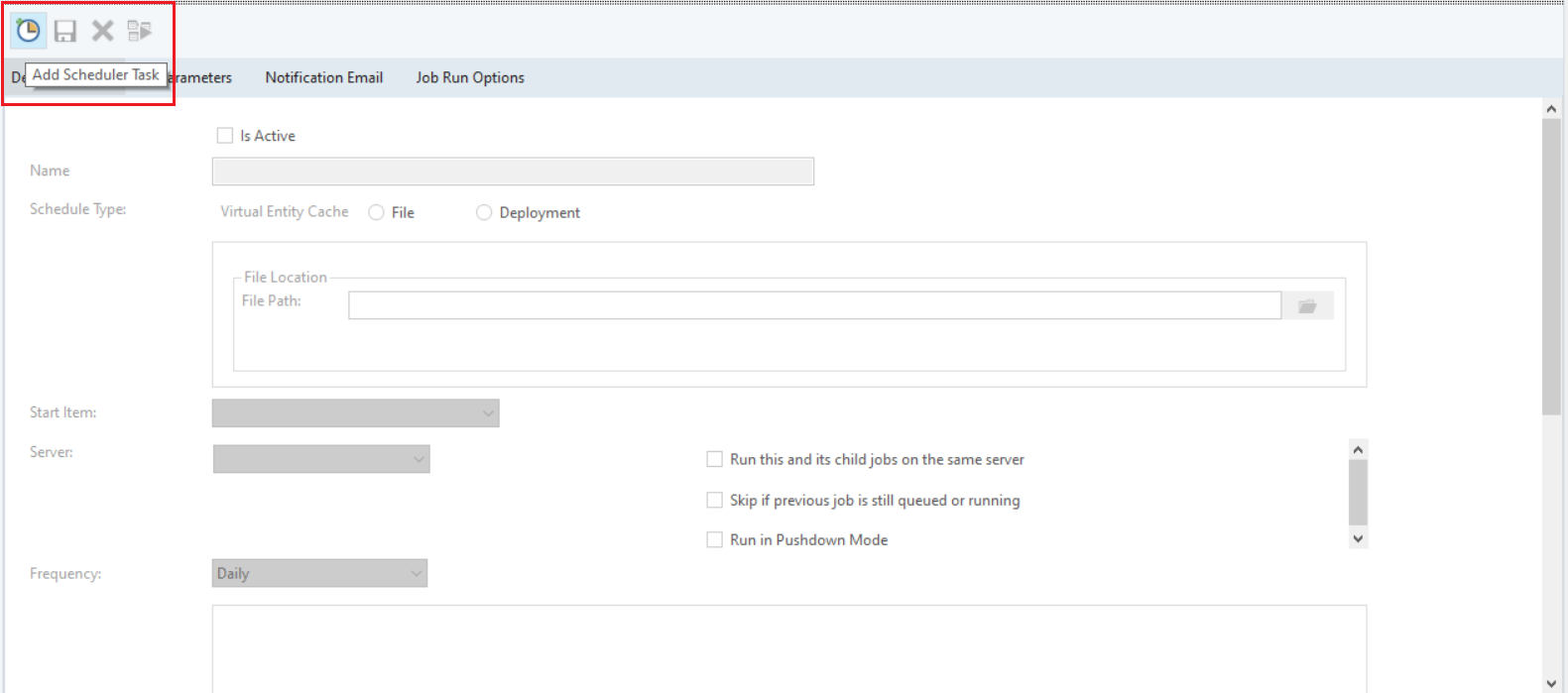

4. To add a new task for a schedule, click on the *Add Scheduler Task.*

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/EPNdOXvwHw4nbIuOe7H0/RET_25.png)

Specify the *Name* of the task. After that, select the *Schedule Type*. In our case, we want to schedule a workflow. Hence, we will select the *File* type for scheduling. Provide the path of the workflow in the *File Location.* There are some other options for *Server*, *Dataflow*, *Job,* and *Frequency*, which you can select according to your requirements.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/nQs5ssBkrBY44TYIRqlR/RET_26.PNG)

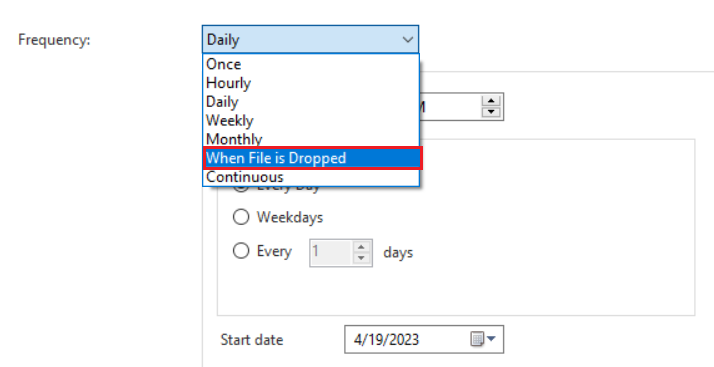

5. Click on the drop-down menu of *Frequency* and select *When File is Dropped*. To learn more about each *Frequency* type, click [here](https://documentation.astera.com/project-management-and-scheduling).

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/an8jNgjsOZOJRSzPjXOI/RET_27.png)

Here, provide the path of directory you want the scheduler to watch in case of a file drop. You can use the *File Filter* option to process a specific type of file format. Other options, including *Watch Subdirectories, Process Existing Files on Startup, Rename File, and Use Polling*, are available to be used according to your requirements.

Save the task by clicking on the *Save Selected Task* *icon* in the top left corner.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/F0Y1xiJ1P6JaZCGyNGft/RET_28.PNG)

To gain further insights on how to schedule a job on the server using *Job Schedules*, click [here](https://docs.astera.com/projects/centerprise/en/9/miscellaneous/job-scheduler.html).

This is how you can automate the whole process of extracting data from multiple files with similar layout using the same report model in Astera.
