Astera Data Stack
Version 8
Version 8
  • Welcome to Astera Data Stack Documentation
  • Release Notes
    • Astera 8.0 - What's New, What's Fixed, and What's Improved
    • Astera 8.0 - Known Issues
    • Astera 8.1 - Release Notes
    • Astera 8.2 Release Notes
    • Astera 8.3 Release Notes
    • Astera 8.4 Release Notes
    • Astera 8.5 Release Notes
  • Getting Started
    • Astera 8 - Important Considerations
    • Astera 8 - System Requirements
    • Configuring the Server
    • Connecting to a Different Astera Server from the Lean Client
    • Connecting to an Astera Server using Lean Client
    • How to Build a Cluster Database and Create a Repository
    • How to Login from Lean Client
    • Setting up a Server Certificate (.pfx) File in a New Environment
    • Installing Client and Server Applications
    • Licensing Model in Astera 8
    • Migrating from Astera 7.x to Astera 8
    • UI Walkthrough - Astera 8.0
    • User Roles and Access Control
  • Dataflows
    • Sources
      • Data Providers and File Formats Supported in Astera
      • Setting Up Sources
      • COBOL File Source
      • Database Table Source
      • Data Model Query Source
      • Delimited File Source
      • Email Source
      • Excel Workbook Source
      • File Systems Item Source
      • Fixed Length File Source
      • PDF Form Source
      • Report Source
      • SQL Query Source
      • XML/JSON File Source
    • Transformations
      • Introducing Transformations
      • Aggregate Transformation
      • Constant Value Transformation
      • Data Cleanse Transformation
      • Denormalize Transformation
      • Distinct Transformation
      • Database Lookup Transformation
      • Expression Transformation
      • File Lookup Transformation
      • Filter Transformation
      • Join Transformation
      • List Lookup Transformation
      • Merge Transformation
      • Normalize Transformation
      • Passthru Transformation
      • Reconcile Transformation
      • Route Transformation
      • Sequence Generator Transformation
      • Sort Transformation
      • Sources as Transformations
      • Subflow Transformation
      • SQL Statement Lookup Transformation
      • Switch Transformation
      • Tree Join Transformation
      • Tree Transform
      • Union Transformation
    • Destinations
      • Setting Up Destinations
      • Database Table Destination
      • Delimited File Destination
      • Excel Workbook Destination
      • Fixed Length File Destination
      • SQL Statement Destination
      • XML/JSON File Destination
    • Data Logging and Profiling
      • Creating Data Profile
      • Creating Field Profile
      • Data Quality Mode
      • Record Level Log
      • Using Data Quality Rules in Astera
    • Database Write Strategies
      • Database Diff Processor
      • Data Driven Write Strategy
      • Dimension Loader - Database Write
      • Source Diff Processor
    • Text Processors
      • Delimited Parser
      • Delimited Serializer
      • Fixed Length Parser
      • Fixed Length Serializer
      • Language Parser
      • XML JSON Parser
      • XML JSON Serializer
    • Data Warehouse
      • Fact Table Loader
      • Dimension Table Loader
  • WORKFLOWS
    • What Are Workflows?
    • Using the Workflow Designer
    • Creating Workflows in Astera
    • Decision Task
    • EDI Acknowledgement Task
    • File System Task
    • File Transfer Task
    • OR Task
    • Run Dataflow Task
    • Run Program Task
    • Run SQL File Task
    • Run SQL Script Task
    • Run Workflow Task
    • Send Mail Task
    • Workflows with a Dynamic Destination Path
    • Customizing Workflows with Parameters
    • GPG-Integrated File Decryption in Astera
  • Subflows
    • Using Subflows in Astera
  • Functions
    • Introducing Function Transformations
    • Custom Functions
    • Logical
      • Coalesce (Any value1, Any value2)
      • IsNotNull (AnyValue)
      • IsRealNumber (AnyValue)
      • IsValidSqlDate (Date)
      • IsDate (AnyValue)
      • If (Boolean)
      • If (DateTime)
      • If (Double)
      • Exists
      • If (Int64)
      • If (String)
      • IsDate (str, strformat)
      • IsInteger (AnyValue)
      • IsNullOrWhitespace (StringValue)
      • IsNullorEmpty (StringValue)
      • IsNull (AnyValue)
      • IsNumeric (AnyValue)
    • Conversion
      • GetDateComponents (DateWithOffset)
      • ParseDate (Formats, Str)
      • GetDateComponents (Date)
      • HexToInteger (Any Value)
      • ToInteger (Any value)
      • ToDecimal (Any value)
      • ToReal (Any value)
      • ToDate (String dateStr)
      • TryParseDate (String, UnknownDate)
      • ToString (Any value)
      • ToString (DateValue)
      • ToString (Any data, String format)
    • Math
      • Abs (Double)
      • Abs (Decimal)
      • Ceiling (Real)
      • Ceiling(Decimal)
      • Floor (Decimal)
      • Floor (Real)
      • Max (Decimal)
      • Max (Date)
      • Min (Decimal)
      • Min (Date)
      • Max (Real)
      • Max (Integer)
      • Min (Real)
      • Pow (BaseExponent)
      • Min (Integer)
      • RandomReal (Int)
      • Round (Real)
      • Round (Real Integer)
      • Round (Decimal Integer)
      • Round (Decimal)
    • Financial
      • DDB
      • FV
      • IPmt
      • IPmt (FV)
      • Pmt
      • Pmt (FV)
      • PPmt
      • PPmt (FV)
      • PV (FV)
      • Rate
      • Rate (FV)
      • SLN
      • SYD
    • String
      • Center (String)
      • Chr (IntAscii)
      • Asc (String)
      • AddCDATAEnvelope
      • Concatenate (String)
      • ContainsAnyChar (String)
      • Contains (String)
      • Compact (String)
      • Find (Int64)
      • EndsWith (String)
      • FindIntStart (Int32)
      • Extract (String)
      • GetFindCount (Int64)
      • FindLast (Int64)
      • GetDigits (String)
      • GetLineFeed
      • Insert (String)
      • IsAlpha
      • GetToken
      • IndexOf
      • IsBlank
      • IsLower
      • IsUpper
      • IsSubstringOf
      • Length (String)
      • LeftOf (String)
      • Left (String)
      • IsValidName
      • Mid (String)
      • PadLeft
      • Mid (String Chars)
      • LSplit (String)
      • PadRight
      • ReplaceAllSpecialCharsWithSpace
      • RemoveChars (String str, StringCharsToRemove)
      • ReplaceLast
      • RightAlign
      • Reverse
      • Right (String)
      • RSplit (String)
      • SplitStringMultipleRecords
      • SplitStringMultipleRecords (2 Separators)
      • SplitString (3 separators)
      • SplitString
      • SplitStringMultipleRecords (3 Separators)
      • Trim
      • SubString (NoOfChars)
      • StripHtml
      • Trim (Start)
      • TrimExtraMiddleSpace
      • TrimEnd
      • PascalCaseWithSpace (String str)
      • Trim (String str)
      • ToLower(String str)
      • ToProper(String str)
      • ToUpper (String str)
      • Substring (String str, Integer startAt)
      • StartsWith (String str, String value)
      • RemoveAt (String str, Integer startAt, Integer noofChars)
      • Proper (String str)
      • Repeat (String str, Integer count)
      • ReplaceAll (String str, String lookFor, String replaceWith)
      • ReplaceFirst (String str, String lookFor, String replaceWith)
      • RightOf (String str, String lookFor)
      • RemoveChars (String str, String charsToRemove)
      • SplitString (String str, String separator1, String separator2)
    • Date Time
      • AddMinutes (DateTime)
      • AddDays (DateTimeOffset)
      • AddDays (DateTime)
      • AddHours (DateTime)
      • AddSeconds (DateTime)
      • AddMonths (DateTime)
      • AddMonths (DateTimeOffset)
      • AddMinutes (DateTimeOffset)
      • AddSeconds (DateTimeOffset)
      • AddYears (DateTimeOffset)
      • AddYears (DateTime)
      • Age (DateTime)
      • Age (DateTimeOffset)
      • CharToSeconds (Str)
      • DateDifferenceDays (DateTimeOffset)
      • DateDifferenceDays (DateTime)
      • DateDifferenceHours (DateTimeOffset)
      • DateDifferenceHours (DateTime)
      • DateDifferenceMonths (DateTimeOffset)
      • DateDifferenceMonths (DateTime)
      • DatePart (DateTimeOffset)
      • DatePart (DateTime)
      • DateDifferenceYears (DateTimeOffset)
      • DateDifferenceYears (DateTime)
      • Month (DateTime)
      • Month (DateTimeOffset)
      • Now
      • Quarter (DateTime)
      • Quarter (DateTimeOffset)
      • Second (DateTime)
      • Second (DateTimeOffset)
      • SecondsToChar (String)
      • TimeToInteger (DateTime)
      • TimeToInteger (DateTimeOffset)
      • ToDate Date (DateTime)
      • ToDate DateTime (DateTime)
      • ToDateString (DateTime)
      • ToDateTimeOffset-Date (DateTimeOffset)
      • ToDate DateTime (DateTimeOffset)
      • ToDateString (DateTimeOffset)
      • Today
      • ToLocal (DateTime)
      • ToJulianDate (DateTime)
      • ToJulianDayNumber (DateTime)
      • ToTicks (Date dateTime)
      • ToTicks (DateTimeWithOffset dateTime)
      • ToUnixEpoc (Date dateTime)
      • ToUtc (Date dateTime)
      • UnixTimeStampToDateTime (Real unixTimeStamp)
      • UtcNow ()
      • Week (Date dateTime)
      • Week (DateTimeWithOffset dateTime)
      • Year (Date dateTime)
      • Year (DateTimeWithOffset dateTime)
      • DateToJulian (Date dateTime, Integer length)
      • DateTimeOffsetUtcNow ()
      • DateTimeOffsetNow ()
      • Day (DateTimeWithOffset dateTime)
      • Day (Date dateTime)
      • DayOfWeekStr (DateTimeWithOffset dateTime)
      • DayOfWeek (DateTimeWithOffset dateTime)
      • DayOfWeek (Date dateTime)
      • DateToJulian (DateTimeWithOffset dateTime, Integer length)
      • DayOfWeekStr (Date dateTime)
      • FromJulianDate (Real julianDate)
      • DayOfYear (Date dateTime)
      • DaysInMonth(Integer year, Integer month)
      • DayOfYear (DateTimeWithOffset dateTime)
      • FromUnixEpoc
      • FromJulianDayNumber (Integer julianDayNumber)
      • FromTicksUtc(Integer ticks)
      • FromTicksLocal(Integer ticks)
      • Hour (Date dateTime)
      • Hour (DateTimeWithOffset dateTime)
      • Minute (Date dateTime)
      • JulianToDate (String julianDate)
      • Minute (DateTimeWithOffset dateTime)
      • DateToIntegerYYYYMMDD (DateTimeWithOffset dateTime)
      • DateToIntegerYYYYMMDD (Date dateTime)
    • Files
      • AppendTextToFile (String filePath, String text)
      • CopyFile (String sourceFilePath, String destFilePath, Boolean overWrite)
      • CreateDateTime (String filePath)
      • DeleteFile (String filePath)
      • DirectoryExists (String filePath)
      • FileExists (String filePath)
      • FileLength (String filePath)
      • FileLineCount (String filePath)
      • GetDirectory (String filePath)
      • GetEDIFileMetaData (String filePath)
      • GetExcelWorksheets (String excelFilePath)
      • GetFileExtension (String filePath)
      • GetFileInfo (String filePath)
      • GetFileName (String filePath)
      • GetFileNameWithoutExtension (String filePath)
      • LastUpdateDateTime (String filePath)
      • MoveFile (String filePath, String newDirectory)
      • ReadFileBytes (String filePath)
      • ReadFileFirstLine (String filePath)
      • ReadFileText (String filePath)
      • ReadFileText (String filePath, String codePage)
      • WriteBytesToFile (String filePath, ByteArray bytes)
      • WriteTextToFile (String filePath, String text)
    • Date Time With Offset
      • ToDateTimeOffsetFromDateTime (dateTime String)
      • ToUtc (DateTimeWithOffset)
      • ToDateTimeOffsetFromDateTime
      • ToDateTimeOffset (String dateTimeOffsetStr)
      • ToDateTimeFromDateTimeOffset
    • GUID
      • NewGuid
    • Encoding
      • ToBytes
      • FromBytes
      • UrlEncode
      • UrlDecode
    • Regular Expressions
      • ReplaceRegEx
      • ReplaceRegEx (Integer StartAt)
    • TimeSpan
      • Minutes
      • Hours
      • Days
      • Milliseconds
    • Matching
      • Soundex
      • DoubleMetaphone
      • RefinedSoundex
  • Report Model
    • User Guide
      • Report Model Tutorial
    • Report Model Interface
      • Field Properties Panel
      • Region Properties Panel
      • Report Browser
      • Report Options
    • Use Cases
      • Applying Pattern to Line
      • Auto Creating Data Regions and Fields
      • Auto-Parsing
      • Creating Multi-Column Data Regions
      • Floating Patterns and Floating Fields
      • How To Work With PDF Scaling Factor in a Report Model
      • Line Count
      • Pattern Count
      • Pattern is a Regular Expression
    • Exporting Options
      • Exporting a Report Model
      • Exporting Report Model to a Dataflow
    • Miscellaneous
      • Importing Monarch Models
      • Microsoft Word and Rich Text Format Support
      • Working With Problematic PDF Files
  • API Flows
    • API Consumption
      • Consume
        • REST API Browser
        • Making HTTP Requests Through REST API Browser
        • Using REST Client Outside of the Scope of the Project
      • Authorize
        • Authorizing ActiveCampaign API in Astera
        • Authorizing Astera Server APIs
        • Authorizing Avaza APIs in Astera
        • Authorizing Facebook APIs in Astera
        • Authorizing QuickBooks API in Astera
        • Authorizing Square API in Astera
        • Open APIs - Configuration Details
  • Project Management
    • Project Management
      • Astera's Project Explorer
      • Connecting to Source Control
      • Deployment
      • Server Monitoring and Job Management
    • Job Scheduling
      • Scheduling Jobs on the Server
      • Job Monitor
  • Use Cases
    • End-to-End Use Cases
      • Data Integration
        • Using Astera to Create and Orchestrate an ETL Process for Partner Onboarding
      • Data Warehousing
        • Building a Data Warehouse - A Step-By-Step Approach
      • Data Extraction
        • Reusing The Extraction Template for Similar Layout Files
  • Connectors
    • Connecting to Amazon Aurora Database
    • Connecting to Amazon RDS Databases
    • Connecting to Amazon Redshift Database
    • Connecting to Cloud Storage
    • Connecting to Google Cloud SQL in Astera
    • Connecting to MariaDB Database
    • Connecting to Microsoft Azure Databases
    • Connecting to MySQL Database
    • Connecting to Netezza Database
    • Connecting to Oracle Database
    • Connecting to PostgreSQL in Astera
    • Connecting to Salesforce Database
    • Connecting to Salesforce - Legacy Database
    • Connecting to SAP HANA Database
    • Connecting to Snowflake Database
    • Connecting to Vertica Database
    • Setting Up IBM DB2 iSeries Connectivity in Astera
  • Miscellaneous
    • Cloud Deployment
      • Deploying Astera on Amazon Web Services
      • Deploying Astera on Microsoft Azure Cloud
      • Deploying Astera on Oracle Cloud
    • Context Information
    • Pushdown Mode
    • Role Based Access Control in Astera
    • Safe Mode
    • Server Command Line Utility
    • SmartMatch Feature
    • Synonym Dictionary File
    • Updating Your License in Astera
    • Using Dynamic Layout/Template Mapping in Astera
    • Using Output Variables in Astera
    • Using the Data Source Browser in Astera
  • Best Practices
    • Astera Best Practices - Dataflows
    • Overview of Cardinality in Data Modeling
    • Cardinality Errors FAQs
Powered by GitBook

© Copyright 2025, Astera Software

On this page
  • Benefits of Template Mapping
  • Use Case: Auto-Generating Dataflows through Template Guide Maps
  • Creating a Template Dataflow in Astera
  • Automating Template Maps for the Entire Database
  1. Miscellaneous

Using Dynamic Layout/Template Mapping in Astera

PreviousUpdating Your License in AsteraNextUsing Output Variables in Astera

Last updated 9 months ago

The Dynamic Layout/Template Mapping feature in Astera enables users to create a template dataflow that can be used to process multiple files and generate copies of the same dataflow, without having to change the mapping links individually for each source dataset. Upon execution, Astera will replace the values dynamically and generate a new dataflow automatically for all source files.

Benefits of Template Mapping

  • Running your routine processes does not require you to design and map your ETL flows every time.

  • ETL pipelines can be run without any dependence on the development environment.

  • Template mapping also facilitates scheduling repetitive, routine jobs for automation.

  • Using runtime parameters, you can customize your templates to suit your changing requirements.

  • Template mapping makes it all the more convenient for non-technical users to customize and deploy these templates in different business scenarios.

In this document, we will learn how to use the Dynamic Layouts/Template Mapping functionality in Astera.

Use Case: Auto-Generating Dataflows through Template Guide Maps

Dataflow templates are reusable flows that can be customized using runtime parameters and generate copies of the same flow for multiple source files upon execution.

Let’s understand this with an example.

Here we have around 15 tables in a database and we need to process the data in each of these tables through a dataflow. Following a traditional ETL mapping approach, we would need to design 40 different dataflows and run them separately. Although the records and layouts are different in each table, the data in each table is processed through a similar process that involves the following steps:

  1. Data is extracted using the object in Astera

  2. Data is written into a .csv file using the object

Mapping the same flow to different source tables and destination paths, manually, can be time-consuming, inefficient, and prone to human errors. However, by designing and creating a dataflow template, you can map the task to the template which will generate a copy of the same dataflow for each table, with unique source and destination paths.

Let’s see how this works in Astera.

Creating a Template Dataflow in Astera

To create a template dataflow, drag and drop the relevant source object from the Sources section in the Toolbox. The Dynamic Layout option for template mapping is supported in the Database Table Source, Excel File Source, and Delimited File Source in Astera. In this example, our source data is stored in a database table, so we will use a Database Table Source object to retrieve our data.

Drag and drop this object from the Sources section in the Toolbox onto the dataflow designer.

Now, right-click on the Database Source object’s header, and select Properties.

This will open a new window where you will need to provide details to configure a connection with the database.

Once the connection is established, click Next to proceed to the next screen.

Here, you need to pick a table from the database. In this case, We will select the Customers table from the list.

Leave the other options as default, and scroll down to the Dynamic Layout section on the same screen.

Check the Dynamic Layout option. This will enable the other two options in this section.

  • Delete Fields in Subsequent Objects: When this option is checked, it will remove all elements already present in the subsequent objects.

  • Add Fields in Subsequent Objects: When this option is checked, it will populate the fields from the source table in the subsequent objects.

Both these options are checked by default and enabled when you check the Dynamic Layout option.

Once done, click OK to exit the screen.

Now, if you look at the Database Table Source object, you can see this small icon or flag, DYN, over the header. This denotes that the source object has been set to work with dynamic layouts.

Now, drag and drop a Variables object from the Resources section in the Toolbox onto the designer.

Using this Variables object, we will define input parameters for the source table. Right-click on the Variables object’s header, and select Properties.

This will open a new window where we will specify the input parameters or variables for the source table.

  • Name: TBLName

    • This is the name of the input variable and will be hardcoded in the Config Parameters window of the Database Table Source object.

  • Data Type: String

  • Variable Type: Input

  • Default Value: Employees

    • The Default Value can be the name of any table in your source database that you want to process in the template dataflow. Here, we have provided the Default Value as ‘Employees’ since we want to process the Employees table through the template dataflow we are designing.

Once you have specified the parameter details, click OK.

Now right-click on the Database Table Source object’s header, and select Properties. Select the Config Parameters screen.

Here, you need to provide details of the parameters you have specified in the Variables object.

Click the Value field for TableInfo.Name, and write {Variables.TBLName}. Once done, click OK.

Now, as per our use case, we want to write the source data to a Delimited File Destination. For this, let’s drag the Delimited File Destination object from the Destinations section in the Toolbox onto the designer.

Now map fields from the Database Table Source object to the Delimited File Destination object.

Right-click on the Delimited File Destination object’s header, and select Properties.

This will open a new window where you need to point the path to the location where you want to save your output file. Provide a name and location, and click Save.

Since we will be using this dataflow template for multiple tables in our database, the destination file path should be dynamic so that it can generate a new output file with a unique name for each table it processes. To do this, go to the Config Parameters screen in the Delimited File Destination object.

Here, you need to provide parameters that will generate a new output file every time a table is processed through the dataflow.

Let’s write the following value for the Destination File: \arrakis\share\Fiza Baig\TemplateMap_Output{Variables.TBLName}.csv

Once done, click OK to close the window.

Now right-click on any mapping link connecting a field from the source to the destination, and select Template Map Properties from the list.

This will open a new window where you will need to specify the template map type.

Click on the Template Map Type drop-down list. You can see two options:

  • Guide Map: This mapping link serves as a pointer between two objects in a dataflow and determines how data flows between them. The Guide Map works independently of the different fields in a source object. As in, it merely defines the path of data from the source to the destination and has nothing to do with whichever field it is mapped to.

  • Conditional Map: Conditional Map specifies a set of conditions for a particular field in Source and Destination file layouts.

Let’s select Guide Map as our Template Map Type and click OK.

You can now see the Guide Map written above the mapping link.

Our template dataflow is ready. Now let’s run the dataflow. You can observe the progress in the Job Progress window.

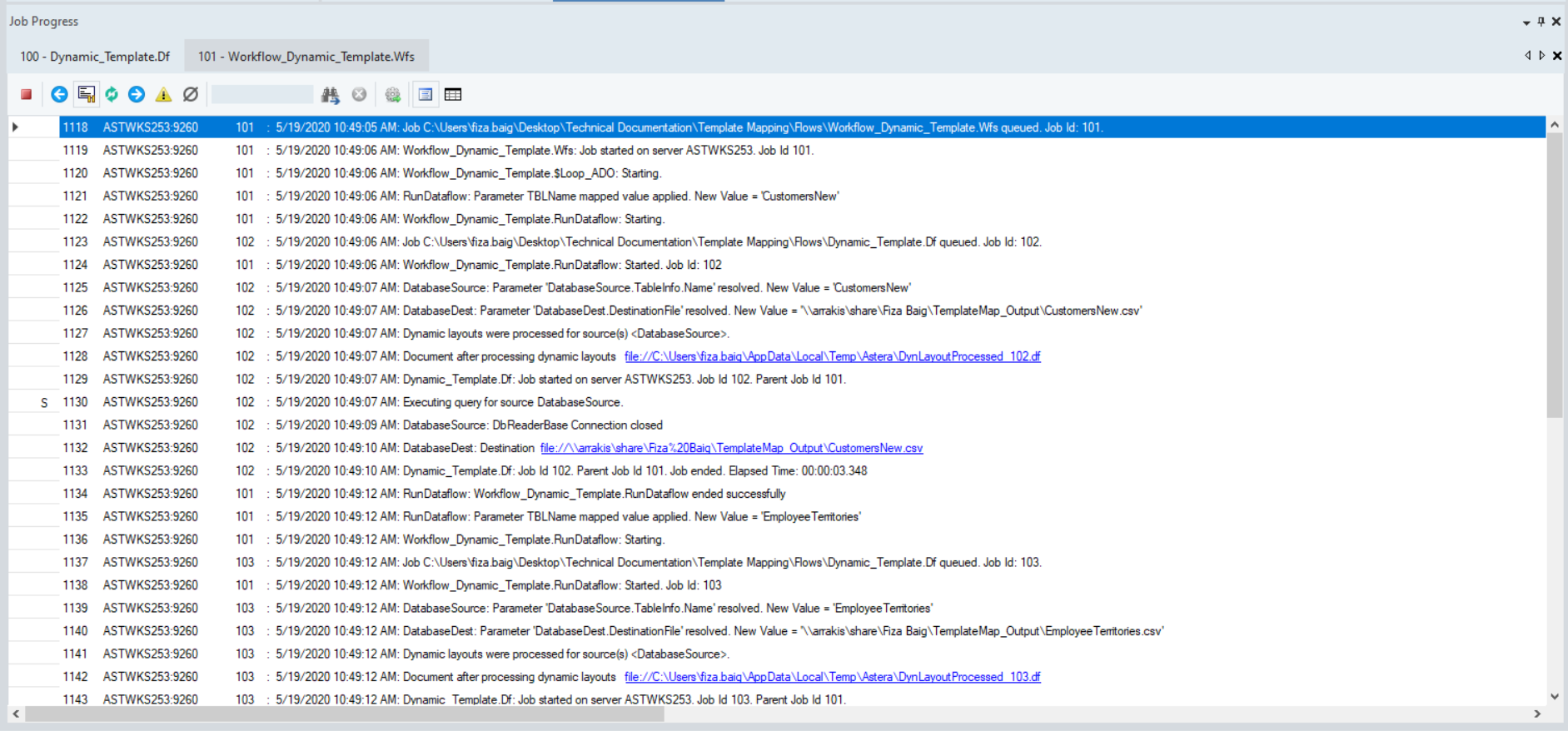

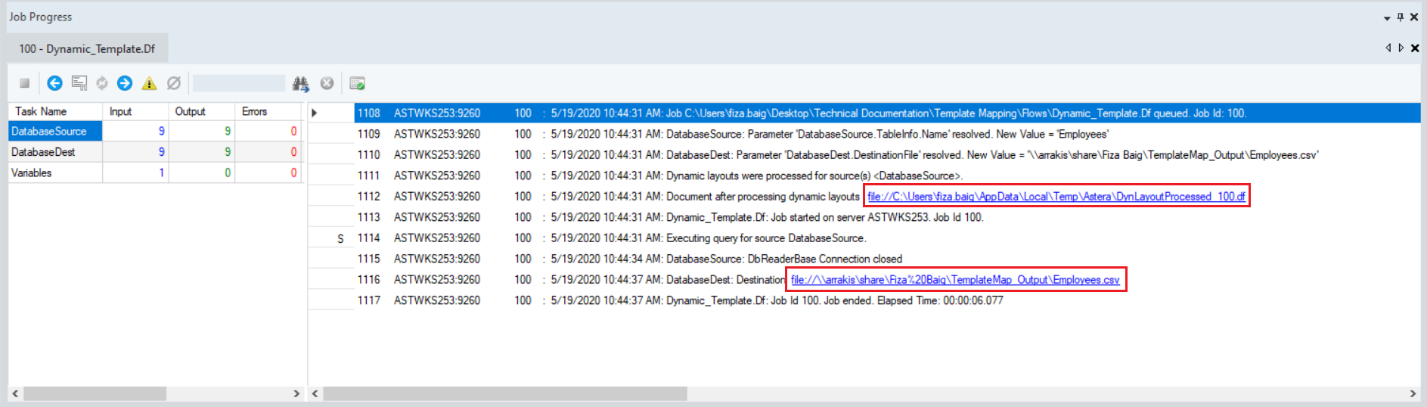

If you look at the job trace, you can see that Astera has generated a new dataflow (DynLayoutProcessed.df) based on our template dataflow. The output file too, which is a CSV file in this case, has been generated at the specified location. You can find clickable links to the new dataflow as well as the output file in the job trace.

Note: To be able to access and open the new dataflow in Astera, you need to be logged on to the Astera Integration Server. For this, go to Services > Astera Integration Server > right-click > Properties > Log on.

Let’s open this new dataflow by clicking on the link in the job trace.

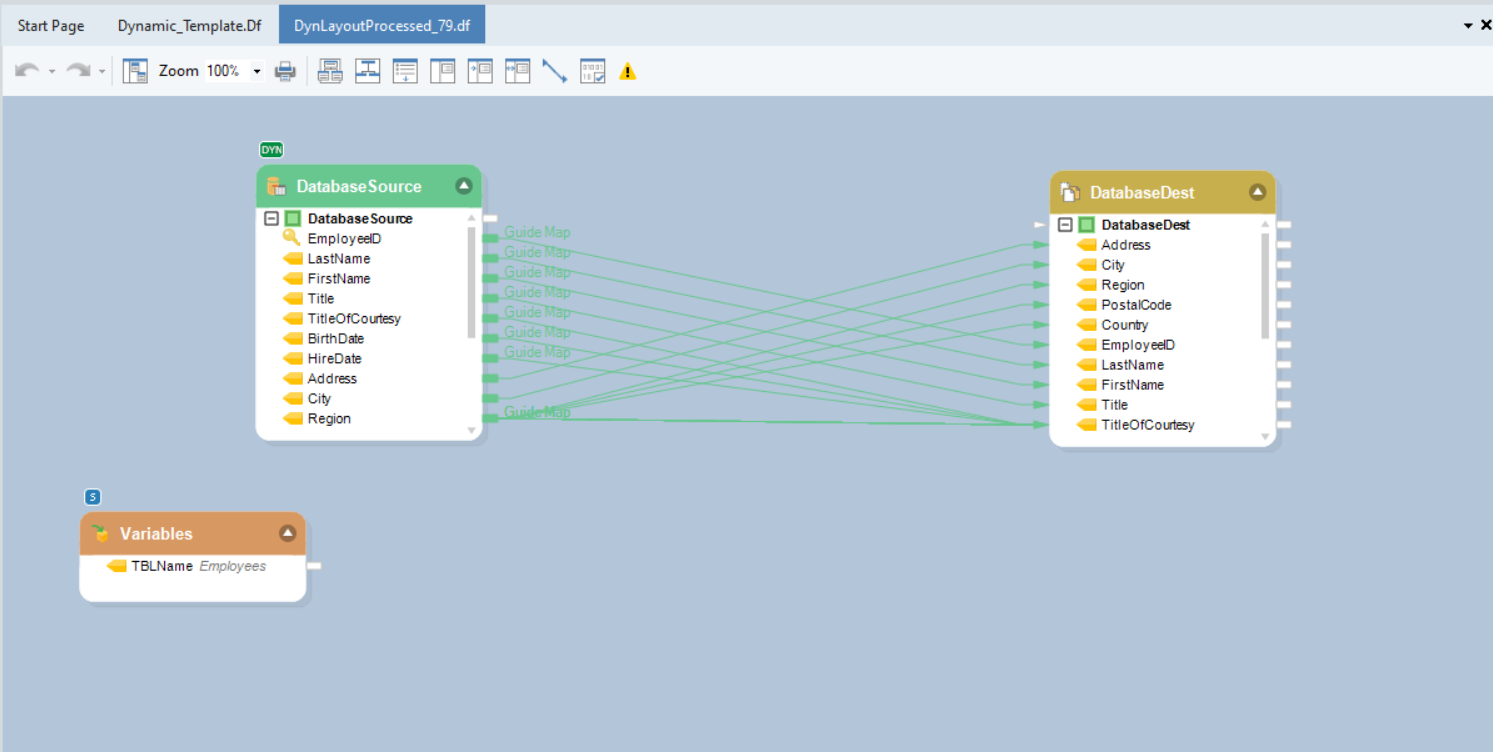

You can see that this new dataflow that has been generated automatically is the exact copy of the template dataflow we created in the previous steps.

Based on the Default Value, Employees in the Variables object, the Database Table Source object has automatically picked the table from the database, replacing the Customers table in the template dataflow, and has populated the fields from the Employees table in the Source as well as Destination objects.

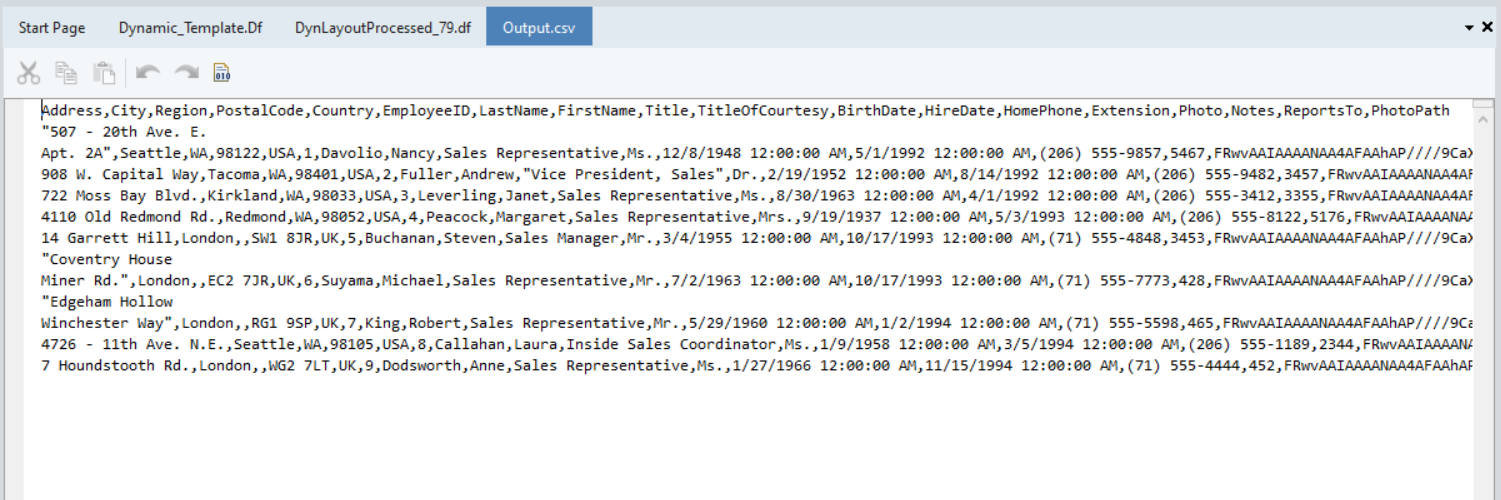

Click on the output file link in the job trace to open the CSV file in Astera.

You can see that records from the Employees table have been written into the output file.

Automating Template Maps for the Entire Database

Our source database contains multiple tables and we want to run all of them through the same process we defined in our template dataflow. We can orchestrate this entire process for automation using the workflow and scheduler component in Astera.

Let’s see how this is done.

Open a new workflow by going to File menu > New > Workflow.

This will open a new workflow window in Astera.

Drag-and-drop the ADO.Net Metadata Collection object from the Sources section in the Toolbox onto the designer. The ADO.Net Metadata Collection object provides metadata to the database we want to read the data from. However, if you are working with file sources such as Excel or Delimited, you can use the File System Items Source to provide metadata for your source files.

Right-click on the ADO.Net Metadata Collection object’s header, and select Properties.

This will open a new window where you will need to provide details to establish a connection with the database. Once the connection is established, click Next.

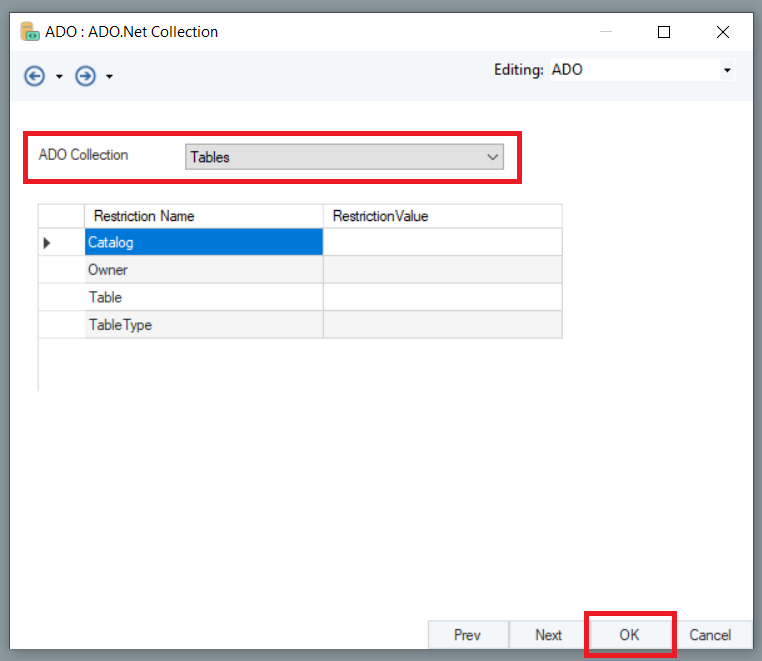

Here, you need to select the ADO Collection from the list. Click on the drop-down and select Tables from the list.

This will provide us with metadata about the Tables in the database. Now, click OK to exit the window.

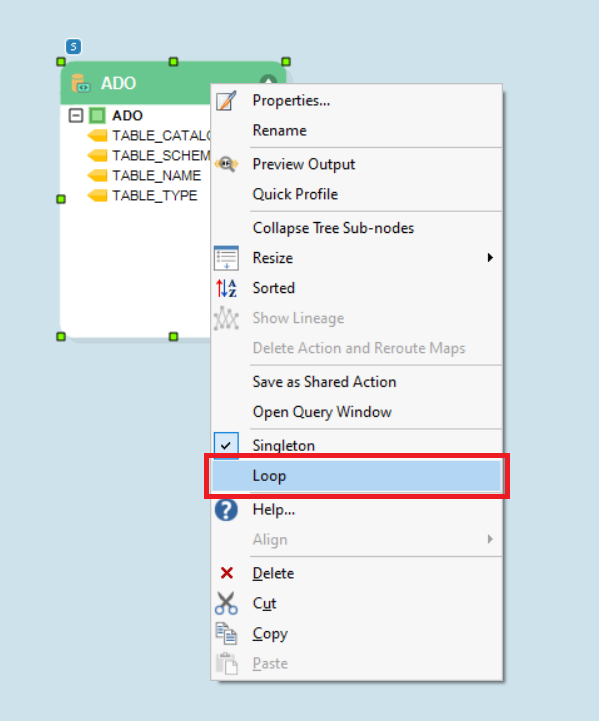

Right-click on the ADO.Net Metadata object’s header again and set it to run on Loop. This is because we have multiple tables in our database, and we want to process them all through the dataflow.

Now, drag a Run Dataflow task object from the Workflow Tasks section of the Toolbox, and drop it onto the designer.

Map the Ado.Net object from the header node to the RunDataflow task.

Now, right-click on the RunDataflow task object’s header and select Properties.

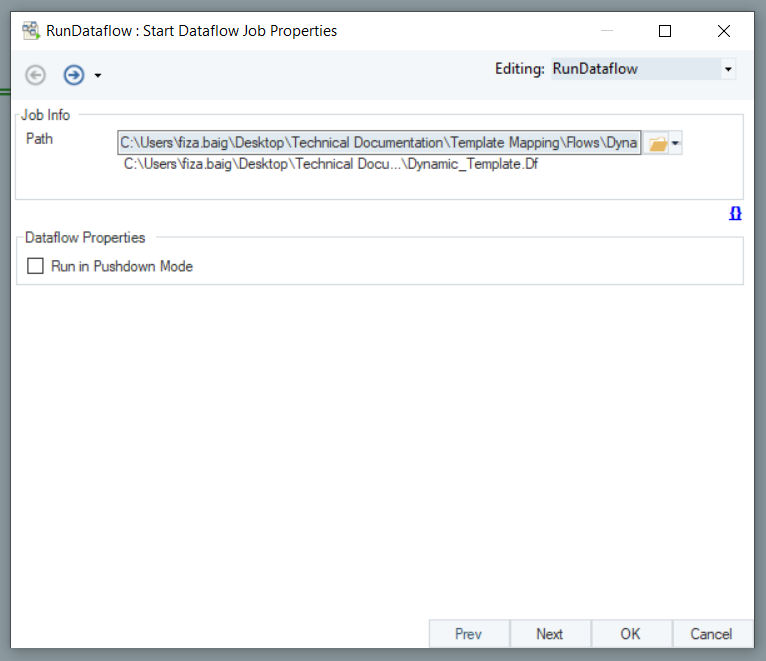

This will open a new window where you will need to provide the Path to the template dataflow. Click OK.

Now expand the Input node inside the RunDataflow task object and map the TABLE_NAME field from the ADO.NET object to the TBLName field in the RunDataflow task object.

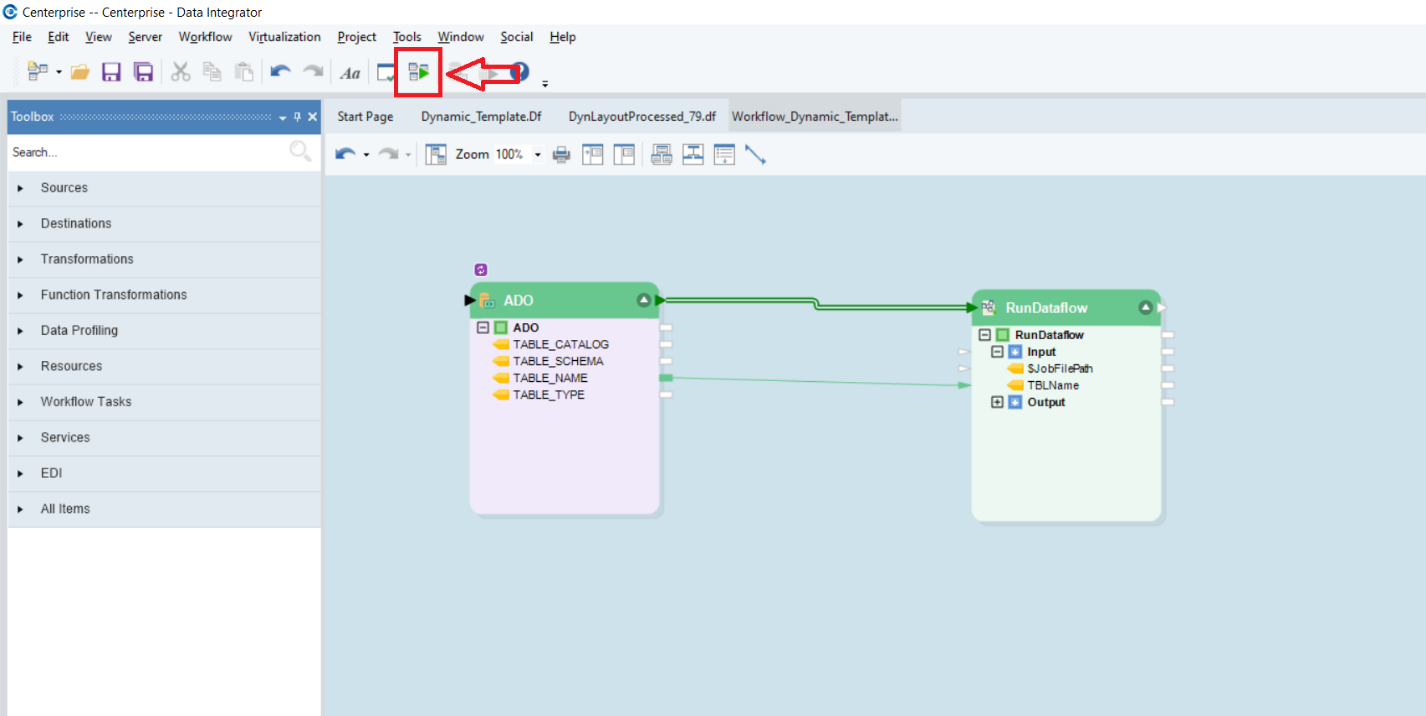

Our workflow is now ready for run. Save it to your desired location and click the Start Job icon located in the main toolbar.

This will start the job. You can see the progress in the Job Progress window.

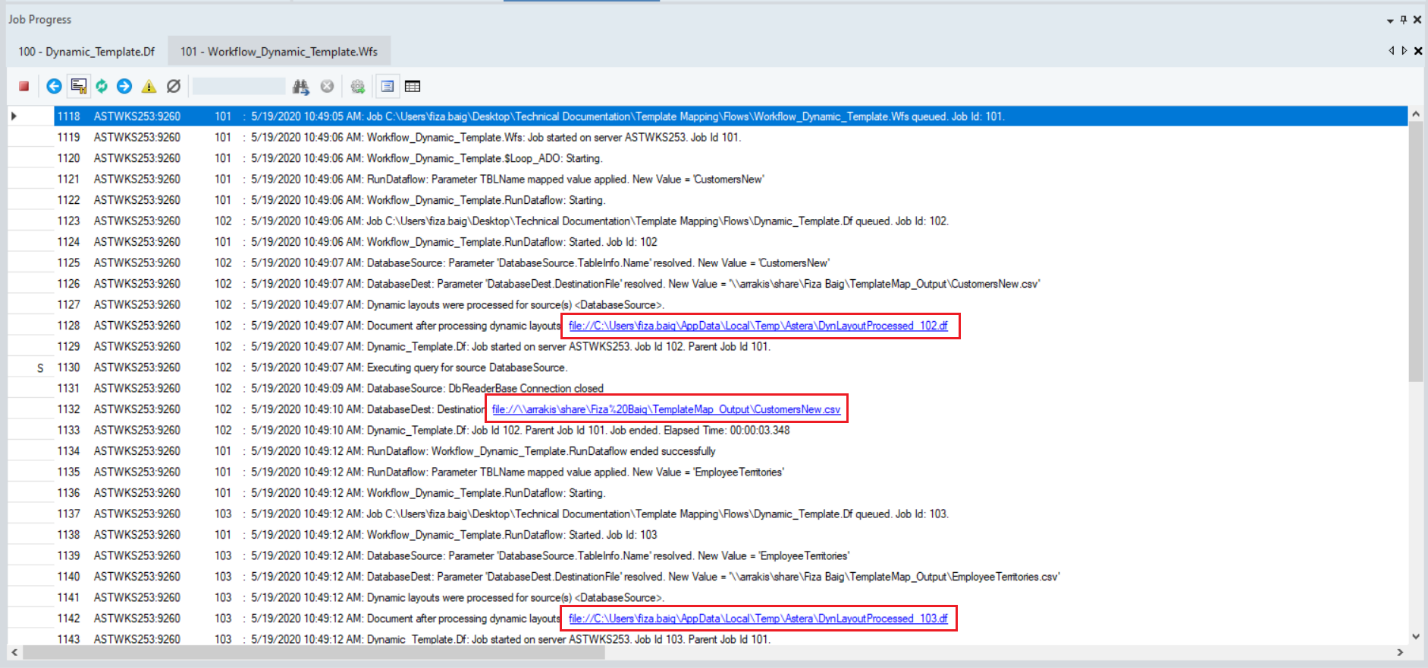

You can see that all the tables in the database have been processed sequentially through the template dataflow and a new dataflow has been generated automatically for each table. You can open these dataflows as well as output files by clicking on the links in the job trace.

The output files too have been generated at the specified location.

As mentioned earlier, you need to be logged on to the Astera Data Stack to be able to access and open the auto-generated dataflows in Astera.

The workflow can now be deployed on Astera's built-in Scheduler to be executed automatically, at a time and frequency of your choice.

This concludes using the Dynamic Layout/Template Mapping Feature in Astera. Please note that this is a beta version of the feature. The functionality is still in the testing phase and could change as we get user feedback on this feature. Should you have any suggestions or feedback, or come across a bug, please report to our or email us at .
