Subflow Transformation
Was this helpful?
Was this helpful?
The Subflow transformation object is used to call a Subflow that will run as part of your Dataflow. The Subflow acts like a wrapper for the objects it contains. Subflows can be seen as ‘black boxes’ inside your Dataflow, simplifying and streamlining the Dataflow design, increasing reusability, achieving an easier-to-understand view of your Dataflow, and possibly eliminating the need to know what is going on inside the Subflow so that you can focus on the output it creates. Over time, if the logic inside your Subflow changes, you can modify the Subflow, and the modified Subflow can now be used by the Dataflow calling your Subflow.
Subflows can be nested, meaning that a Subflow can call other Subflows. The output of the Subflow can be fed into downstream objects on your Dataflow, just like the output of any Dataflow object.

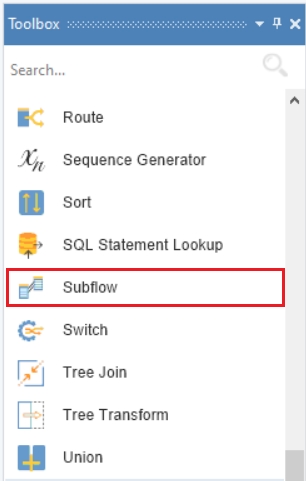

To add a Subflow transformation object, drag the Subflow object from the Transformations section in the Toolbox and drop it on to the dataflow designer.

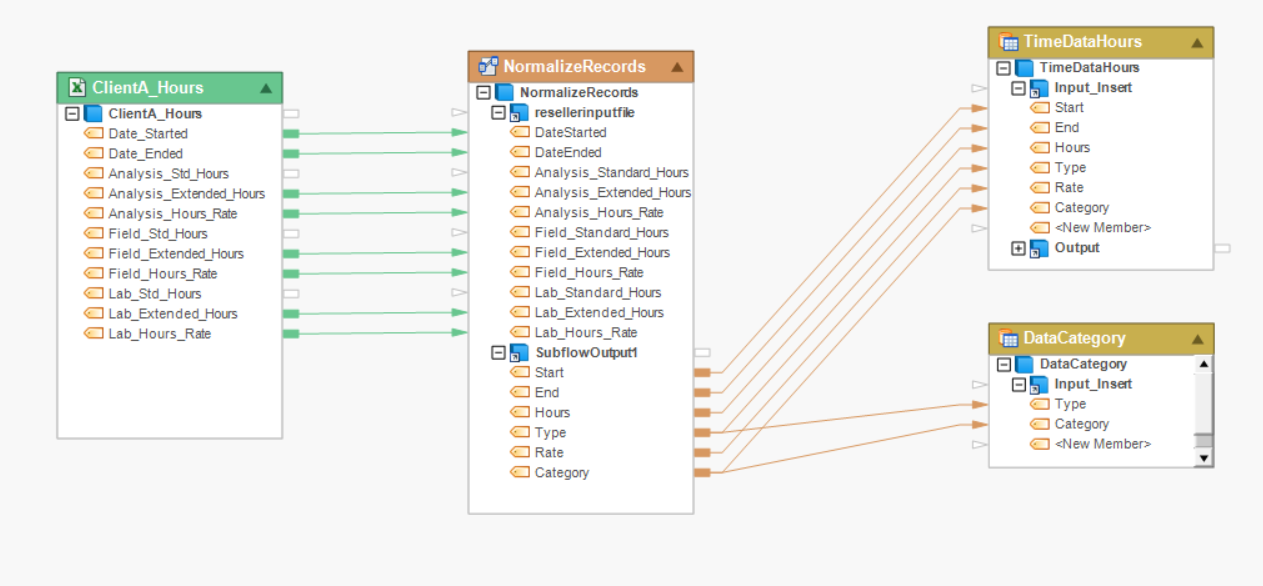

An example of what a Subflow object might look like is shown below.
To configure the properties of a Subflow object after it was added to the dataflow, right-click on its header and select Properties from the context menu. The following properties are available:
Subflow Properties window:
Enter the file path of your subflow in the Path input. Using UNC paths is recommended to allow for remote execution of your dataflow on a server.
General Options Window: This window shares options common to most objects in the dataflow.
Clear Incoming Record Messages: When this option is checked, any messages coming in from objects preceding the current object will be cleared. This is useful when you need to capture record messages in the log generated by the current object, and filter out any record messages generated earlier in the dataflow.
Do Not Process Records with Errors: When this option is checked, records with errors will not be outputted by the object. When unchecked, records with errors will be outputted by the object, and a record message will be attached to the record. This record message can then fed into downstream objects in the dataflow, for example a destination file that will capture record messages, or a log that will capture messages, as well as collect their statistics.
The Comments input allows you to enter comments associated with this object.
Creating a Subflow is similar to creating a regular Dataflow, because a Subflow is essentially a Dataflow or a sub-Dataflow. The difference between the two, however, is that a Subflow may optionally have an input and output.
The Subflow input makes it possible to feed data into the Subflow from an upstream object on the Dataflow that calls the Subflow. The Subflow’s output is used to send data to the downstream Dataflow object connected to the Subflow.

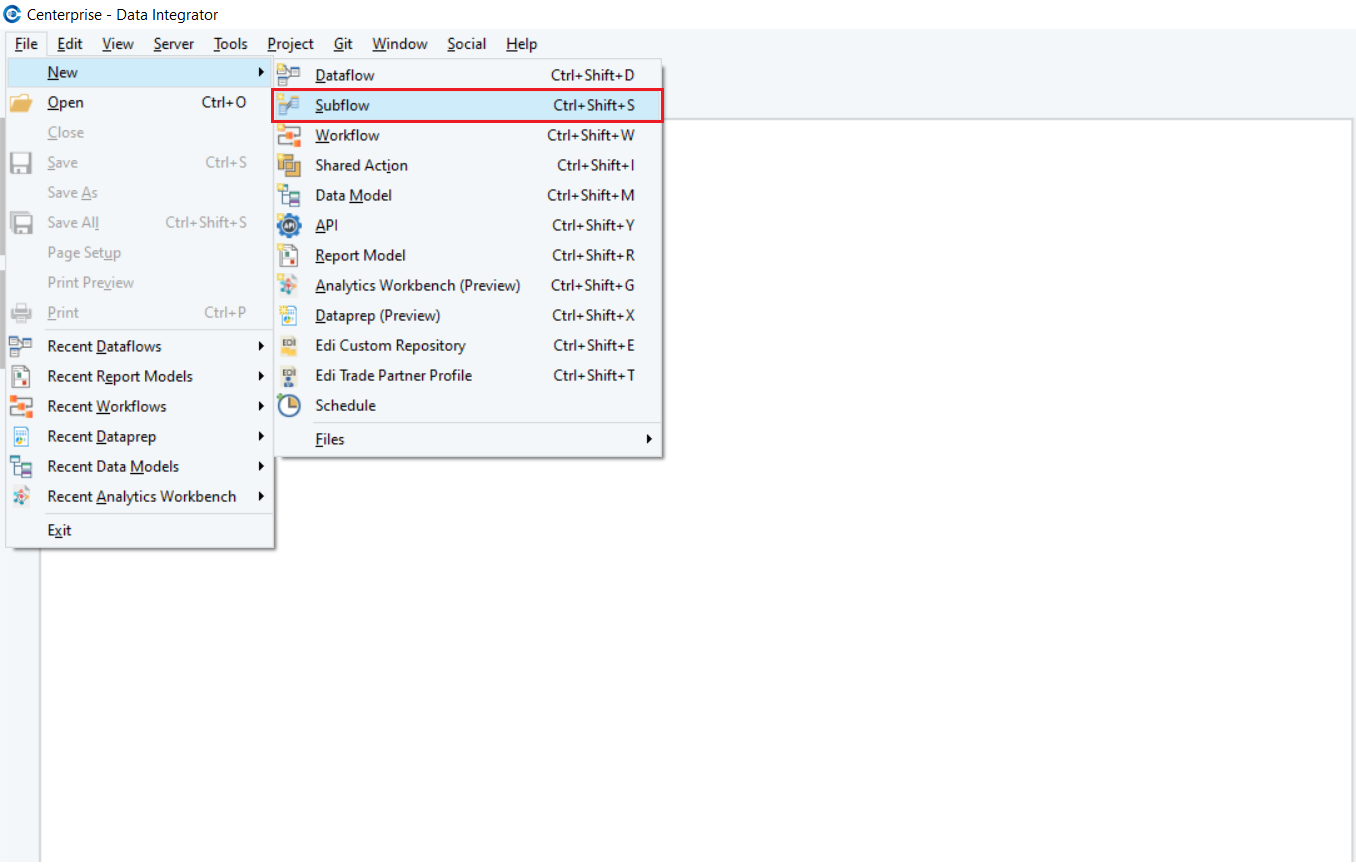

To create a new Subflow, go to File > New > Subflow on the main menu.
Designing a Subflow is similar to designing a Dataflow. For more information on working with Dataflows, see the Creating Dataflow chapter.
When a Subflow tab is active, the flow Toolbox has an additional group labeled Subflow. This group has two objects that control the input and output properties of your subflow.
Subflow Input object is a connector controlling the input layout of your Subflow. Any data feeding into the Subflow will pass through the Subflow Input when the Subflow is called by a Dataflow or another Subflow.

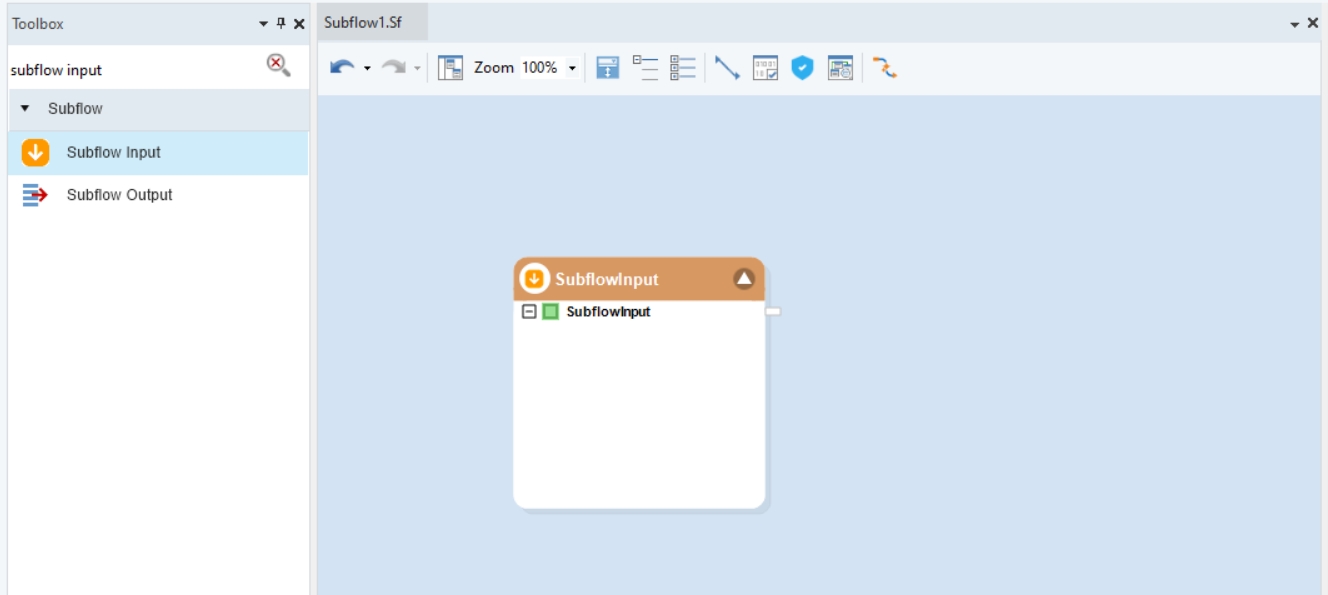

To add the Subflow Input, drag the Subflow Input object from the Subflow group in the Toolbox and drop it on to the Subflow designer.
To configure the properties of a Subflow Input object after it is added to the Subflow, right-click on it and select Properties from the context menu. The following properties are available:
Layout Builder screen:
Meta Object Builder screen allows you to add or remove fields in the field layout, as well as select their data type. The fields added in Meta Object Builder will show in the SubflowInput1 node inside the object box.
General Options screen:
This screen shares the options common to most objects on the dataflow.
Subflow Output object is a connector controlling the output layout of your subflow. Any data leaving the subflow will pass through the Subflow Output when the subflow is called by a dataflow or another subflow.

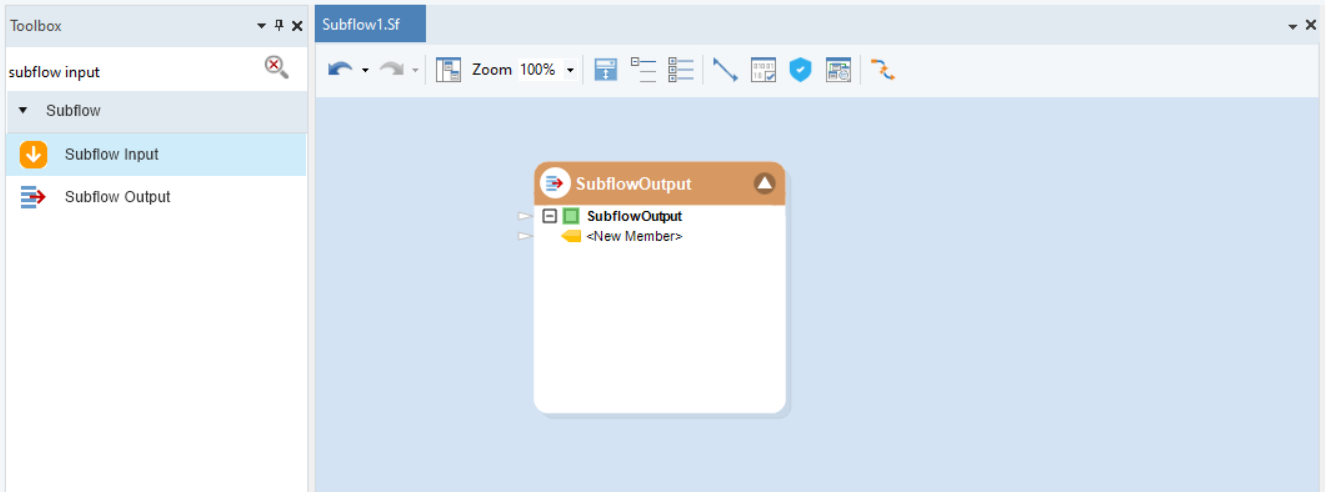

To add the subflow output, drag the Subflow Output object from the Subflow group in the Flow toolbox and drop it on to the subflow.
To configure the properties of a Subflow Output object after it was added to the Subflow, right-click on it and select Properties from the context menu. The following properties are available:
Layout Builder window:
The Meta Object Builder window allows you to add or remove fields in the field layout, as well as select their data type. The fields added in the Meta Object Builder will show in the SubflowOutput1 node inside the object box.
General Options window:
This screen shares the options common to most objects on the Dataflow.

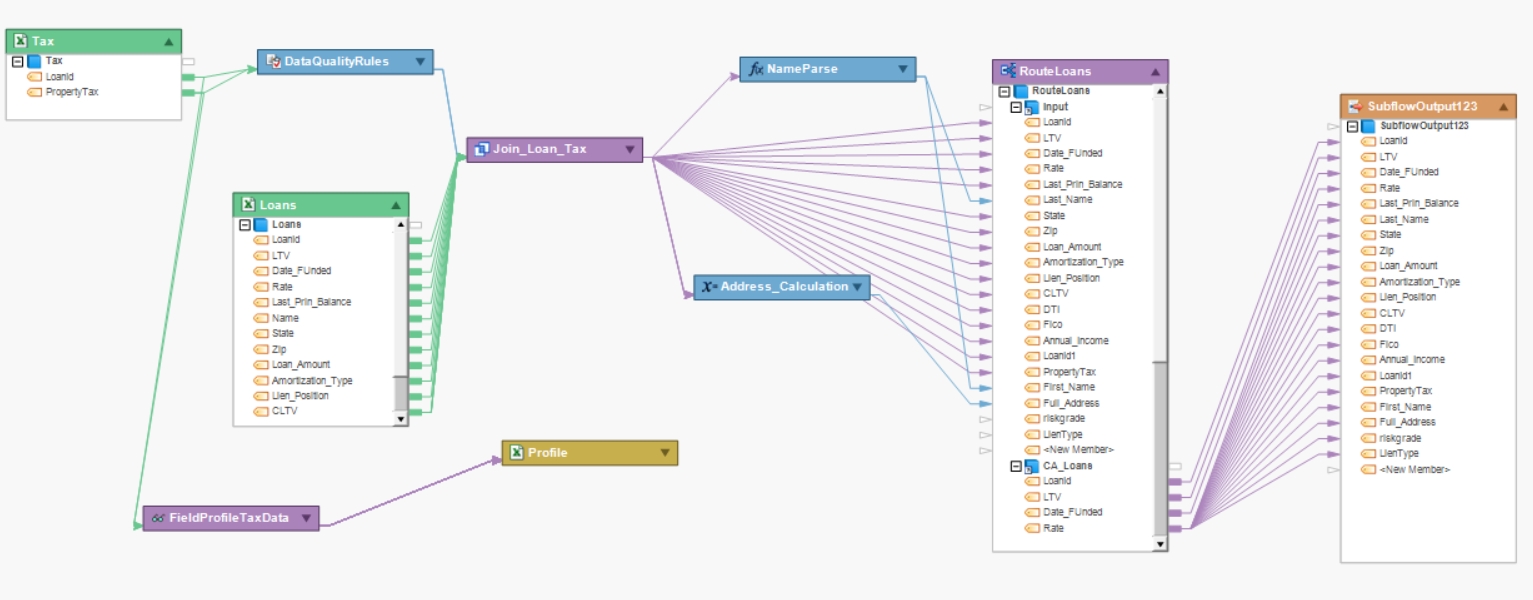

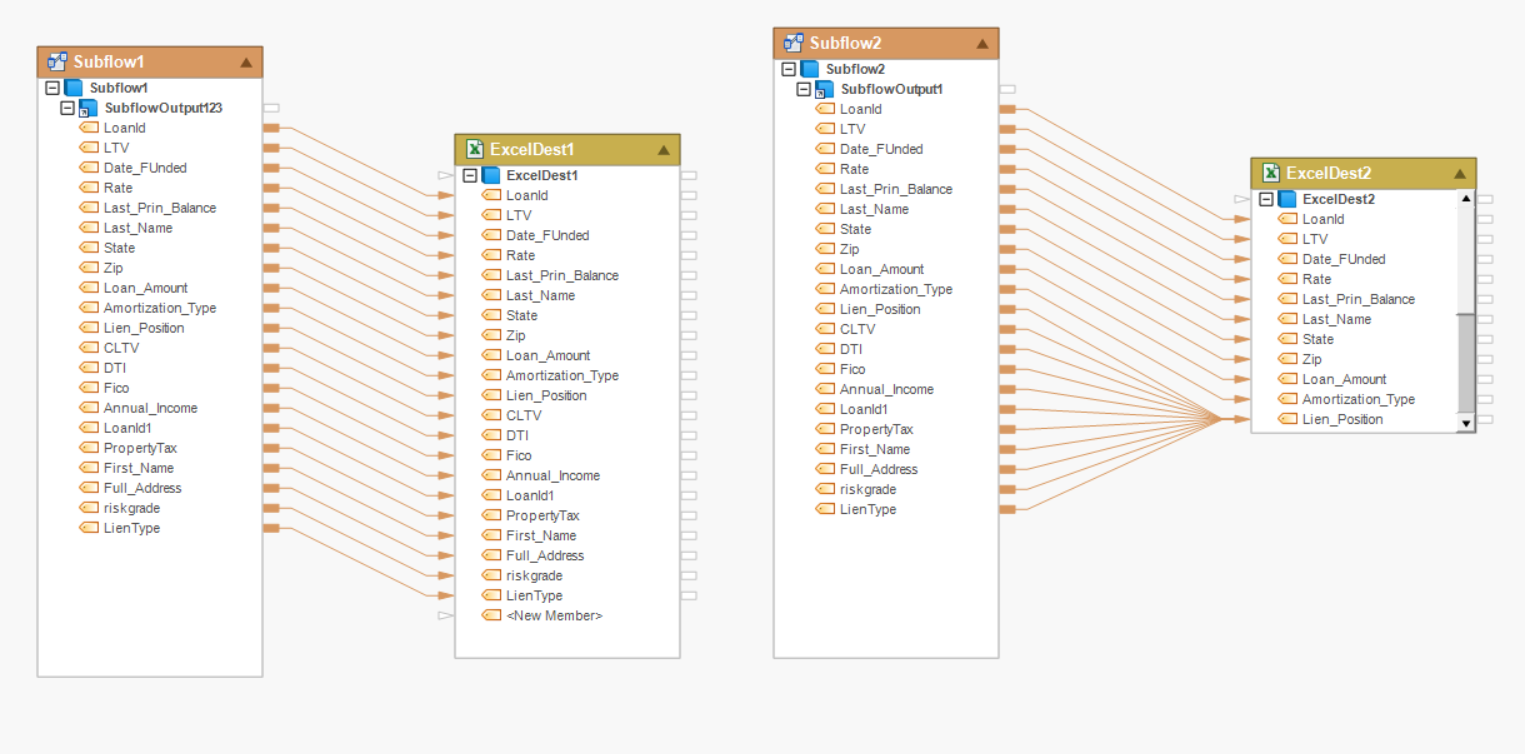

Some examples of using Subflows are shown below:

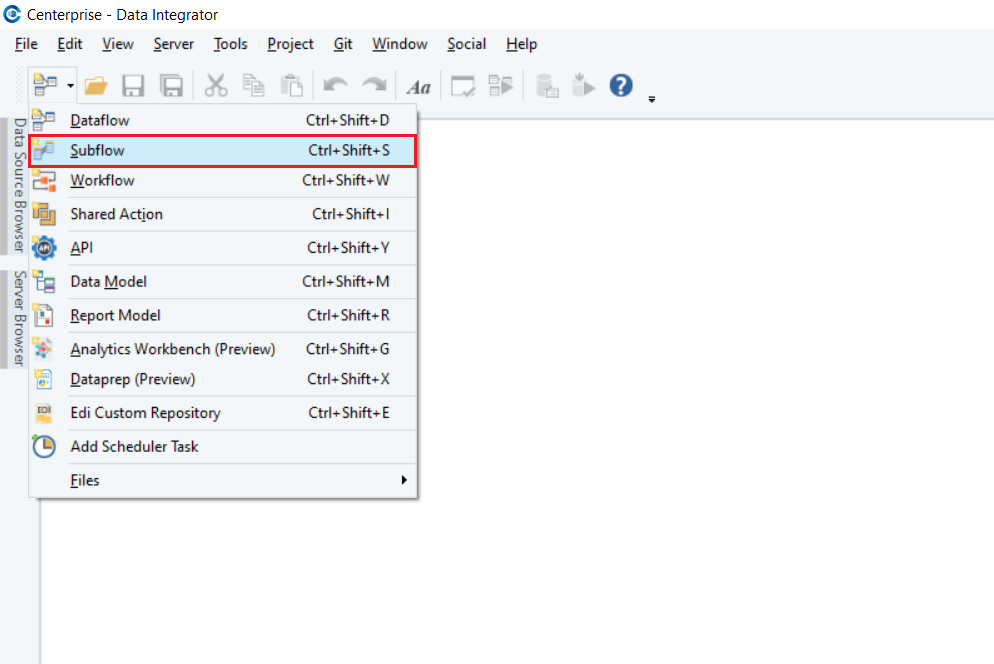

Or you can expand the dropdown located in the main toolbar and select Subflow as shown below.
