# Deploying Astera Data Stack on Oracle Cloud

Users can deploy Astera Data Stack on Oracle Cloud through two methods.

### Deploying Astera Data Stack using Oracle Cloud Marketplace

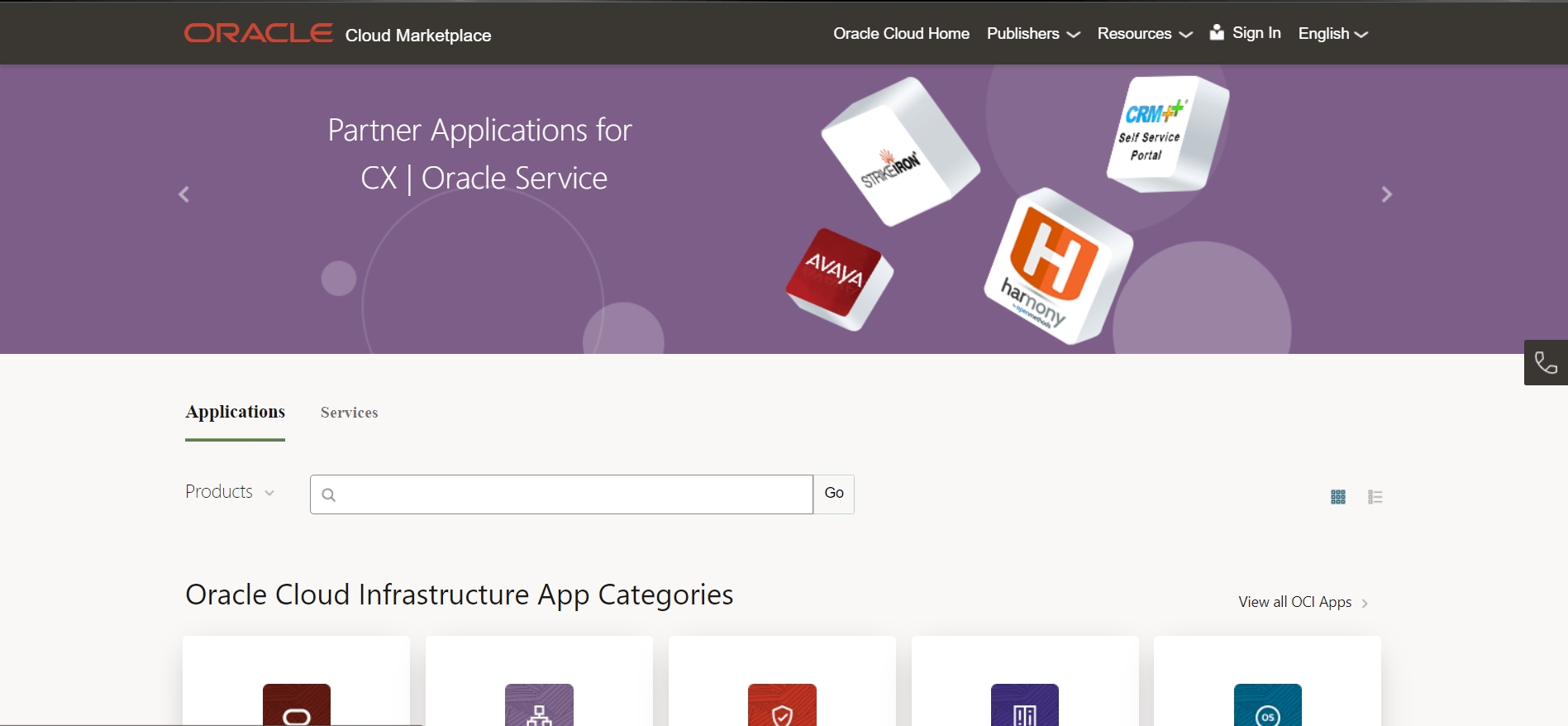

1. First, open the site which houses the Oracle Cloud Marketplace. Simply click [here](https://cloudmarketplace.oracle.com/marketplace/en_US/homeLinkPage) to be redirected to the website.

It will look like this,

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/4tGuUG87TLzHqvvERt9c/1.png)

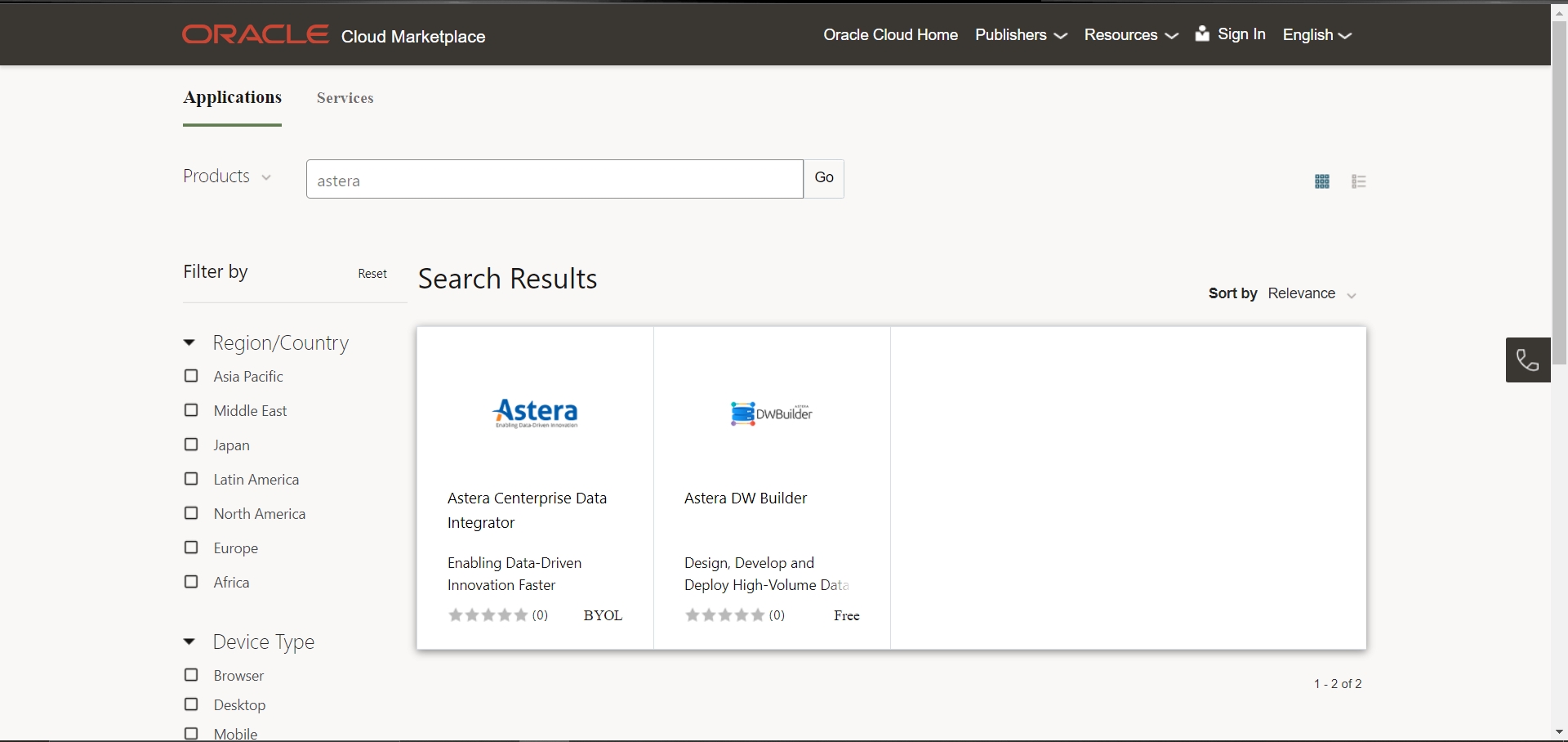

2. Go to the search bar and type “Astera”, then select *Go.*

You will now be led to a screen with two Astera Software products present.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/opx0wYlZgxiAcCQ5gUnN/2.png)

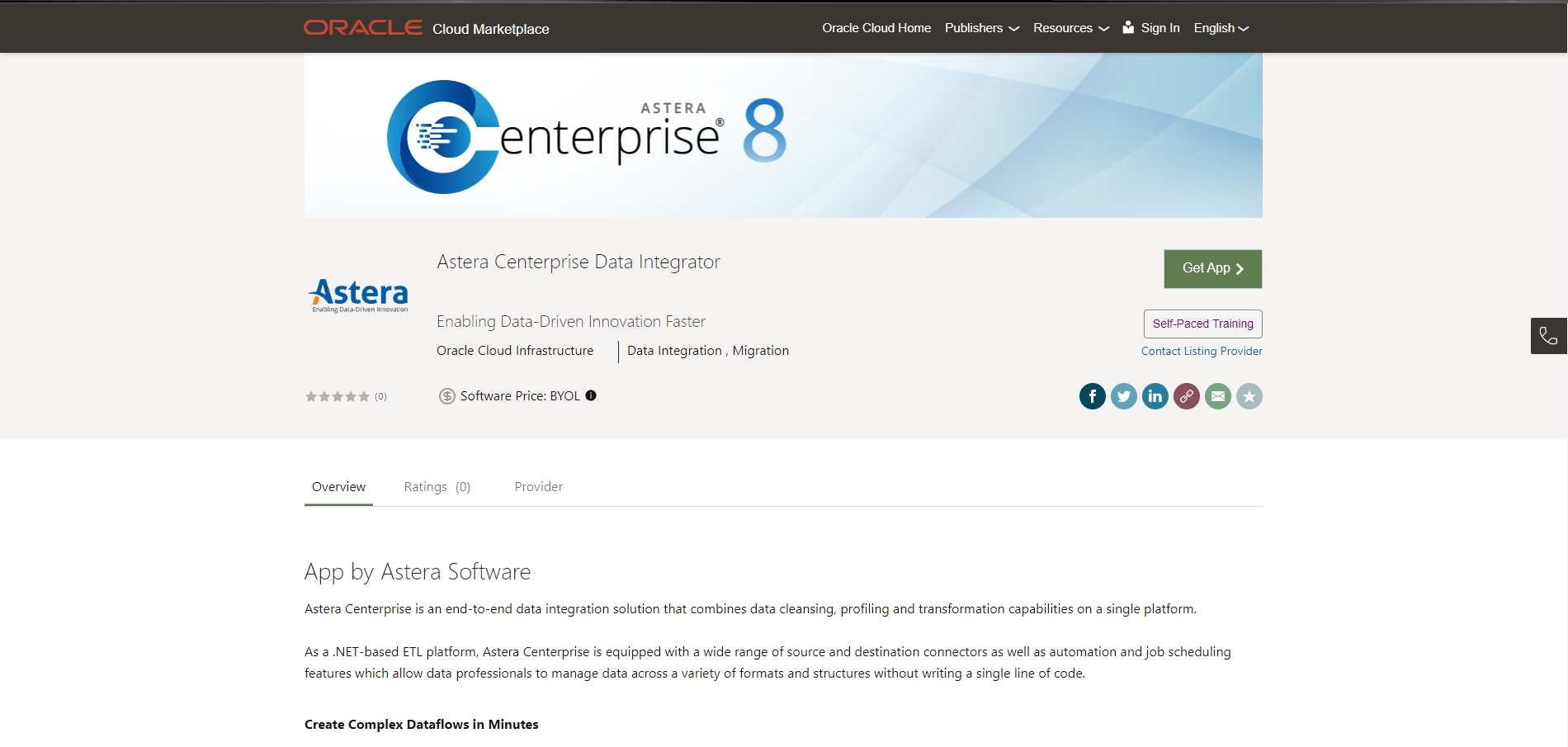

3. Select Astera and a new window will open.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/wg1SNRYvsDeBgdptVFA8/3.png)

If you scroll down, you can see information regarding the product as well as various videos and documentation related to it.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/uCl1uUN8JzkhTWv04sYQ/4.png)

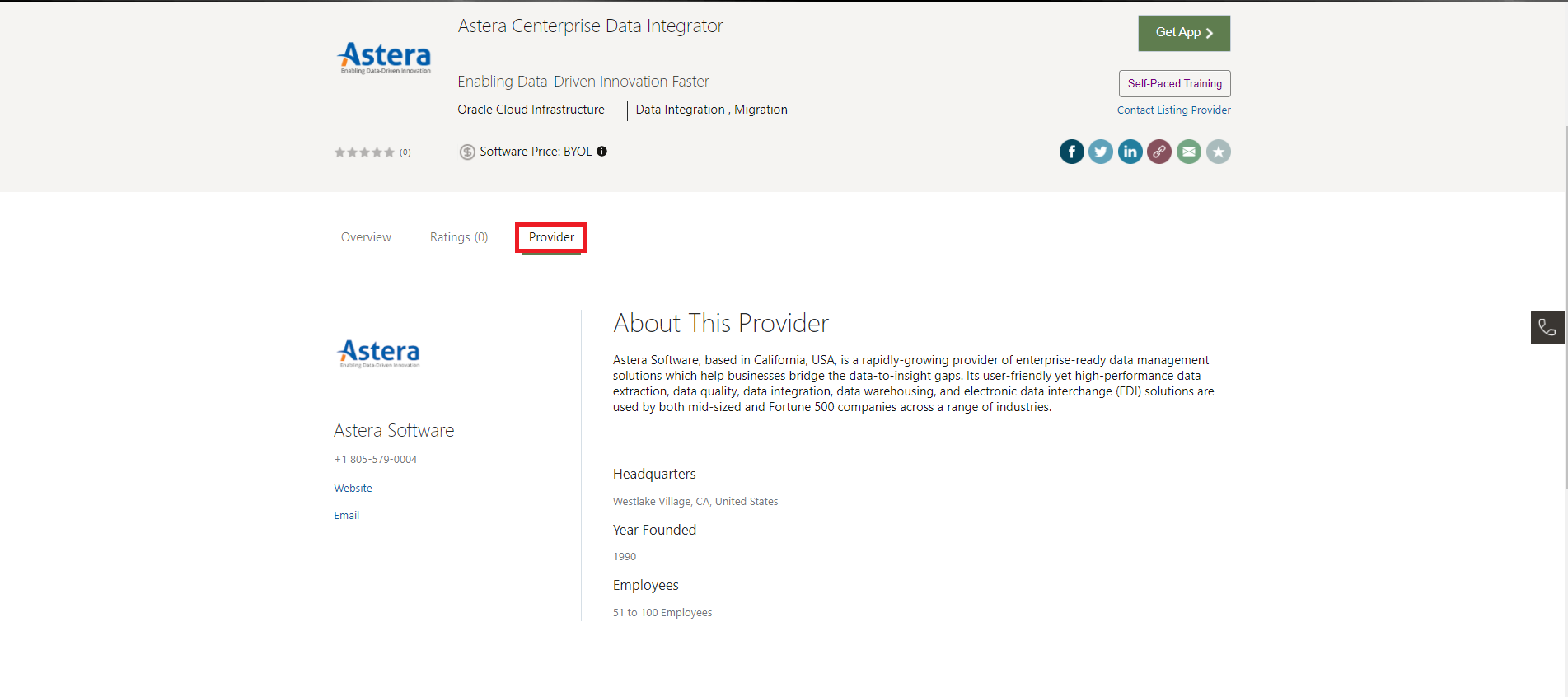

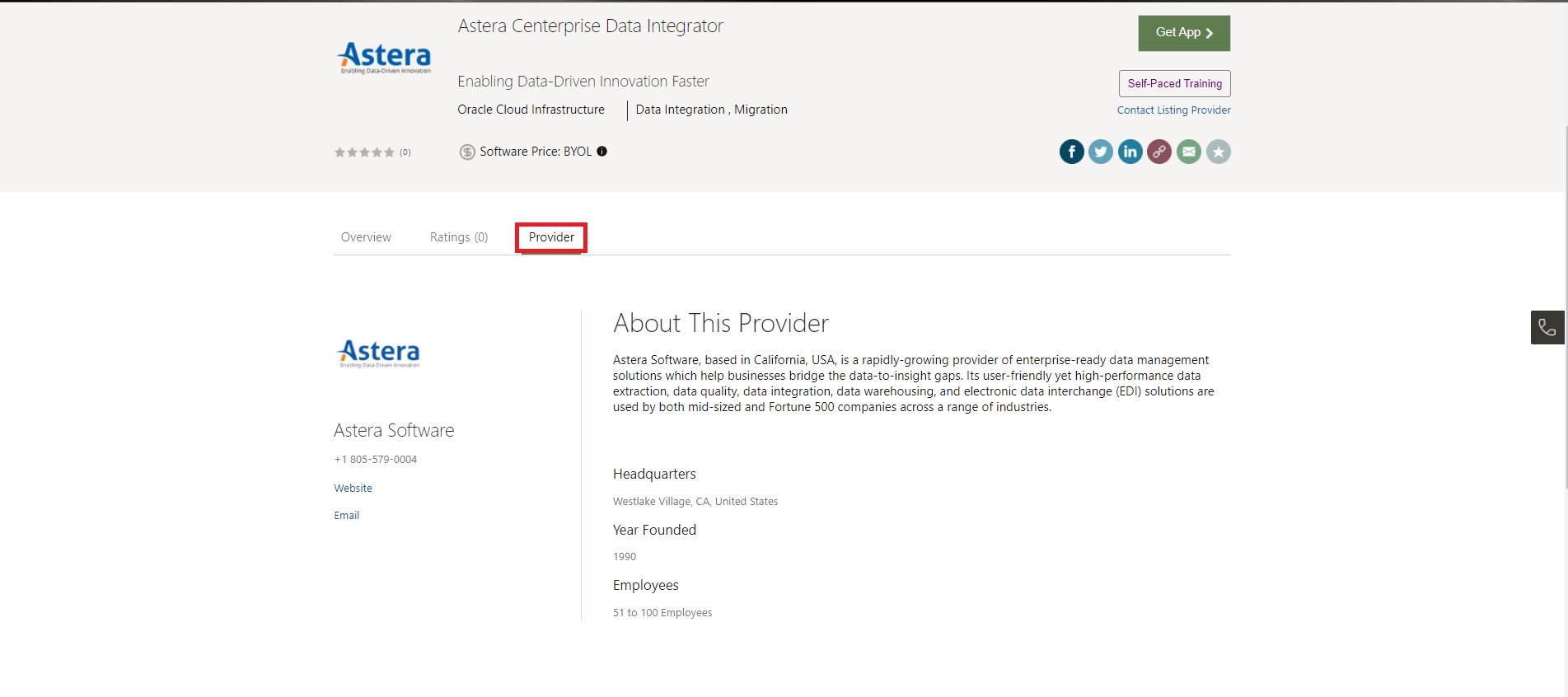

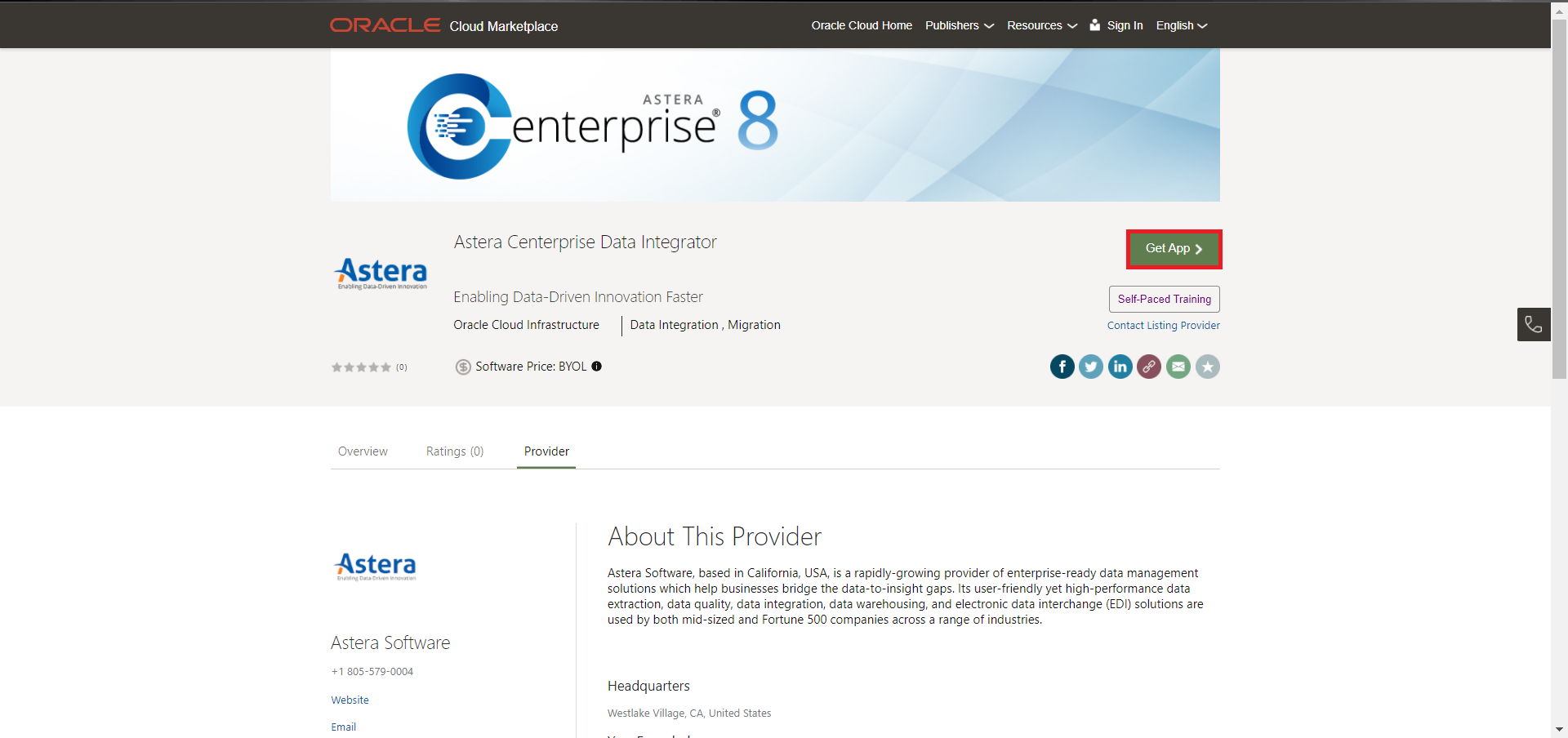

Under the *Provider* tab, you can see information regarding the company itself.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/YwPnpO15EL1R26YqBKQ7/5.png)

4. Click on *Get App*.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/7gxJyJyTTwTkN0de4X6C/6.png)

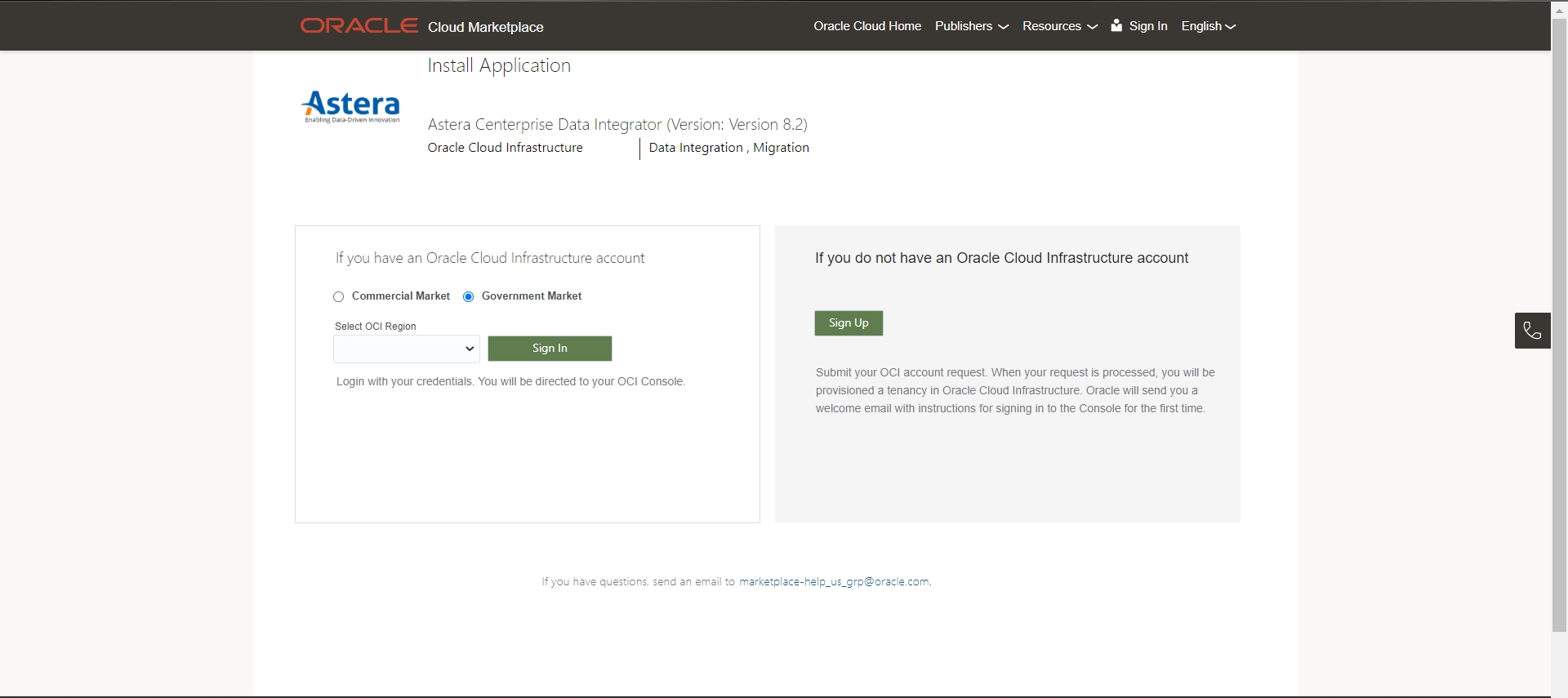

You will be taken to a new window where you will be asked to sign in to the Oracle Cloud Infrastructure Account.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/HsrVlsqqlz7KInKMp6nb/7.png)

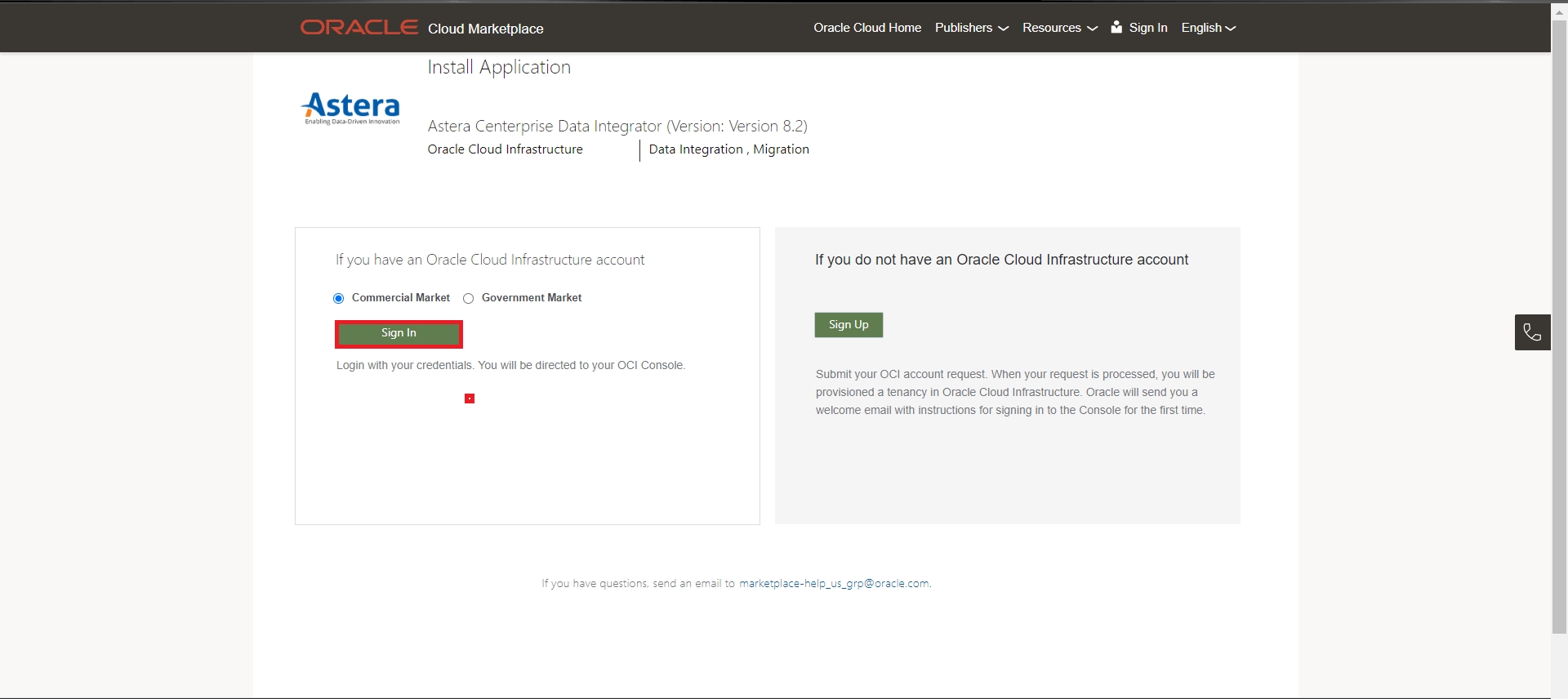

5. Select *Commercial Market* and click *Sign In*. It will redirect you to another location.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/pAFeFKtghjAdOtZPkTkI/8.png)

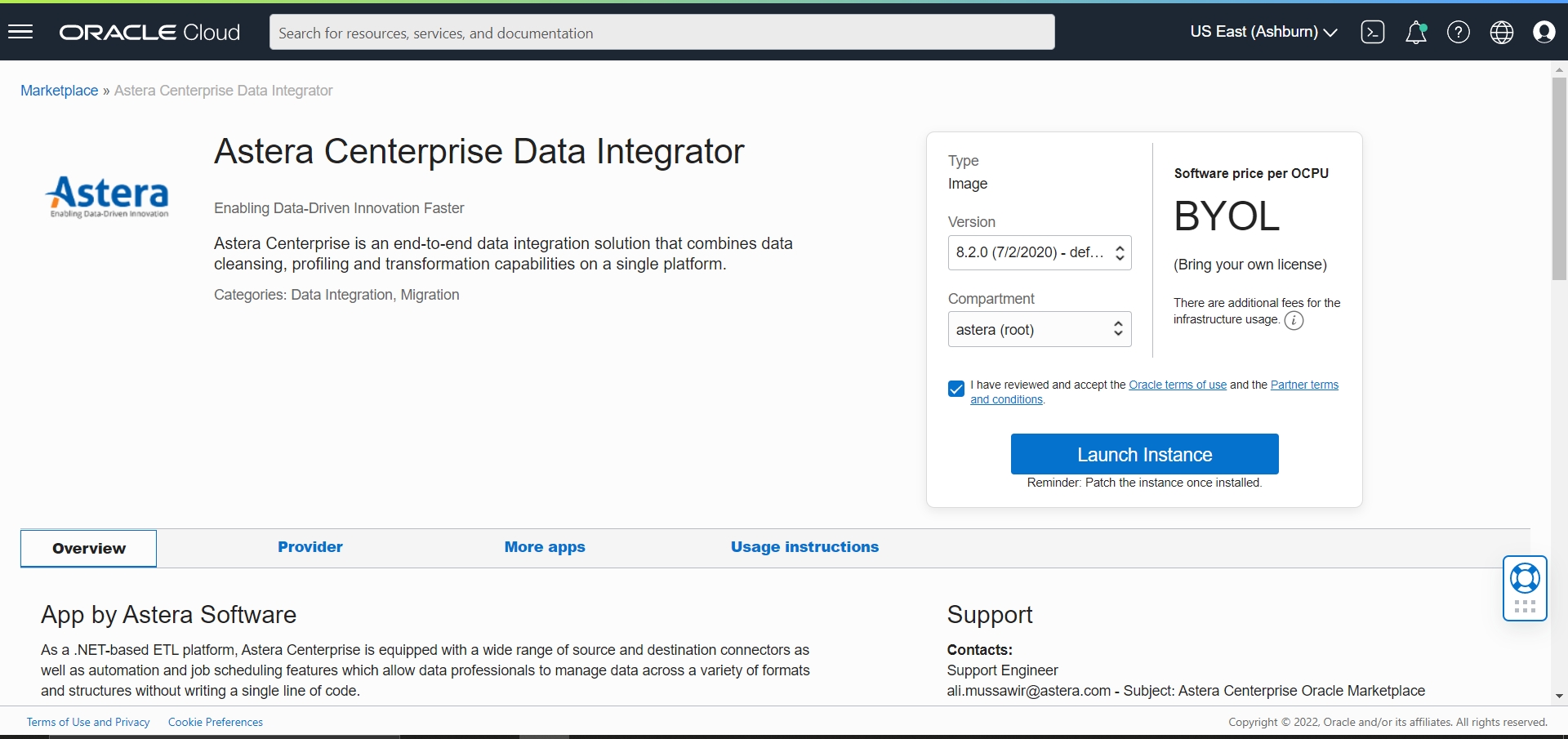

Now, the Oracle Cloud site will open.

{% hint style="info" %}
**Note:** If you are not already signed in, it will ask you to sign in to Oracle Cloud first. Otherwise, it is going to take you directly towards the site.
{% endhint %}

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/KX41Wl4IOnb1BnyA3YrK/9.png)

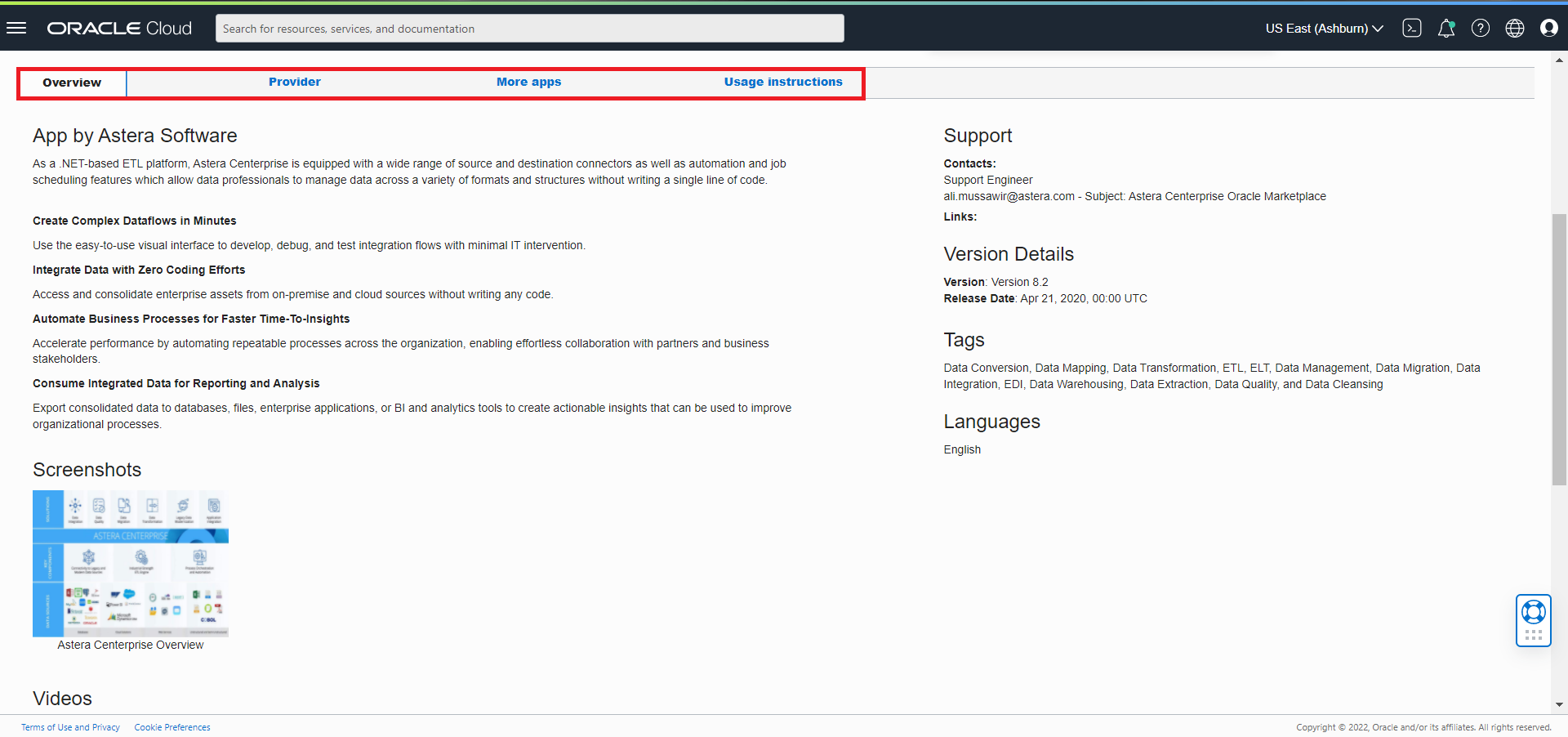

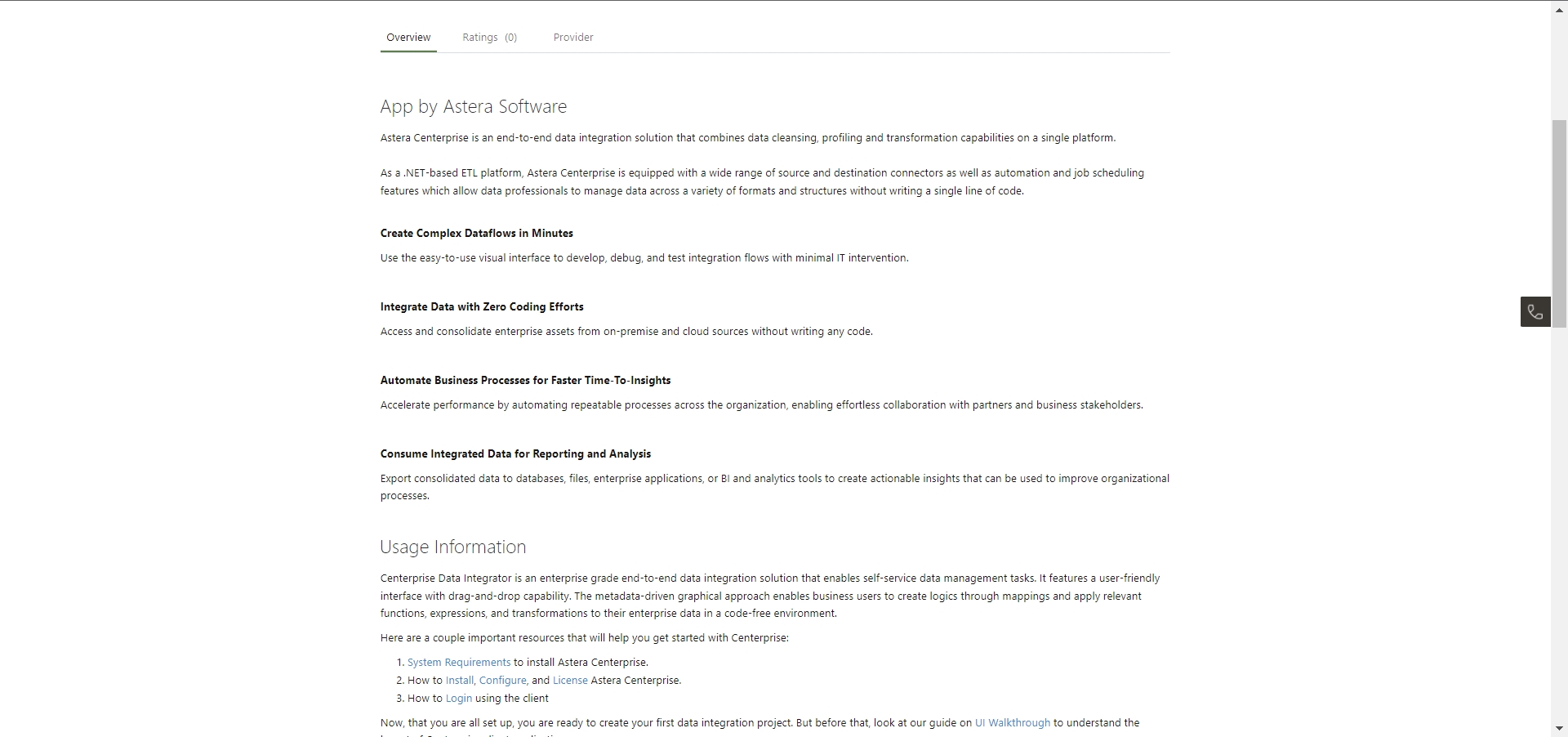

At the bottom of the page, we have these tabs:

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/rX1KRb78kVdW4SRKyfiq/10.png)

* *Overview:* Provides an overview of the product as well as its documentation and videos.
* *Provider:* Provides information on the company itself.
* *More Apps:* This shows other apps by Astera apart from this one.
* *Usage Information:* Provides step-by-step instructions on how to use the product.

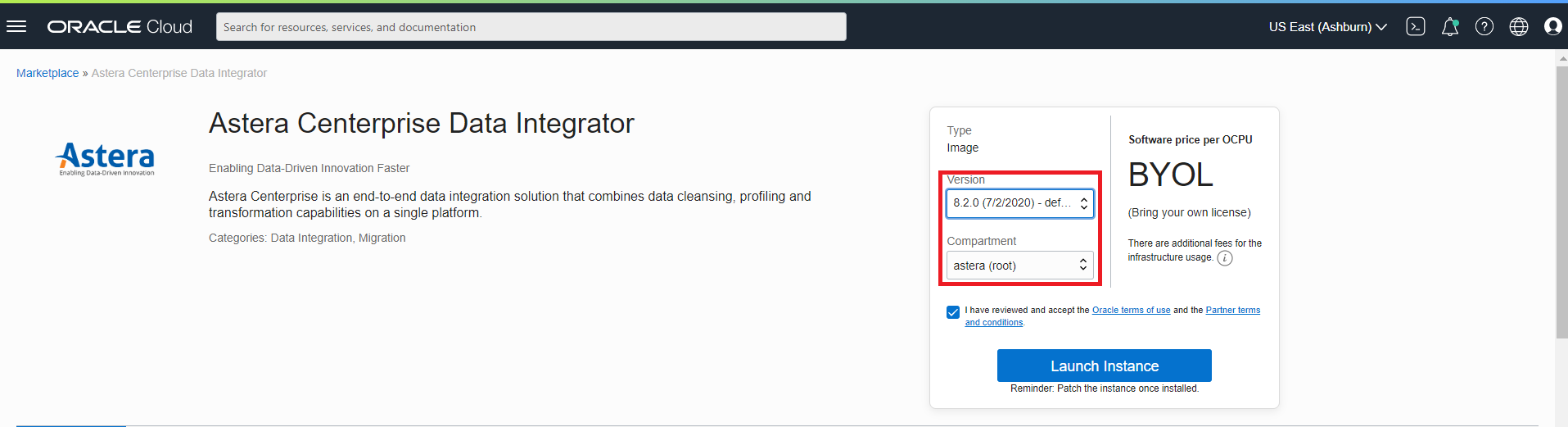

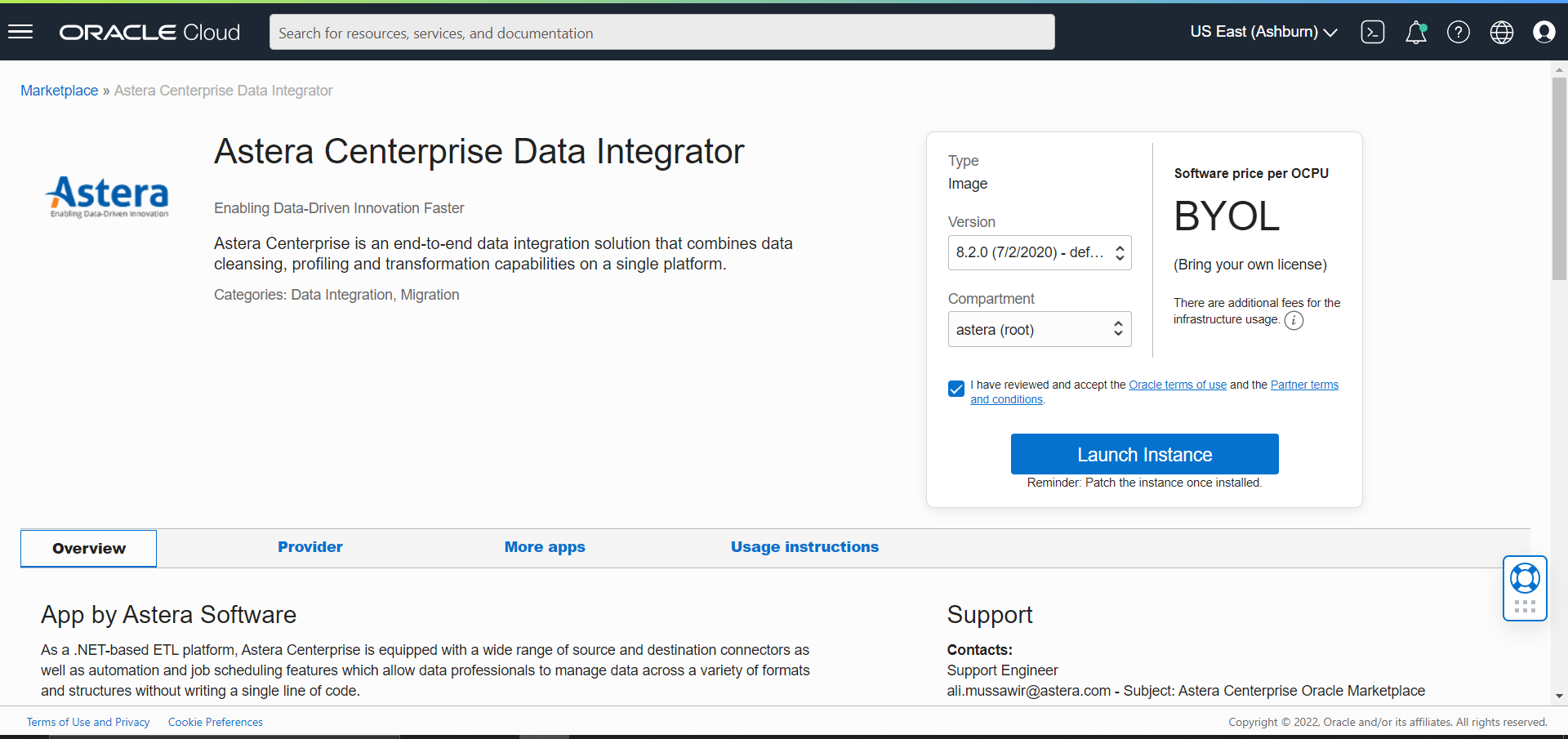

6. Once done, scroll back up and select *Version* and *Compartment*

For *Version*, select the default value and for *Compartment*, select *astera (root).*

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/M9Zx2DaXwWQZUJkgAeW5/11.png)

7. Select *Launch Instance* and you will be taken to the next screen.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/eJjwGhlZ2JKdmbHoOCmb/12.png)

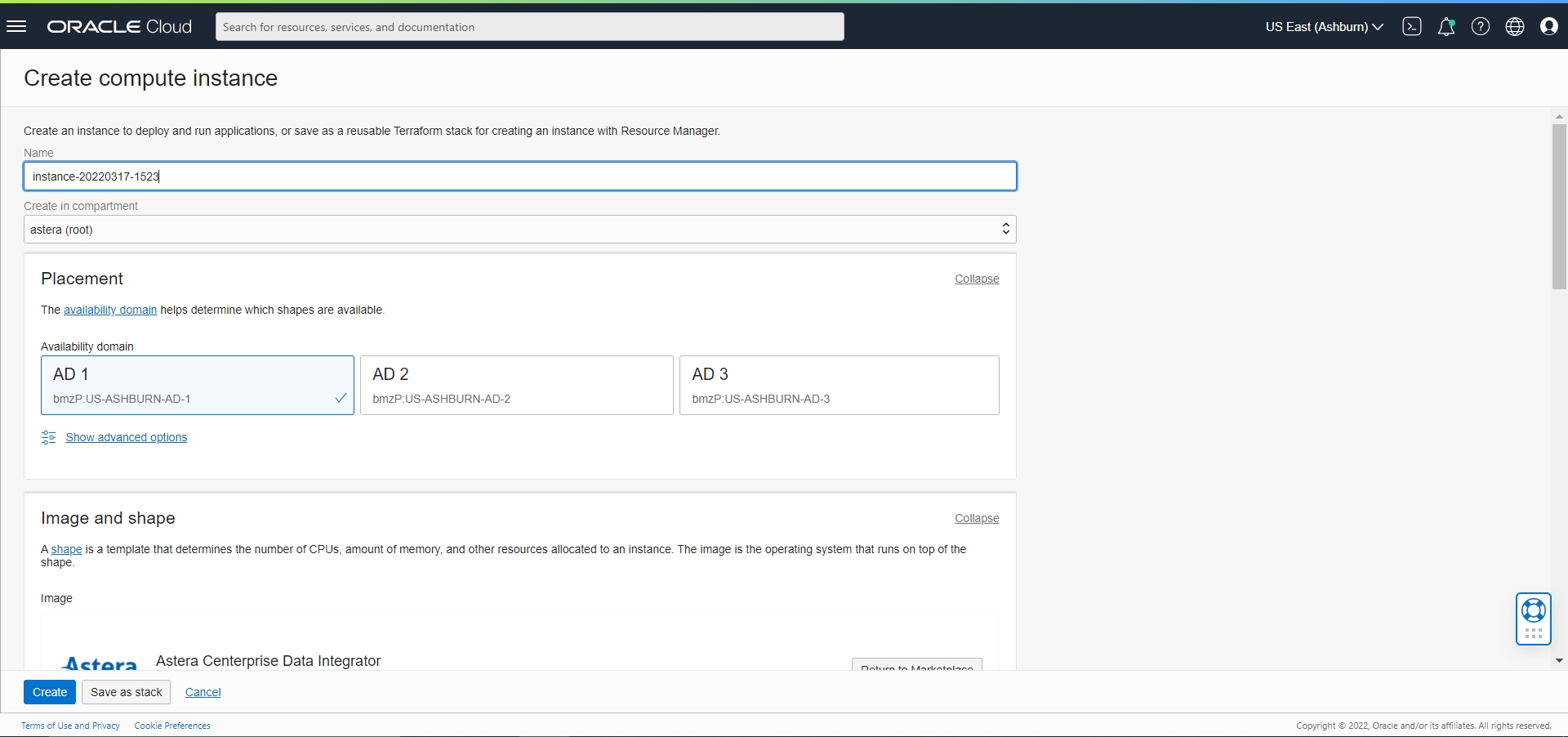

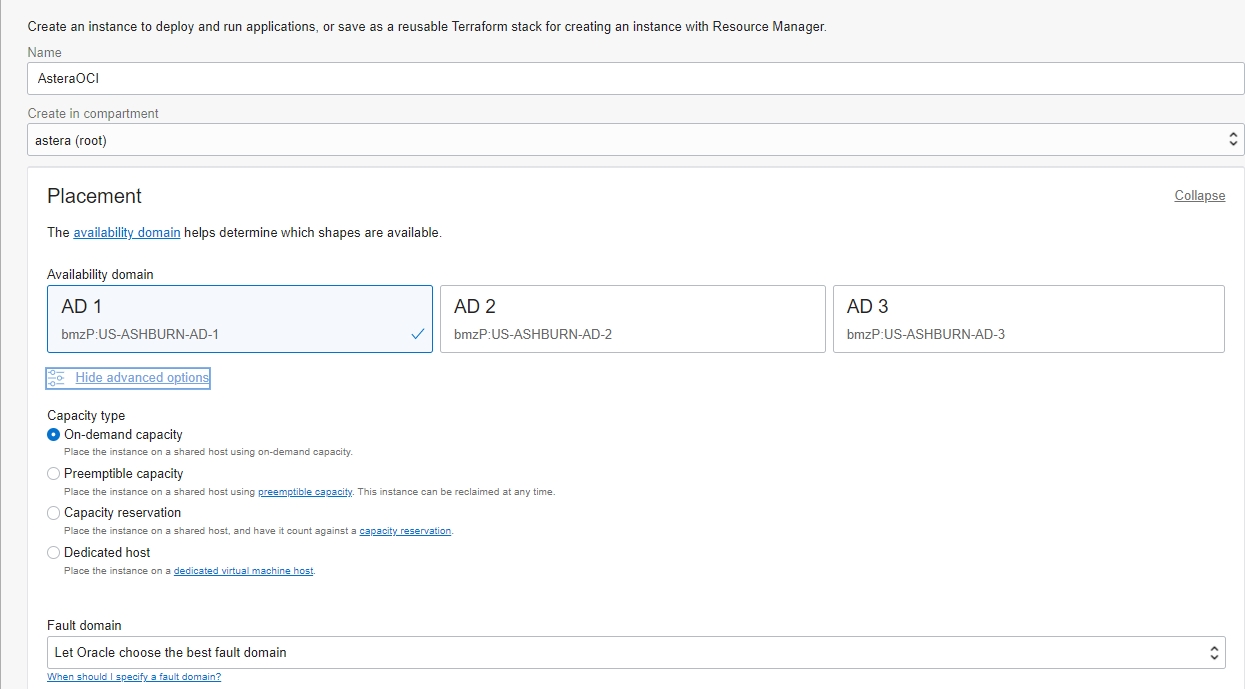

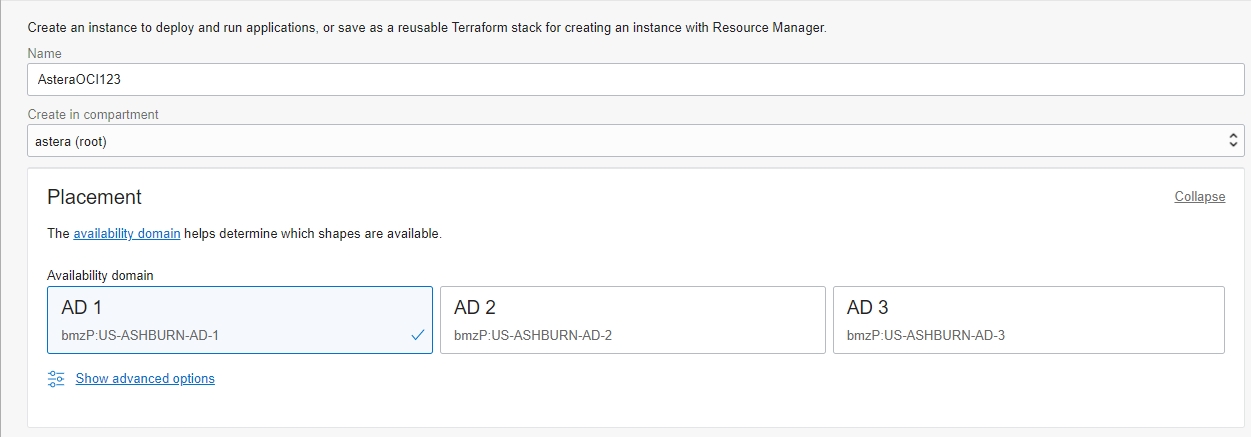

8. Next, fill in the following details:

* *Name:* Name of the instance being created. We are using the name ‘AsteraOCI’
* *Create In Compartment:* The compartment in which it is going to be created. We are using the compartment ‘astera (roots)’
* *Placement – Availability Domain*: This helps determine which shapes are available. It will be kept as the default one; ‘AD1’
* *Show Advanced Options*: These are extra options for the Availability domain. They will be kept as default.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/DVoMs2KNzrx7adSQPT7m/13.png)

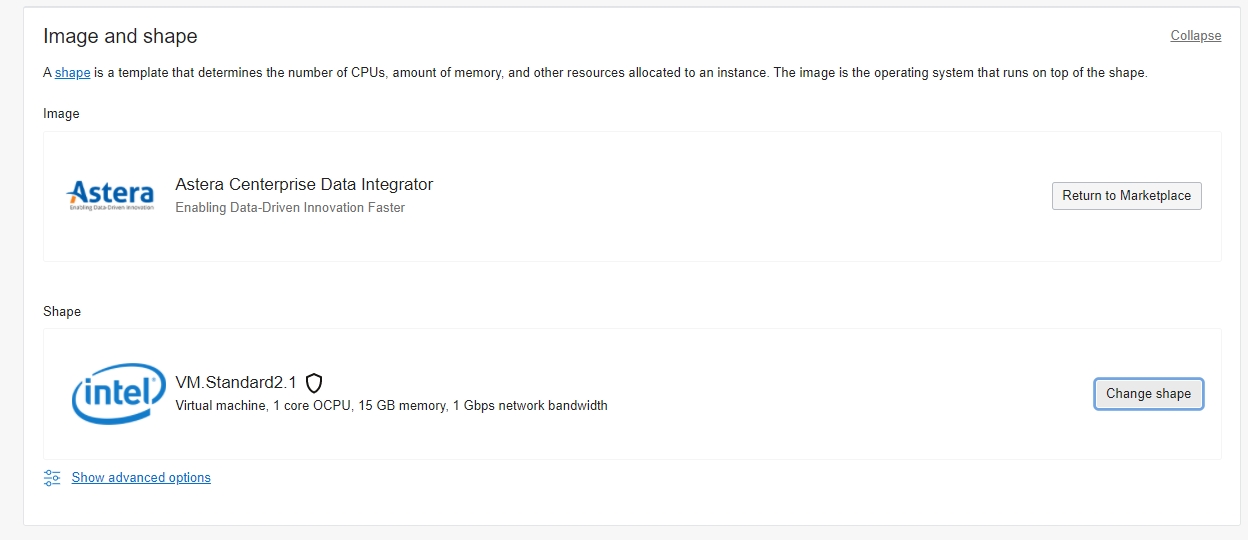

9. Scroll down and specify the following information:

* *Image:* This is the product that is being used. Here, it will be *Astera.*
* *Shape:* The specifications of the Virtual Machine, depending on the application.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/6ML95A4oHhr6QywxjJBO/14.png)

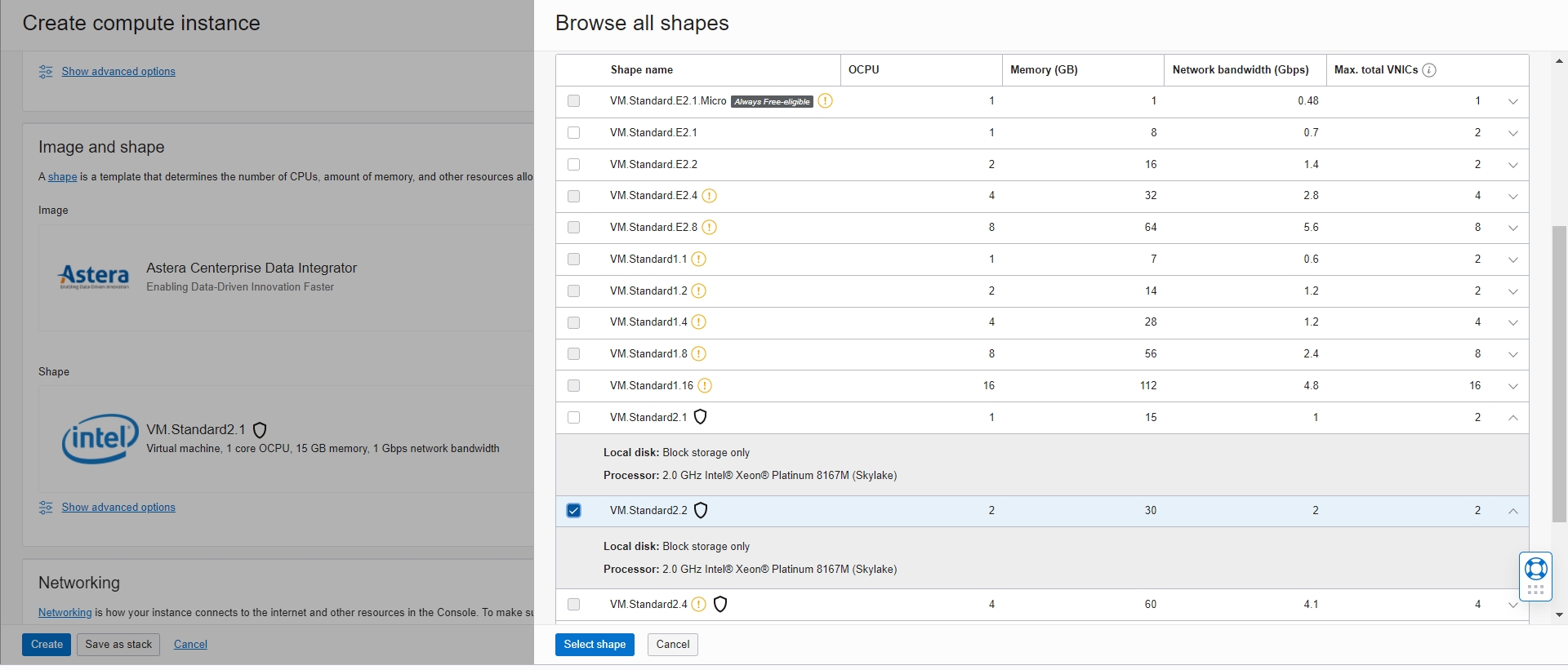

We have selected “VM.Standard2.2” for our application.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/bDPYgizBAoViCUNUrVwp/15.png)

The rest of the options will remain default.

10. Click *Select Shape* and it will be selected.

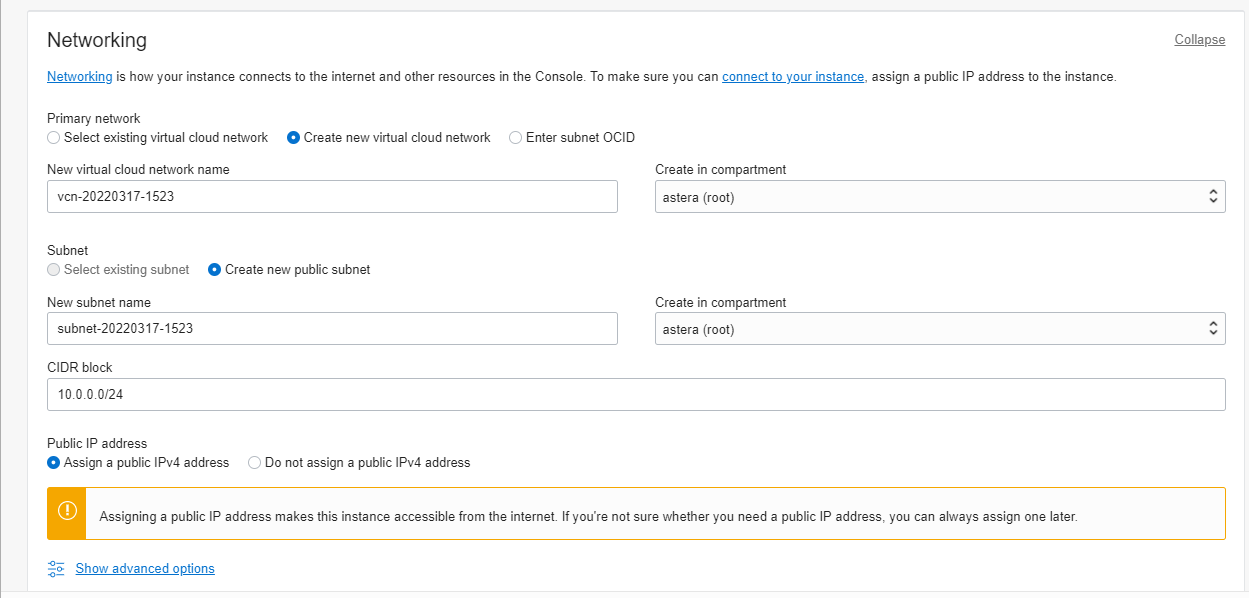

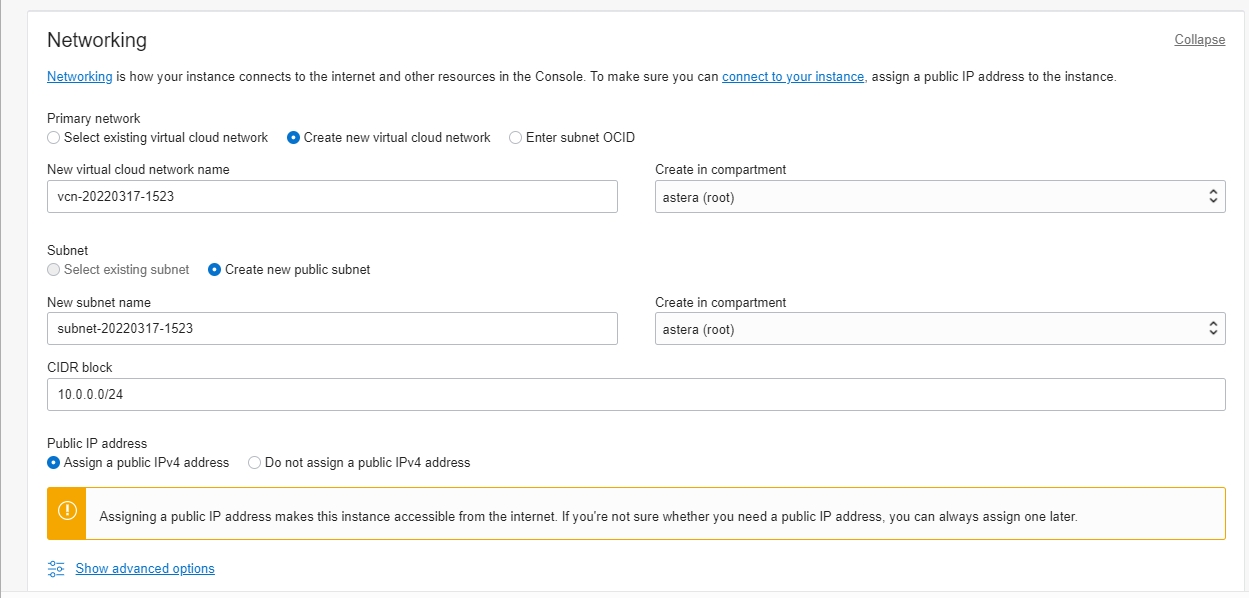

Next, we will select the *Networking* options. They will all remain set to default.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/suGG8fzdhdfYa9W2MhIh/16.png)

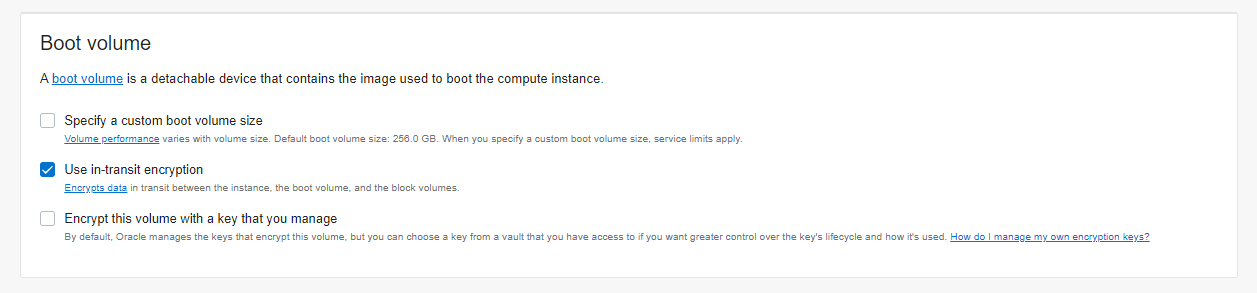

11. Scroll down to the *Boot Volume* options.

They will also be kept as default.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/HLzRAF9clmVS2bmRsLnl/17.png)

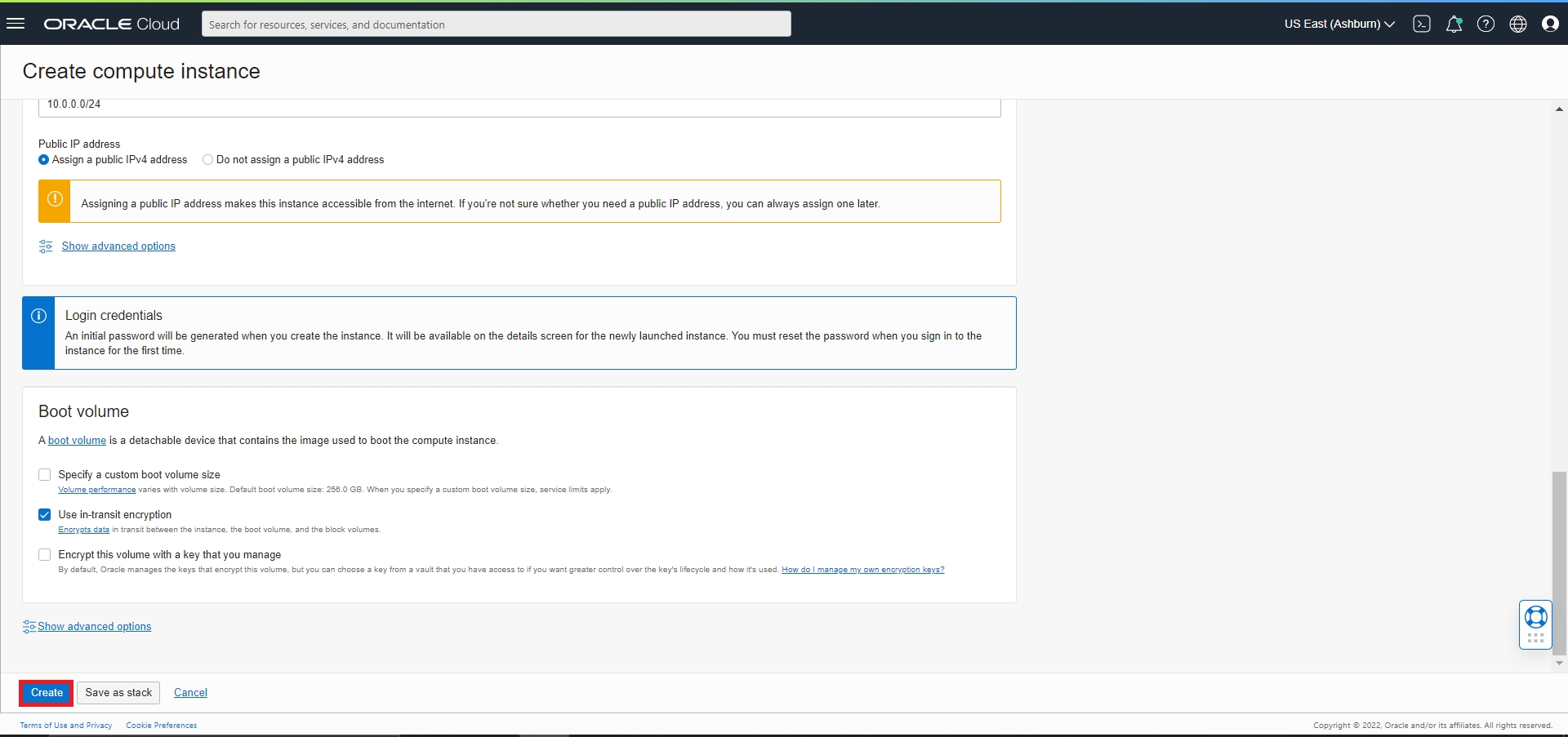

12. Click *Create*.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/Q2rPeFlY0QLzdZyjltEB/18.png)

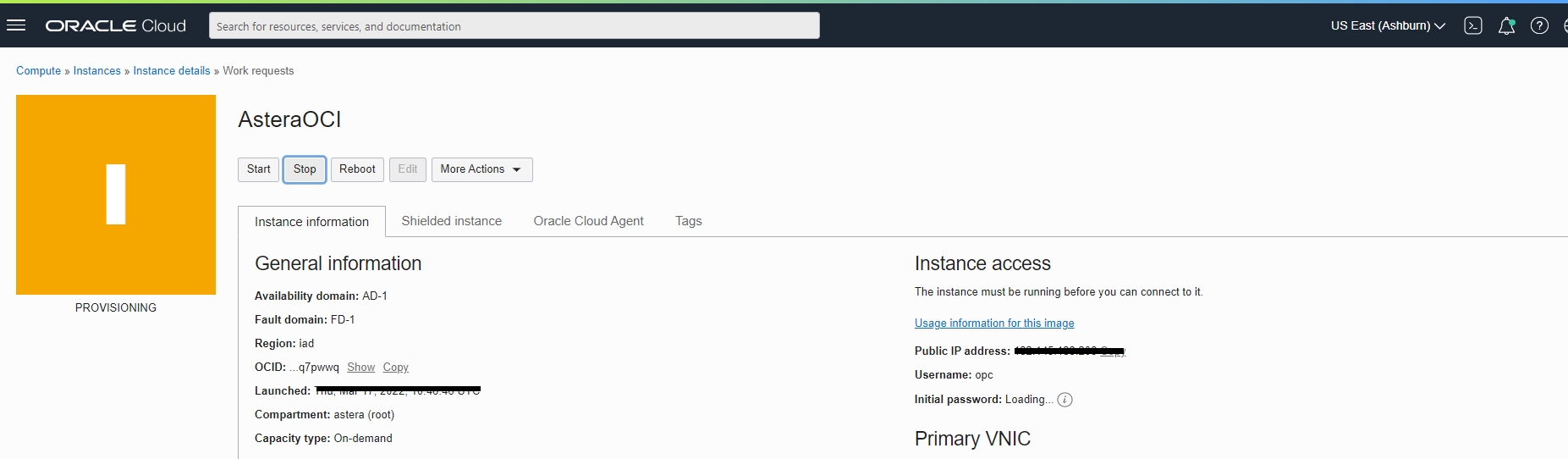

It will now start to create the Virtual Machine.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/xwrKOPT6fata8kqO8up4/19.png)

{% hint style="info" %}
**Note:** It can take 5 to 10 minutes for creation.
{% endhint %}

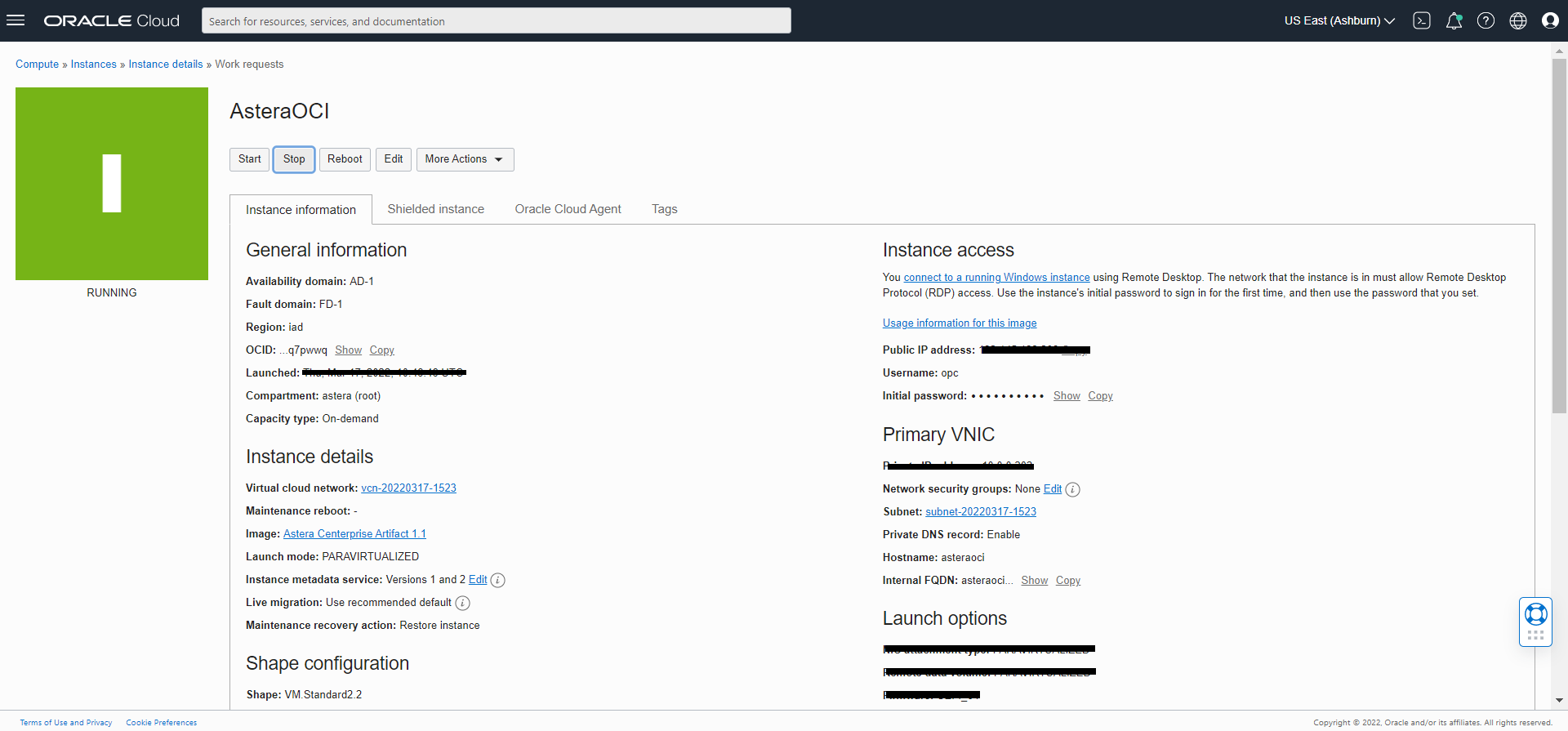

13. The Virtual Machine has been created. You can now use the remote desktop connection to connect to it. The credentials are generated once the machine is created.

![20-Created-Oracle](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/07m5qptL5BGfpHlnzQT2/20.png)

Once connected with the machine, you can install Astera Data Stack on it.

{% hint style="info" %}
**Note:** Start ‘Astera Integration Server 8’ from Services first.
{% endhint %}

### Deploying Astera Data Stack Manually

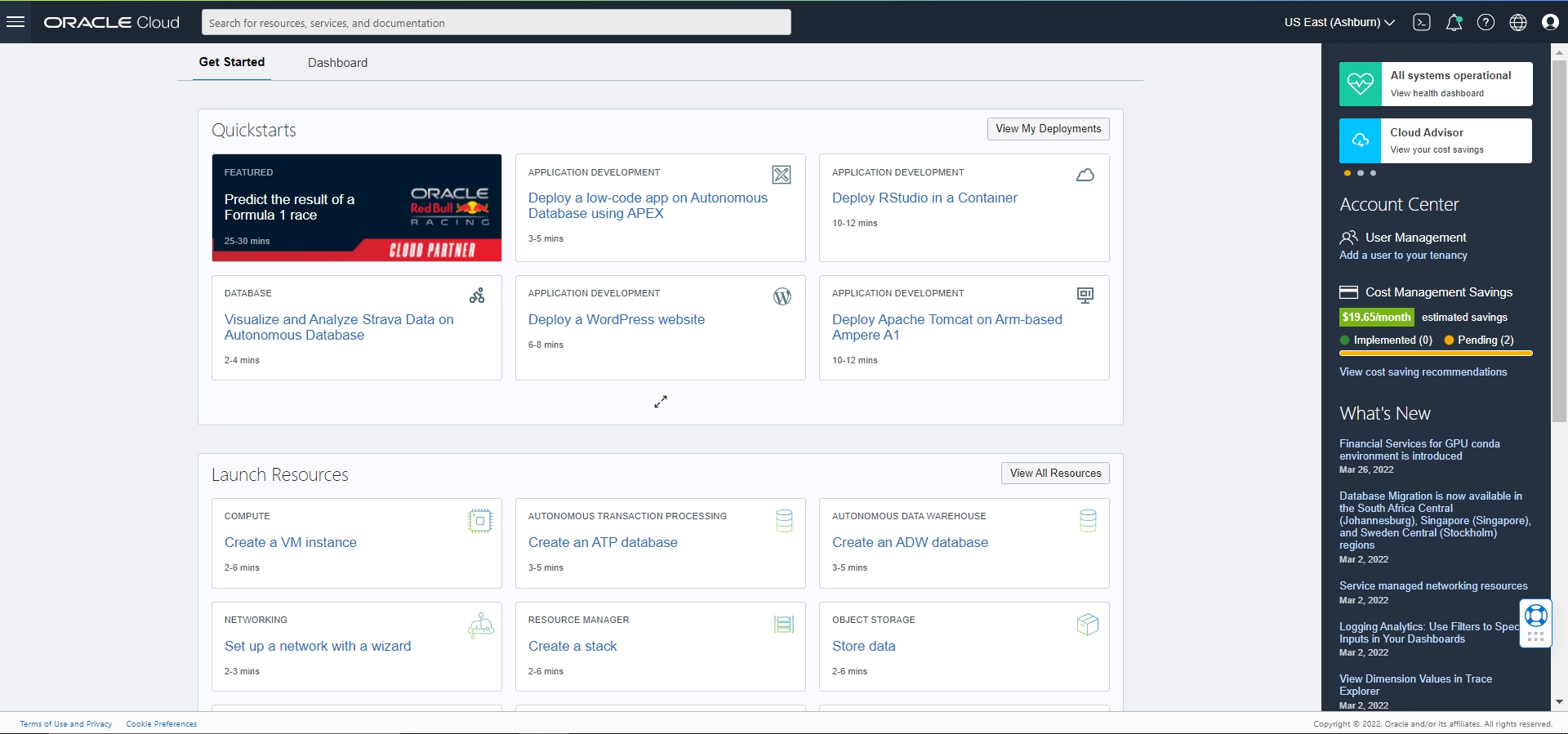

1. To start, enter the Oracle Cloud login page and sign in. Once you are signed in, a new screen will appear.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/Nd3Peg6EviunUFCoQilX/21.png)

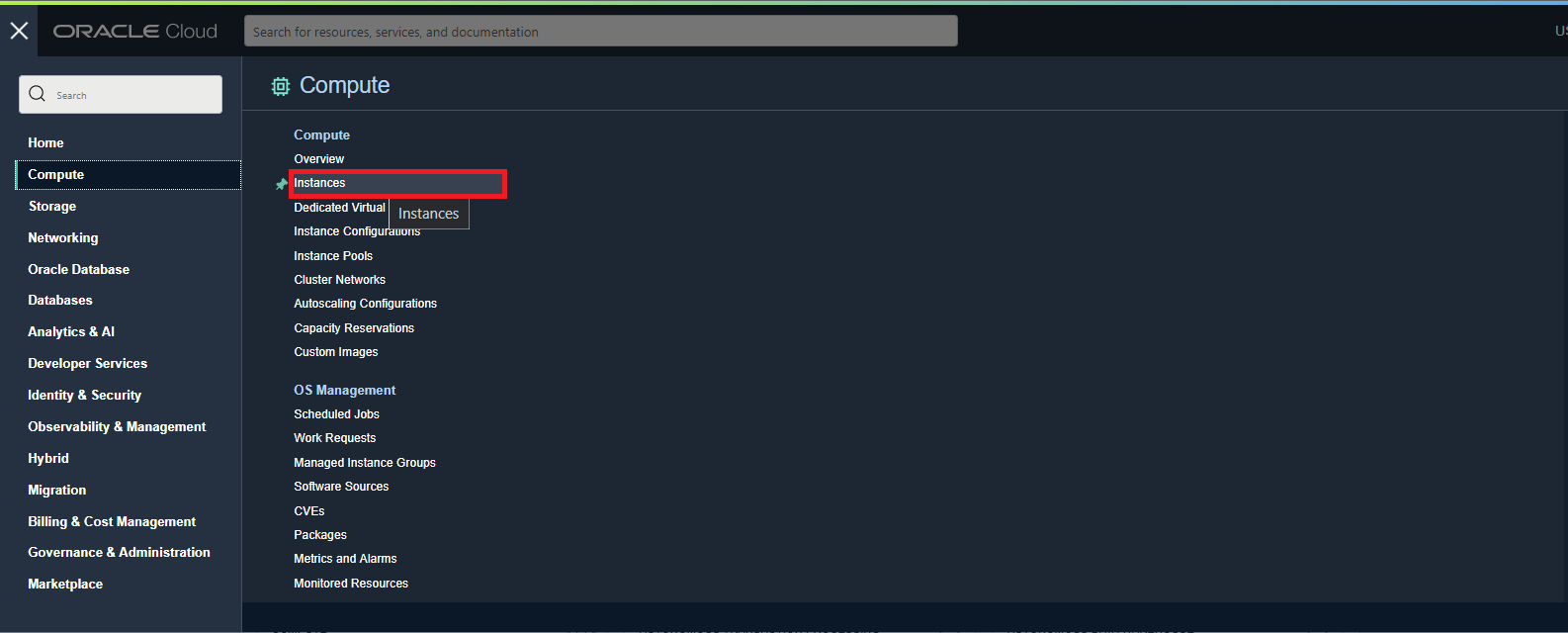

2. Click on the three lines next to the search bar located at the top, select *Compute*, and then click *Instances*.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/kzPRS8rPECeoDUqwyjVv/22.png)

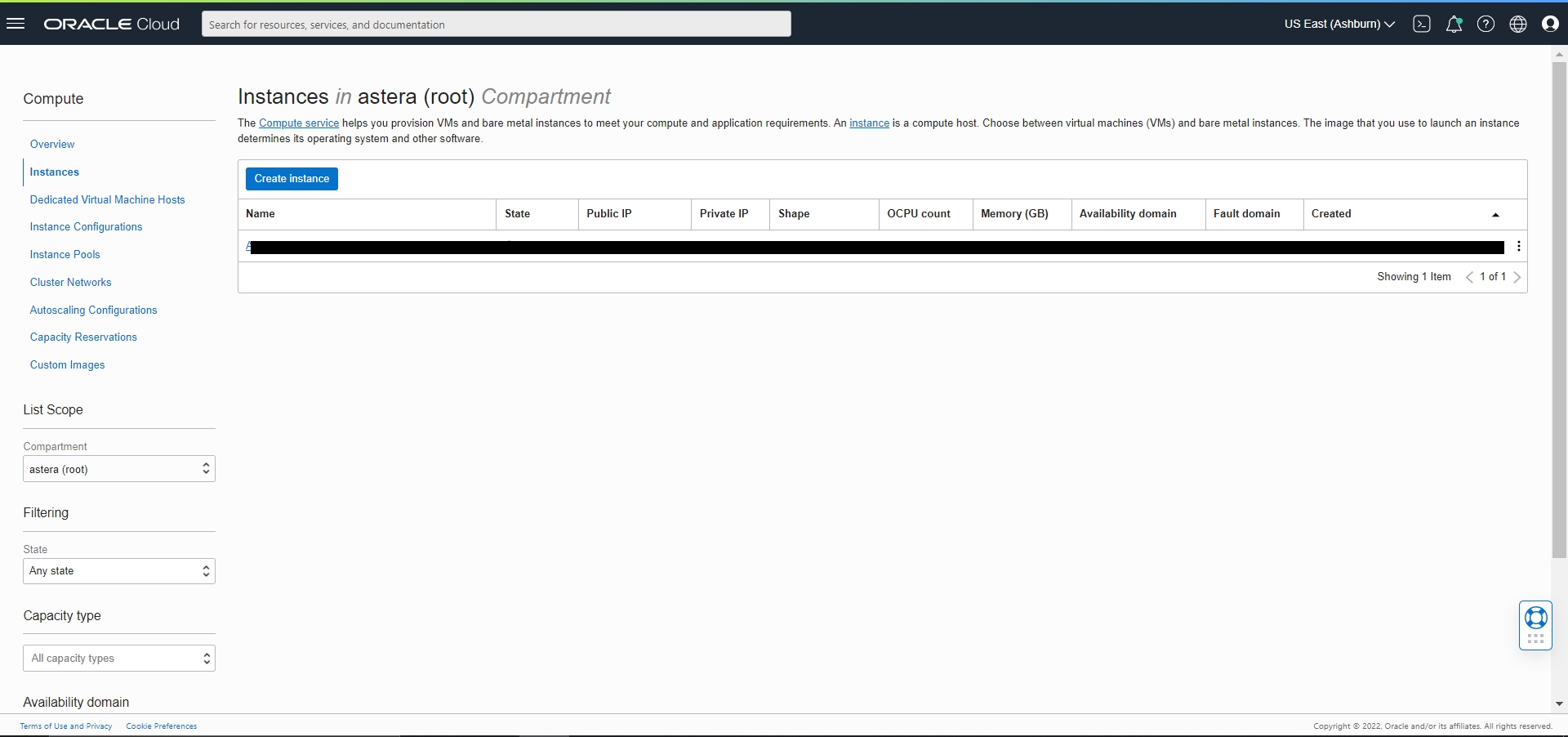

A new window will open.

Here, you can add a new instance or use an existing one.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/i4tDy7vS2lnrBEu2LDl4/23.png)

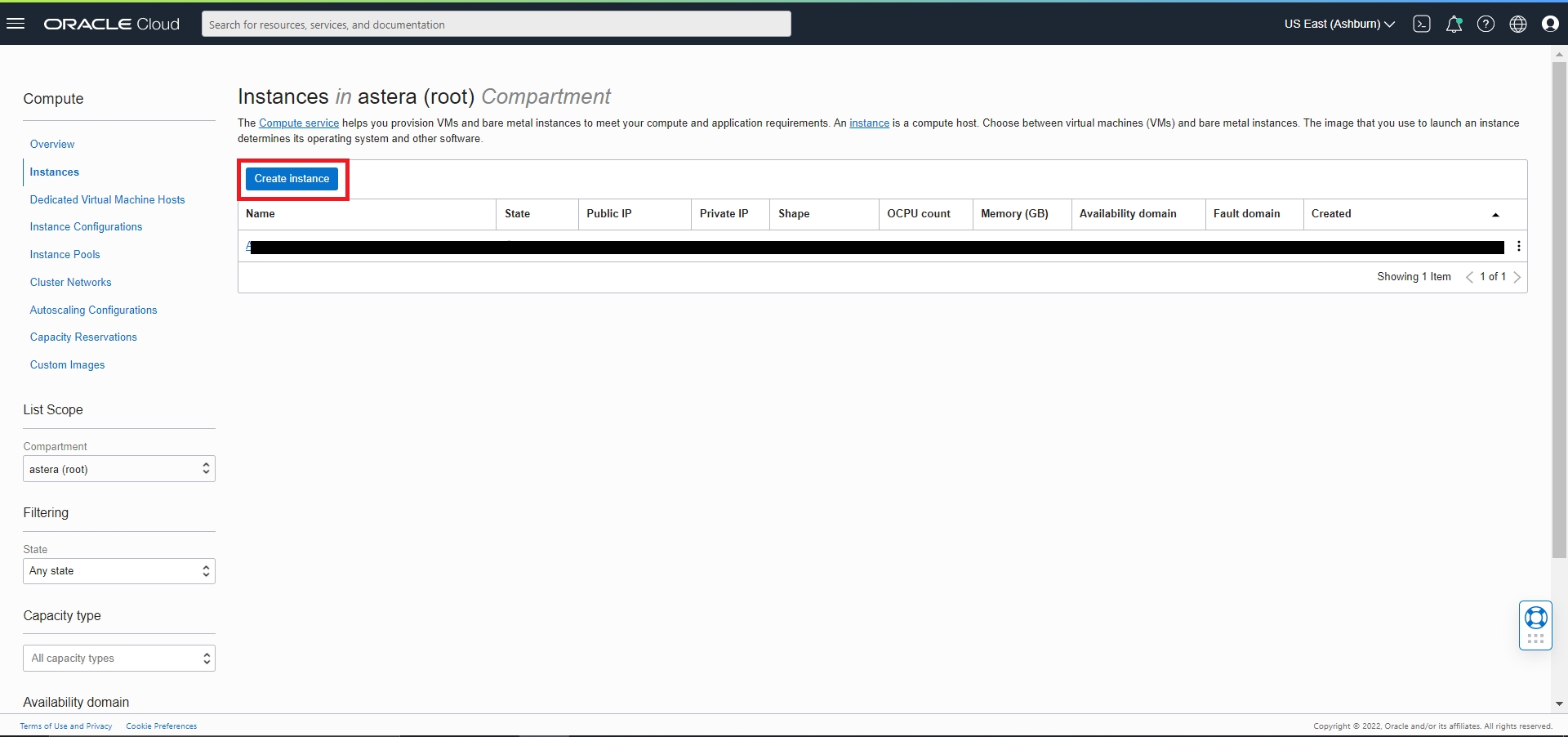

3. Select the *Compartment* as “astera (roots)” and select *Create Instance*

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/D0vE4ejbjXTNNAzE9c8z/24.png)

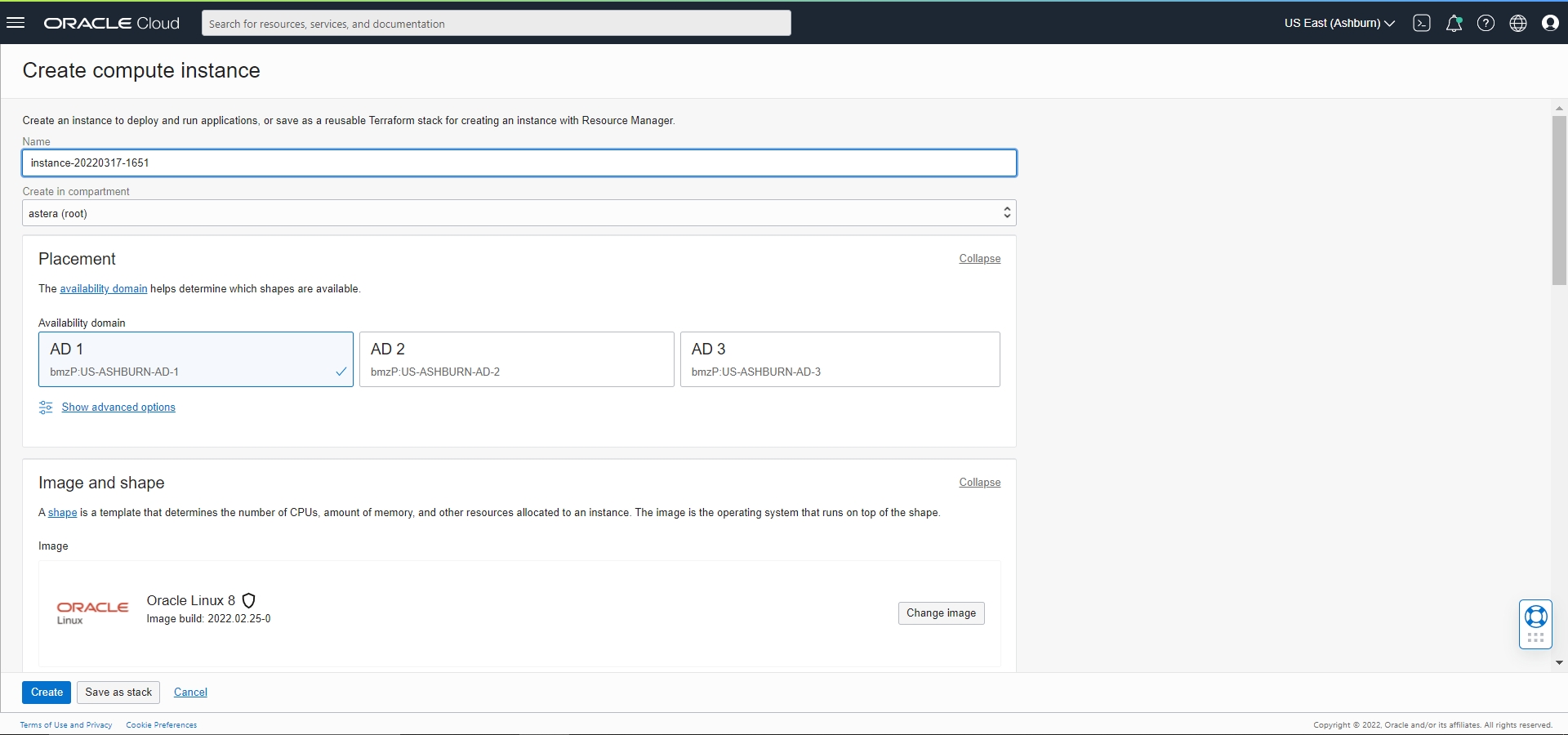

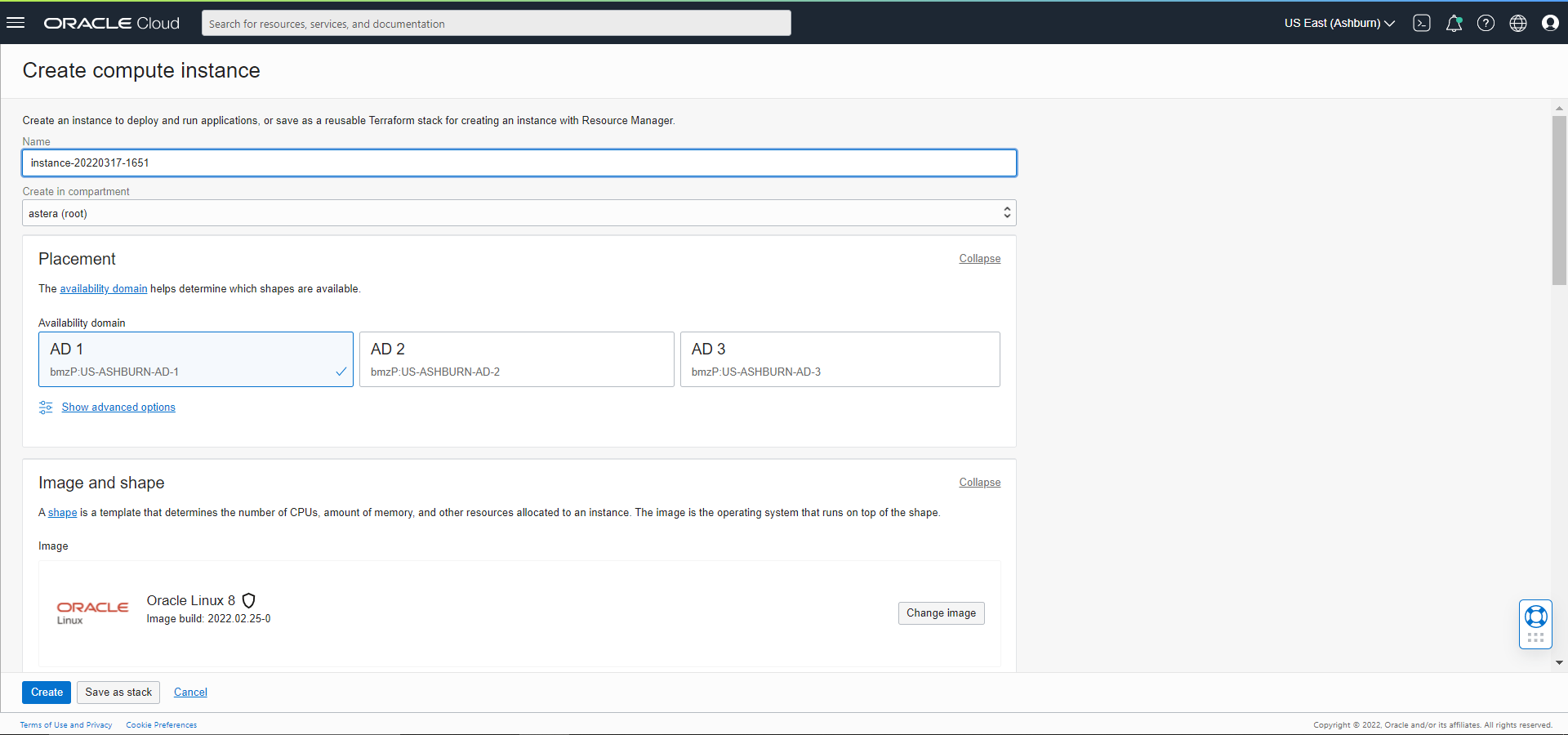

Here, we see a screen like the one in the previous method.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/QnhMtH128012U6H19Cxe/25.png)

4. Write a name of your choice, select the *compartment* as *astera (roots)*, and select default placement.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/HL8GuiUkpTfcZ9ywYGgk/26.png)

5. The next section is the *Image* and *Shape* section.

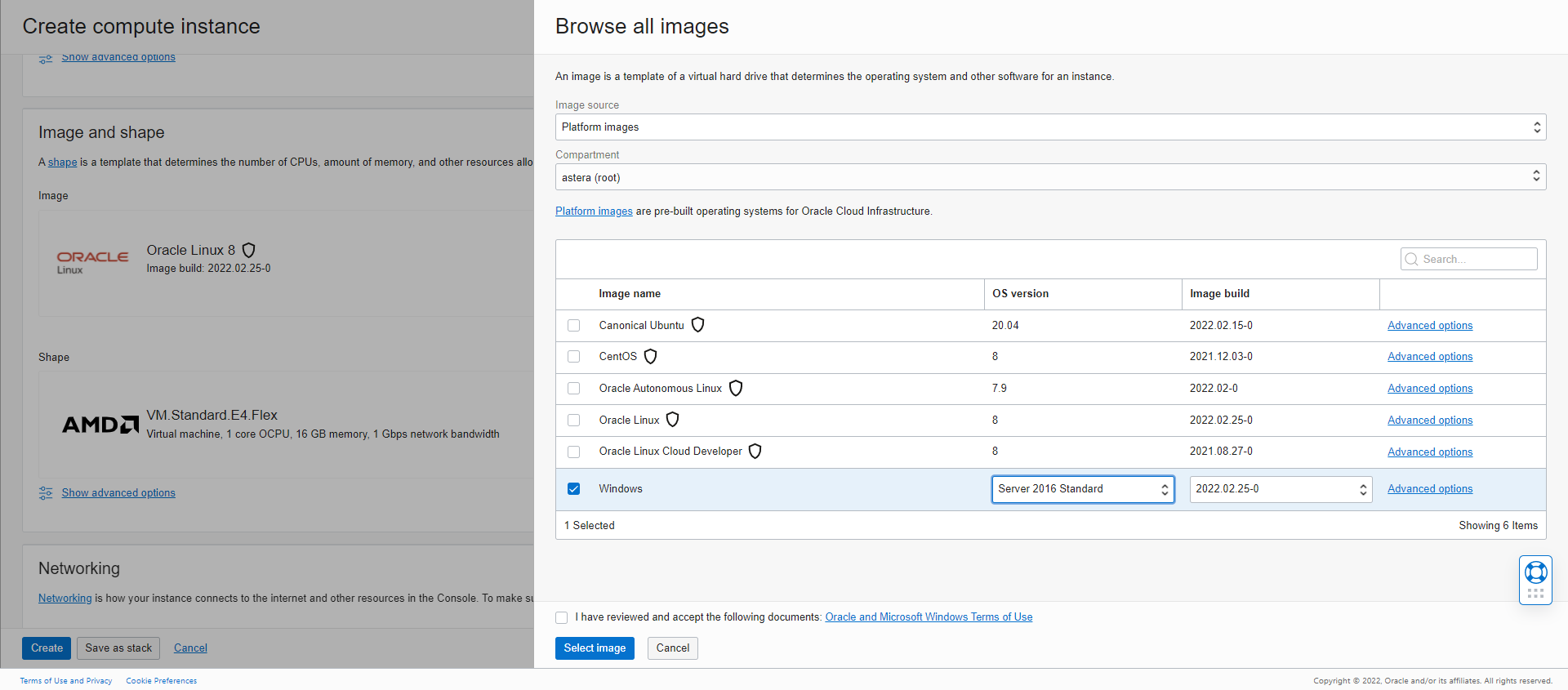

For *Image*, we will select *Windows Server 2016 Standard,*

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/zdL9yzxsufovegShzLsK/27.png)

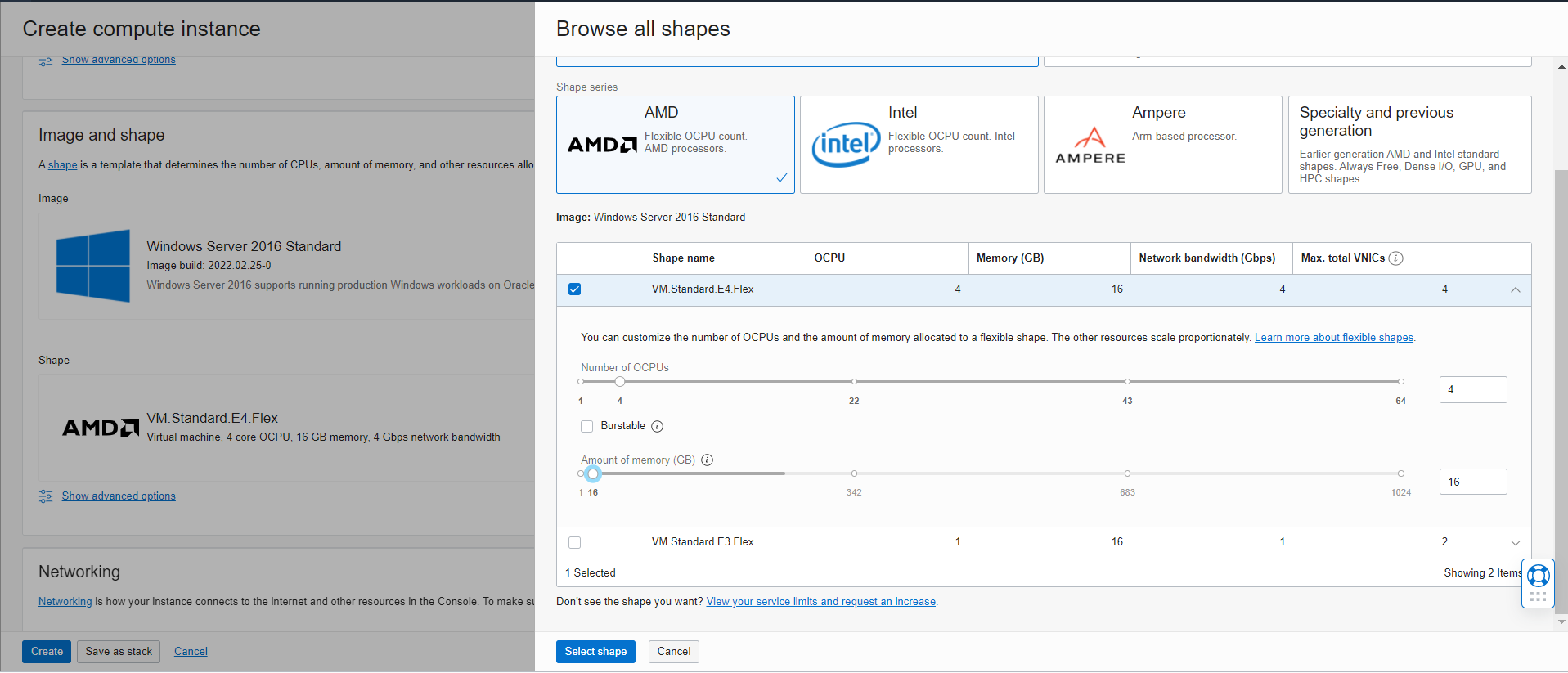

6. Select *Image* and head to the *Shape* option.

We have selected 4 OCPUs and 16 GB memory.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/YeSyFNQ8uiMGCtbPNXjw/28.png)

7. Select *Shape* and head to the next option.

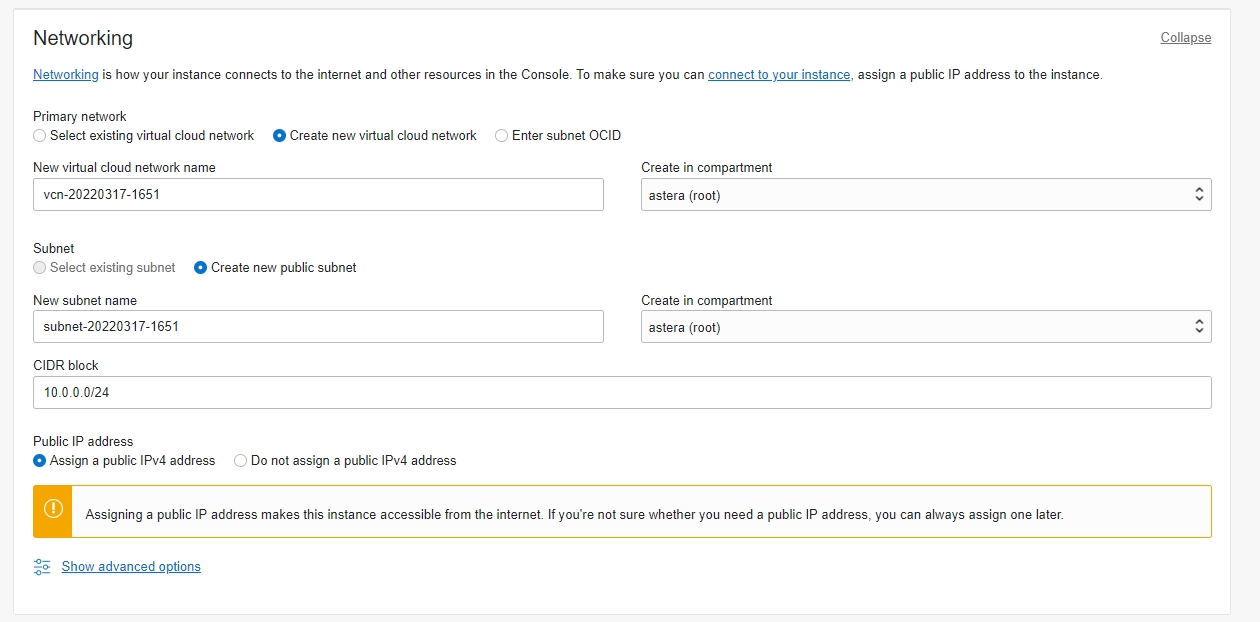

The networking options will remain set as default.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/6QuVQUOJdhZw9RCKKWEI/29.png)

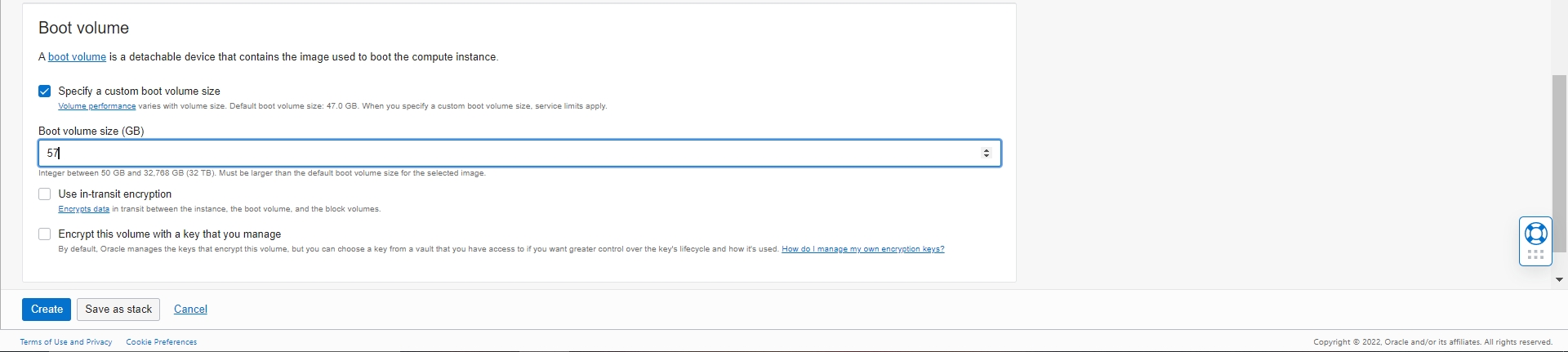

8. Scroll to the *Boot Volume* section and select *Specify a custom boot volume size*.

We are keeping it at 60GB.

![](https://content.gitbook.com/content/zEifS4h8yurLAAwiGNX2/blobs/eyTfWZM4RNLsO5ZYxtDz/30.png)

9. Once done, Click *Create* and it will start to create the Virtual Machine.

{% hint style="info" %}
**Note:** With Oracle Cloud, the user also must install the SQL Server alongside since it does not offer it by default.
{% endhint %}

To learn more about the installation of a SQL database and configuration of an SQL server, click [here](https://docs.microsoft.com/en-us/sql/database-engine/install-windows/install-sql-server?view=sql-server-ver15).

To learn more about the installation of Astera, click [here](https://documentation.astera.com/setting-up/on-prem/installing-client-and-server-applications).

This concludes our discussion on the deployment of Astera Data Stack on Oracle Cloud, both through the Oracle Cloud Marketplace and Manually.
